CVM-B150-ITF-HF
7�8�- MBUS COMMUNICATIONS MODULE
The MBus communications module, M-CVM-AB-MBus, enables communicating the CVM-B150 with a
M-Bus network.
7�8�1�- CONNECTION TERMINALS
7�8�2�- CONNECTION DIAGRAM
Instruction Manual
Table 146: List of terminals, MBus communications module�
Connection terminals
1, 4: MBus +
2, 5: MBus -
2
1

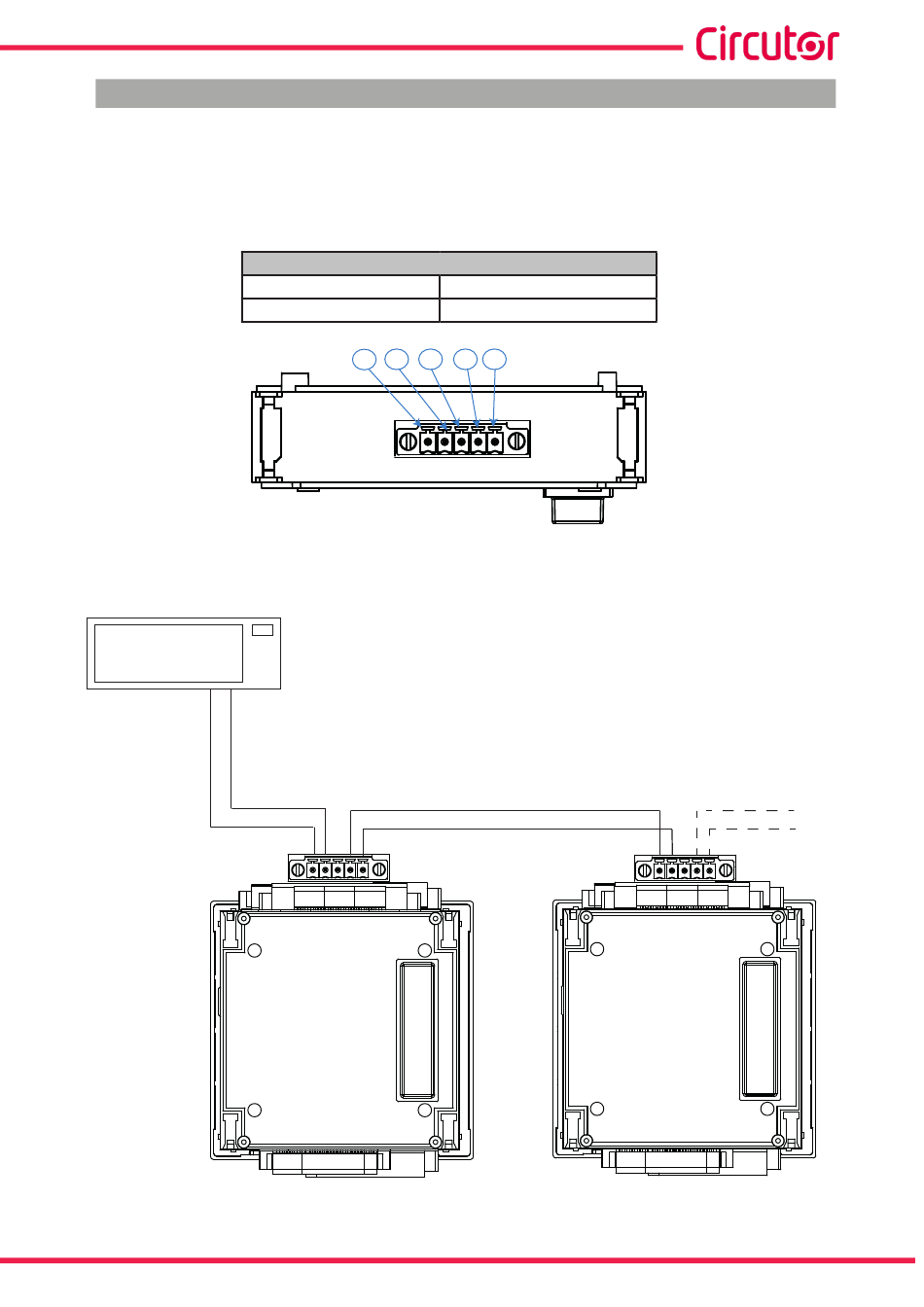

Figure 305: MBus communications module terminals�
Red M-Bus / Network M-Bus
MBus - MBus +
MBus +
MBus -
Figure 306:Connection diagram, MBus�
3: Not use
4 5
3
MBus + MBus +
MBus - MBus -
265
