1.- VERIFICATION UPON RECEPTION
Check the following points upon receiving the device:
a) The device meets the specifications described in your order.
b) The device has not suffered any damage during transport.
c) Perform an external visual inspection of the device prior to switching it on.
d) Check that it has been delivered with the following:

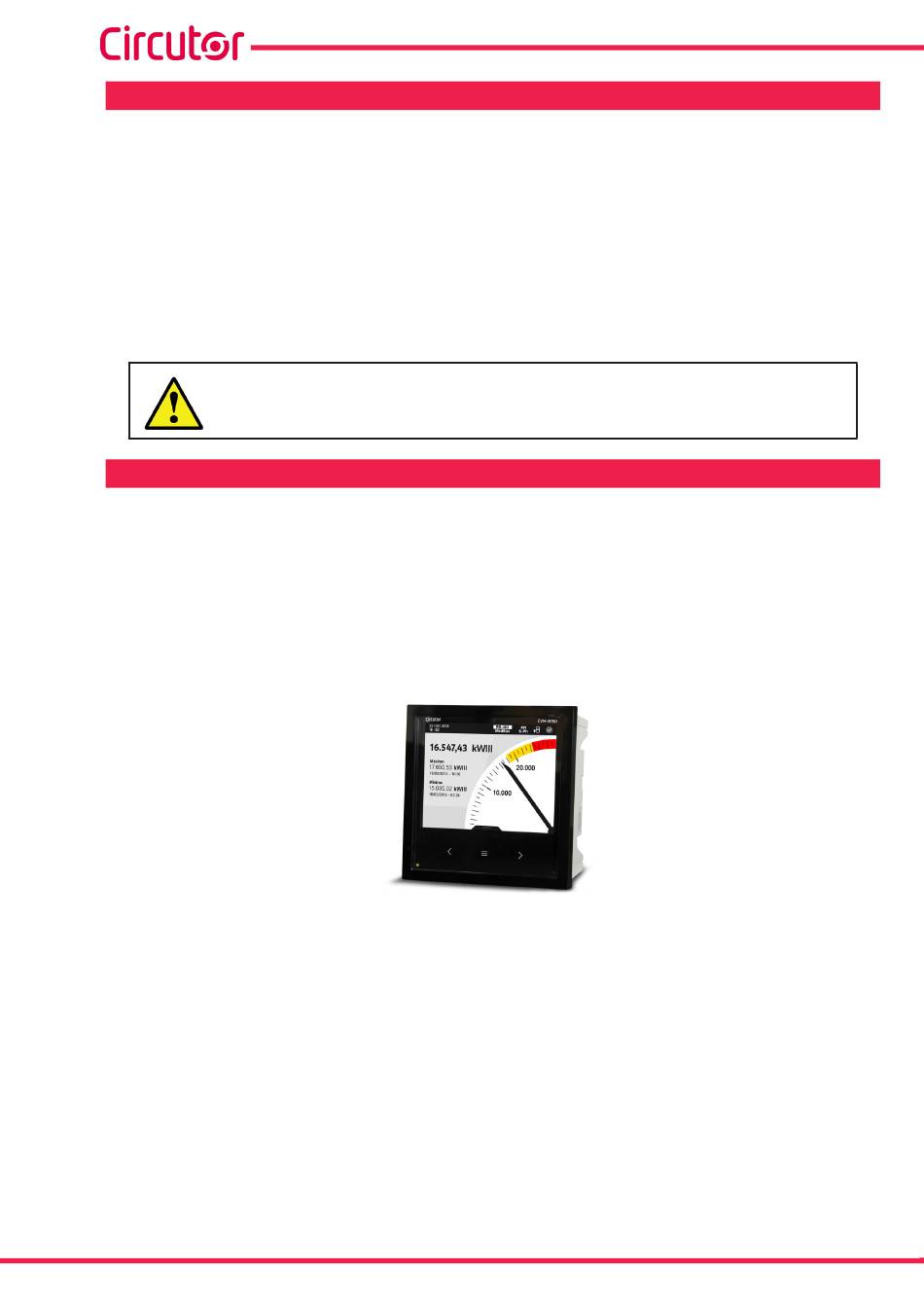

2.- PRODUCT DESCRIPTION
The CVM-B150 device measures, calculates and displays the main electrical parameters in single-phase
networks, with and without neutral two-phase networks, balanced three-phase networks, with ARON
measurement or unbalanced networks. The measurement is taken in RMS, via four AC voltage inputs
and four current inputs.
The current measurement is taken indirectly with transformers /5 or /1.
It is a modular device that can be expanded using expansion modules with different functions.
The device features:
- 3 keys that allow you to browse between the various screens and program the device.
- 3 indicator LEDs: CPU, ALARM and on the navigation keys.
- LCD Display, for displaying all parameters.
- 2 digital inputs, to select the tariff, detect the logic state of external signals or as act as an
impulse input.
- 2 transistor digital outputs, fully programmable.
- 2 relay digital outputs, fully programmable.
- RS-485 communications, with two serial protocols: MODBUS RTU ® and BACnet.
8
- An installation guide,
- 4 Retainers used to attach the device,
- 5 plug-in connectors with screws,
- 1 seal,
If any problem is noticed upon reception, immediately contact the transport com-
pany and/or CIRCUTOR's after-sales service.
