CVM-B150-ITF-HF

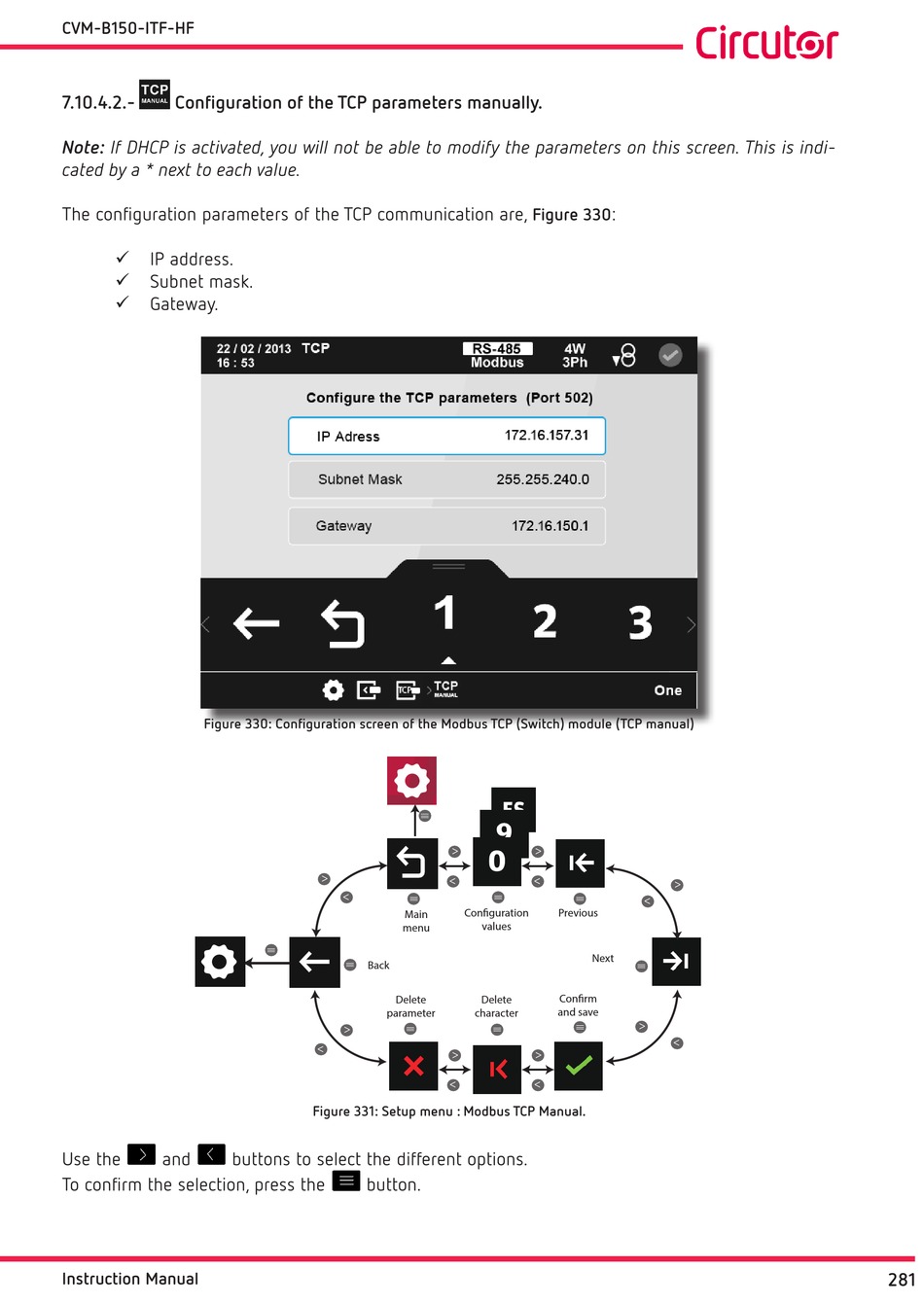

7�10�4�2�- Configuration of the TCP parameters manually�
Note: If DHCP is activated, you will not be able to modify the parameters on this screen. This is indi-
cated by a * next to each value.
The configuration parameters of the TCP communication are,
IP address.

Subnet mask.

Gateway.

Figure 330: Configuration screen of the Modbus TCP (Switch) module (TCP manual)
1
Use the and buttons to select the different options.
To confirm the selection, press the
Instruction Manual
>
>
<
<
Con guration
Main
values
menu
Back
Delete Delete
parameter character
>
<
>
<
Figure 331: Setup menu : Modbus TCP Manual�
button.
:
Figure 330
>
<
>
<
Previous
Next
Con rm
and save
>
<
>
<
