5�1�1�1�1�1�1�- Graphic view
shows the graphical display screen.
Figure 40

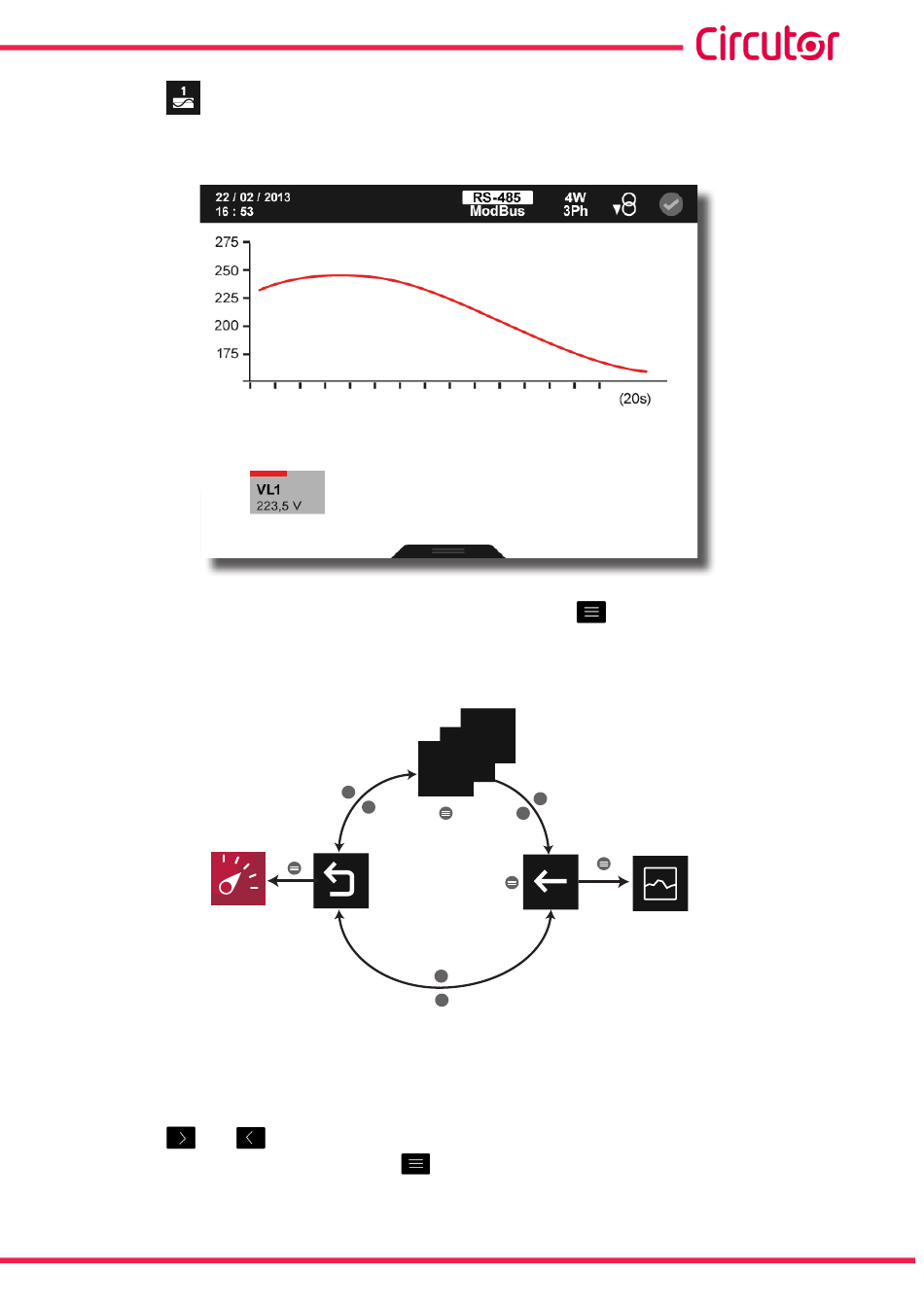

Figure 40: Instantaneous parameters, graphic view (displays 1 parameter)�
The menu in the lower area disappears after 3 seconds. Press the
again.
The lower area menu options are:
The graph display time (X-axis) can be set to 20, 60 or 300 seconds
Note: The option selected is not displayed on the menu.
Use the keys and
To access the option selected press the key
Instruction Manual
8
20s
1
>
<
Display time
Main
menu
>
<
Figure 41: Graphic view menu�
to browse the different options.
.
key to display the lower area
300s
60s
>
<
varh
Back
