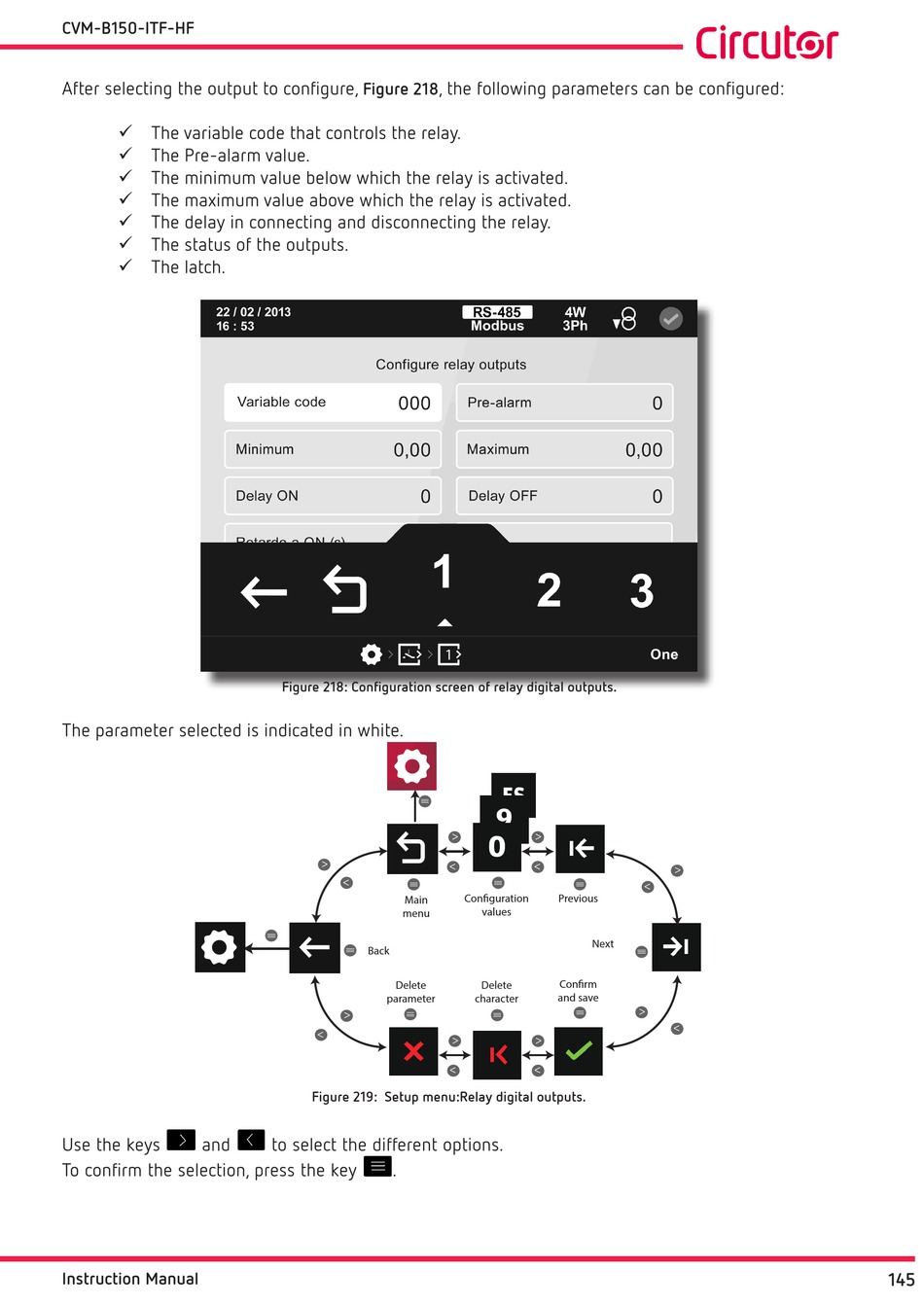

Circutor CVM-B150-ITF-HF Instruction Manual page 145

CVM-B150-ITF-HF
After selecting the output to configure,
 The variable code that controls the relay.
 The Pre-alarm value.
 The minimum value below which the relay is activated.
 The maximum value above which the relay is activated.
 The delay in connecting and disconnecting the relay.
 The status of the outputs.
 The latch.
The parameter selected is indicated in white.
1
Use the keys and
To confirm the selection, press the key
Instruction Manual
, the following parameters can be configured:
Figure 218
Figure 218: Configuration screen of relay digital outputs�
>
<
Main
menu
Back
Delete
parameter
>
<
Figure 219: Setup menu:Relay digital outputs�
to select the different options.
.
> >
< <
Con guration Previous
values
Next
Con rm
Delete
and save
character
> >
< <
>
<
>
<
