c. There may already be mechanical hoses configured within this FMU. Ensure there are enough
hose positions remaining to configure the desired electronic hoses, then click on Add. A Hose
window will open. Initially it will be preceded with [NEW], and the letter for the next available
Pump position will be displayed.
Two different PIE entries are required: one in the Hose window for the fueling position, and one in the
Grade Positions window. The entry in the Hose window may be set to any number from 1 to 32. The entry
in the Grade Positions window may be set to any number from 1 to 8.
d. Click in the circle to the left of MPD. The Hose position and Div Ratio will be grayed out, and the
PIE box will open to accept an entry. The UI (unit of issue) box will show ERR as there may be
several Grade Positions configured for each Pump position. To view the unit of issue for the
selected product, refer back to the Tables>Products>Product List.
e. In the box to the right of PIE, enter a number which corresponds to the fueling position address to
be configured. The number may be any number from 1 to 32.
d. After selecting MPD, click on the Configure button. A Fuelmaster
prompt "Information will be saved...continue?". To continue, click on the Yes button. A Grade
Positions window will open.
e. Up to 8 Grade Positions may be configured for each Pump position. In the Grade Positions
window, starting with position (Pos) 1, select the Tank for the first Grade Position. Only the tanks
Installation Manual
®
NOTE

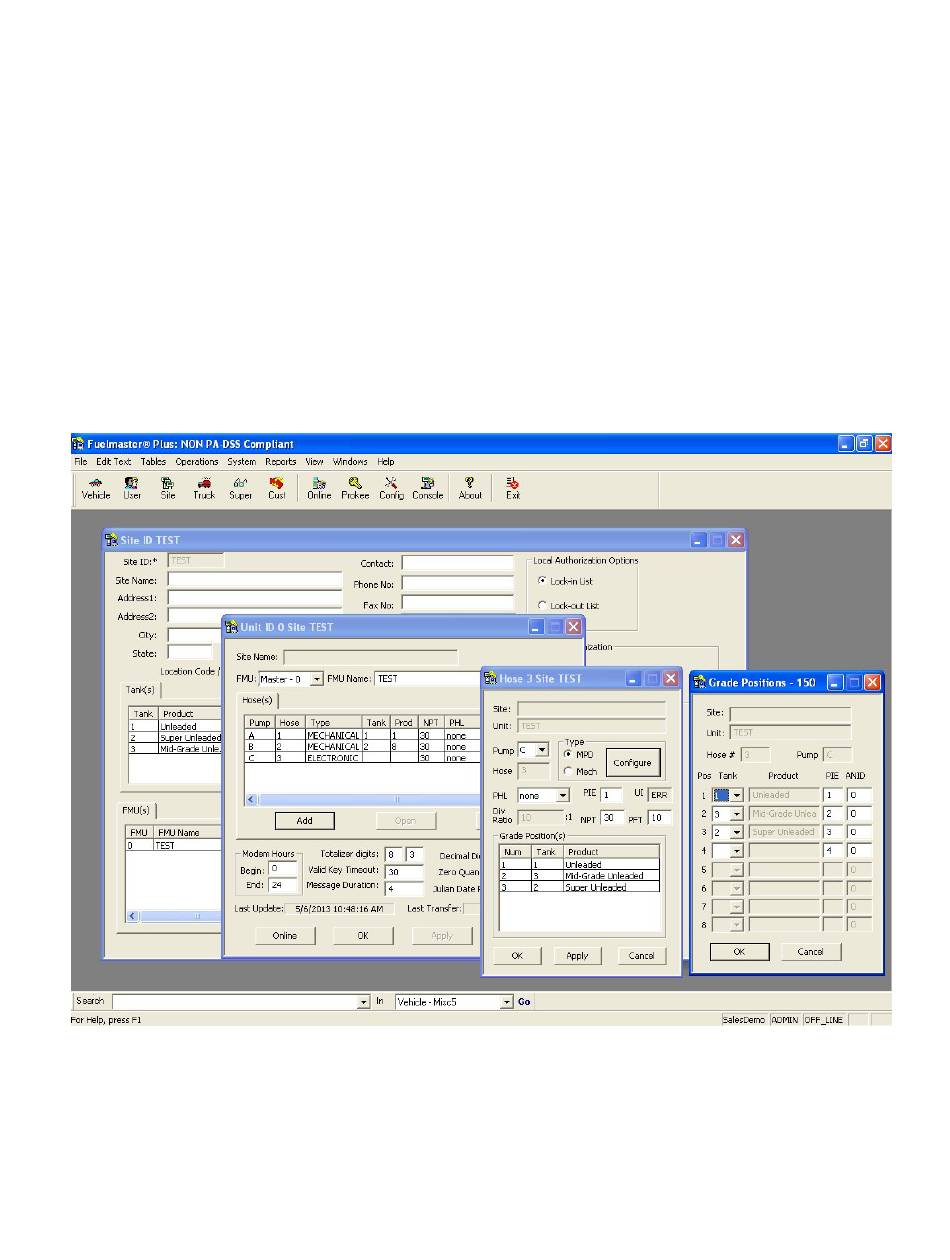

Figure H-9. Adding an Electronic Hose
190
Plus window will open and
®
