Note: the part number 221813 I/O Silver Board will work with both the Electronic
Dispenser Interface and the Indoor Receipt Printer. The 203610 or 203629 I/O Silver
Board will work with the Indoor Receipt Printer, but not the Electronic Dispenser
Interface.
FuelMaster
®

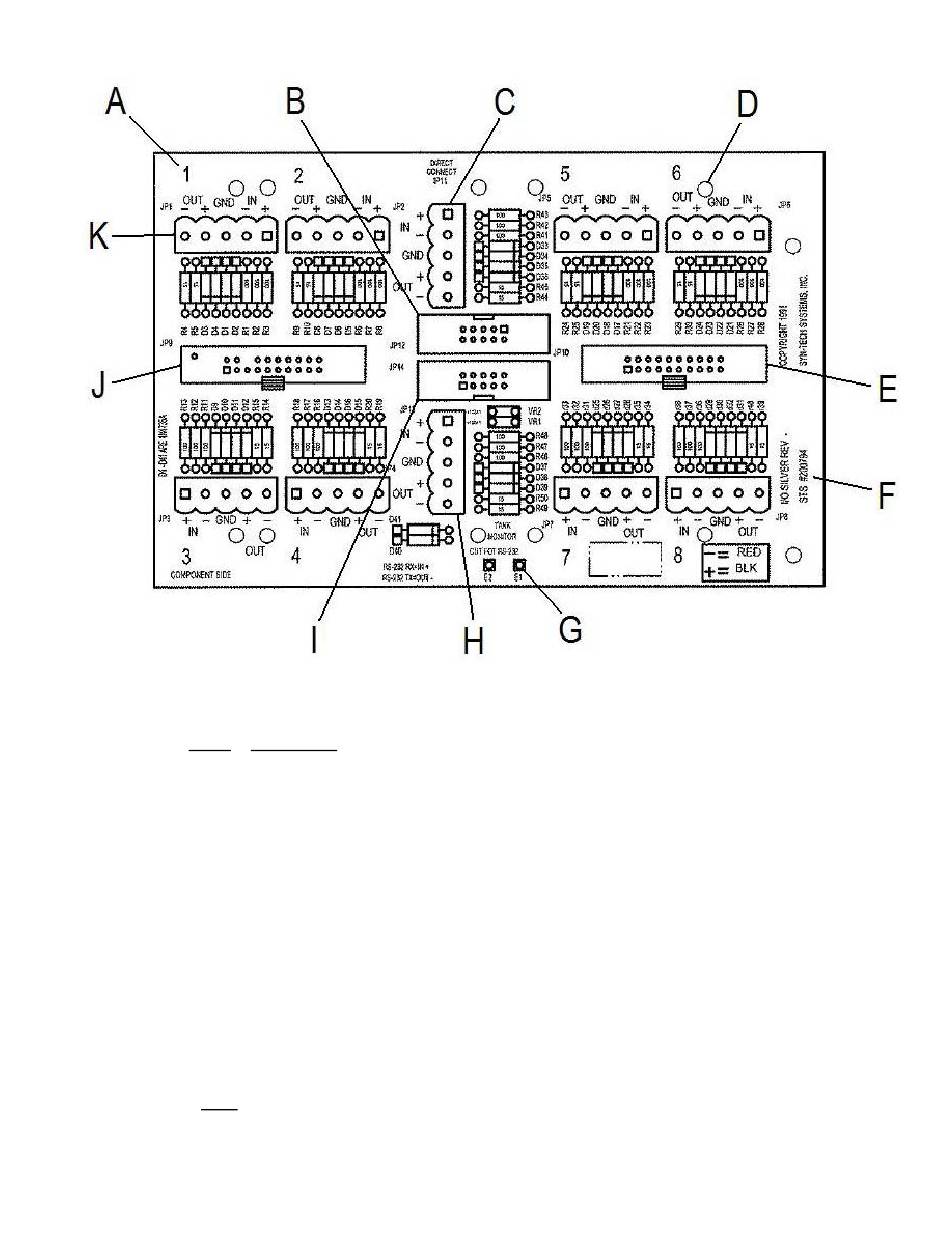

Figure 4-27. I/O Silver Board

Description
Satellite Position Number
Electronic Dispenser Interface or Indoor Receipt Printer Ribbon Cable
Connector, JP12 (see Note)
Electronic Dispenser Interface or Indoor Receipt Printer RS-232 Connector,
JP11 (see Note)
Attach Screws Over Standoffs (6 places)
Satellite Ribbon Cable Connector for Satellites 5-8, JP10
Board Part Number and Revision Level Marking
Cut E1-E2 Trace for RS-232 (Do Not Cut for RS-422)
Tank Monitor RS-232/RS-422 Cable Connector, JP13
Tank Monitor Ribbon Cable Connector, JP14
Satellite Ribbon Cable Connector for Satellites 1-4, JP9
Satellite RS-422 Connector, JP1-JP8 (8 places)
