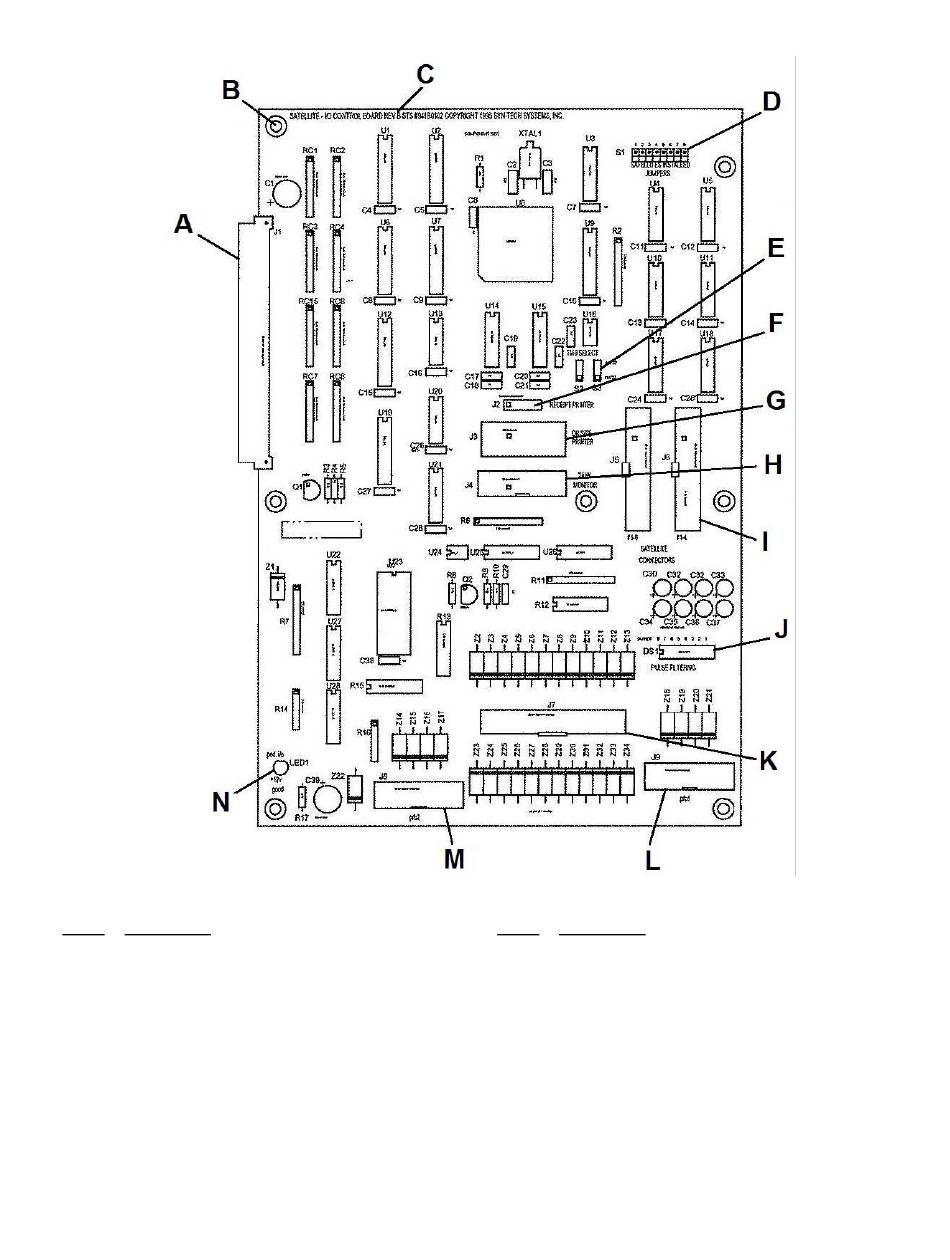

Figure 4-28. Satellite I/O Control Board - Syn-Tech Systems FuelMaster FMU-2500 Classic Installation Manual

Index Description
A Mainboard Connector (J1)
B Attach Screws (7 places)
C Board Revision Level
D SATELLITES INSTALLED JUMPERS (S1)
E TMU SELECT JUMPERS (S2/S3)
F RECEIPT PRINTER (J2)
G ON SITE PRINTER (J3)
FuelMaster
®

Figure 4-28. Satellite I/O Control Board

Installation Manual
Index Description
H TANK MONITOR (J4)
I SATELLITE CONNECTORS (J5/J6)
J PULSE FILTERING (DS1)
K Ribbon cable to Pedestal I/O Board (J7)
L Ribbon cable to Relay Assy 1 (PRB1)
M Ribbon cable to Relay Assy 2 (PRB2)
N +12V GOOD (LED1)
102
