FuelMaster Installation Manual
®
European Certification
There are significant differences between a U.S. certified FMU and a European (CE) certified FMU. The
CE unit has a transformer mounted in a "backpack" housing on the back of the FMU pedestal which
converts 230 VAC, 50 Hz power to 110 VAC, 60 Hz. In addition, other components are configured
differently to comply with European standards.

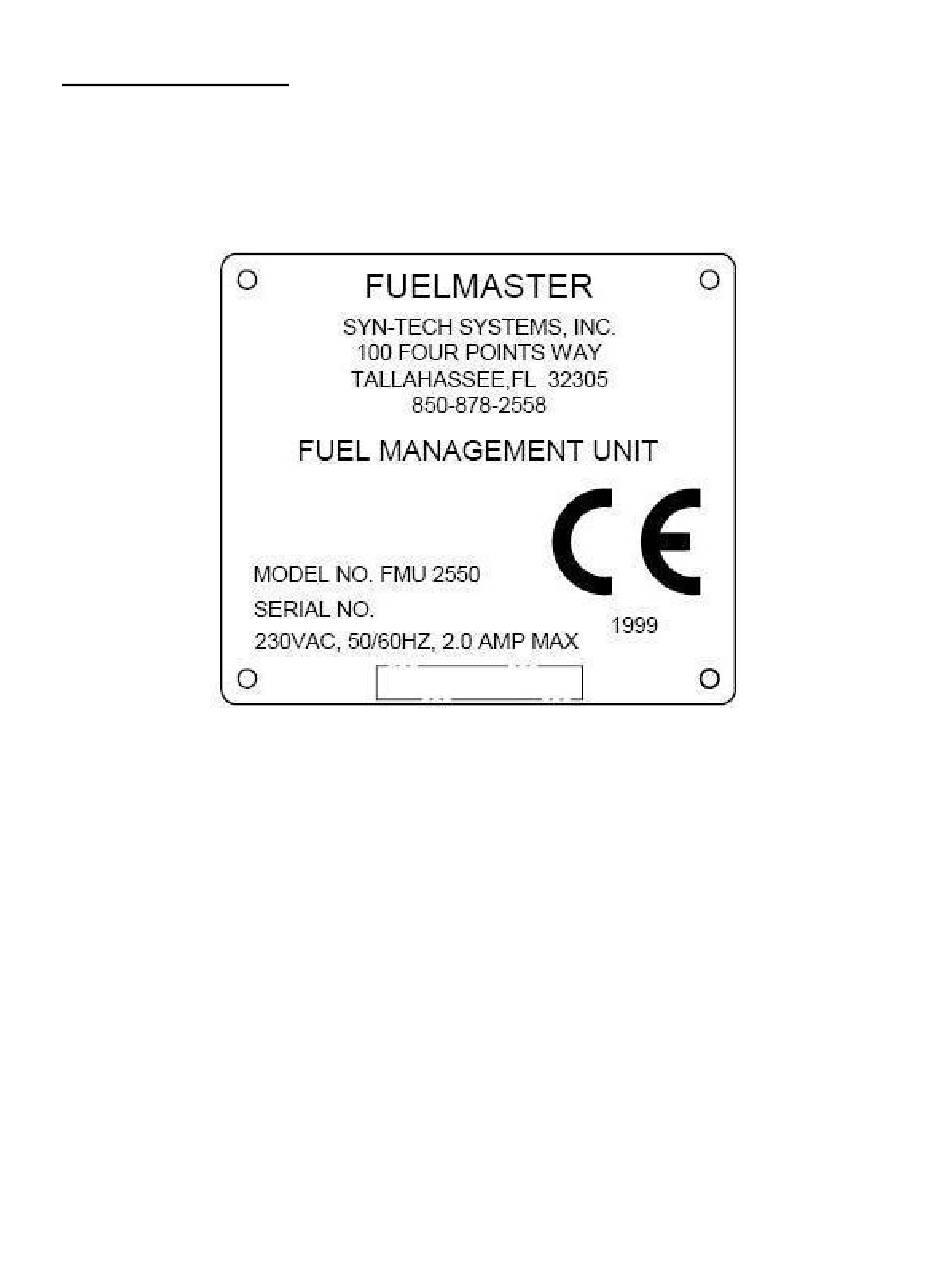

A European certified FMU can be identified by an ID plate with a CE stamp, as shown in Figure 2.
Figure 2. European Certification Identification
The FMU is fully assembled for testing at Syn-Tech's assembly facility, then disassembled for shipment.
The transformer is disconnected and removed. It must be reassembled during FMU assembly. Detailed
assembly procedures may be found in Product Bulletin 129.
178
