FuelMaster Installation Manual
®
Appendix F
Wiring Differences for
Canadian and European Certified FMUs
Fuel Management Units (FMUs) manufactured for use in Canada and Europe are configured differently
than FMUs designed for U.S. operation. Syn-Tech researched the requirements for Canadian and
European certification, designed and manufactured the required equipment, then subjected FuelMaster
®
to tests necessary to achieve certification. Should you need an FMU for installation in Canada or Europe,
be sure you specify your needs when placing your order as there are equipment differences. Skilled
inspectors in Canada or Europe will reject equipment not correctly identified for the application.
Canadian Certification
The basic differences with the Canadian certified FMU are the French translation labels added to the
surge protection panel and upper cover plate for the pedestal electrical access. French translations are
also incorporated into the WARNINGS and CAUTIONS in this manual. In addition, the existing DB25
connectors and pins for the standard 25 and 50 foot transaction printer cables were not acceptable for
Canadian use, so any transaction printer cables supplied with Canadian certified FMUs will have a
different DB25 connector and pin configuration.

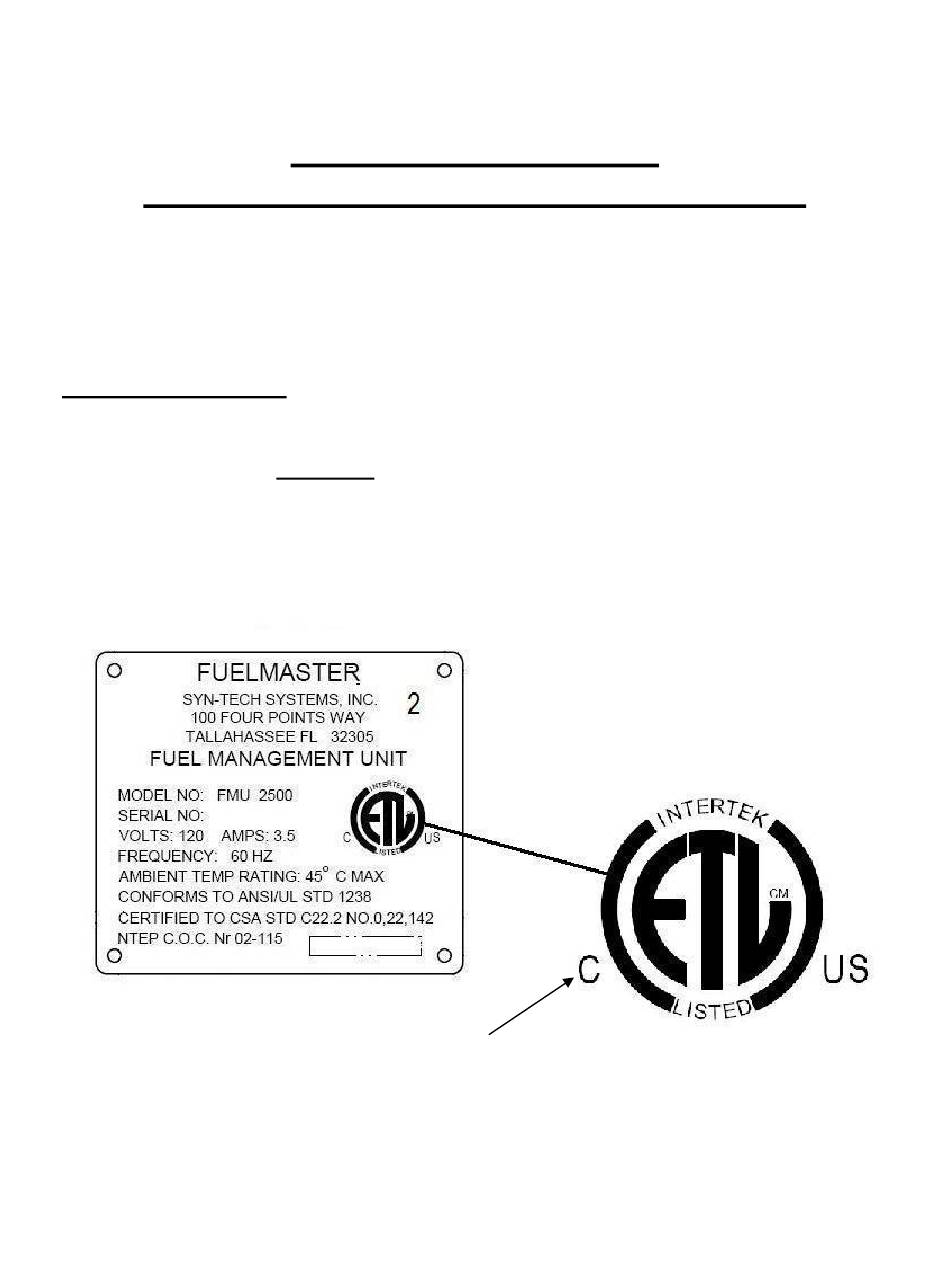

The ID plate has a C stamp on it to identify Canadian certification, as shown below in Figure 1.
C Stamp
Figure 1. Canadian Certification Identification
177
