FuelMaster

Installation Manual

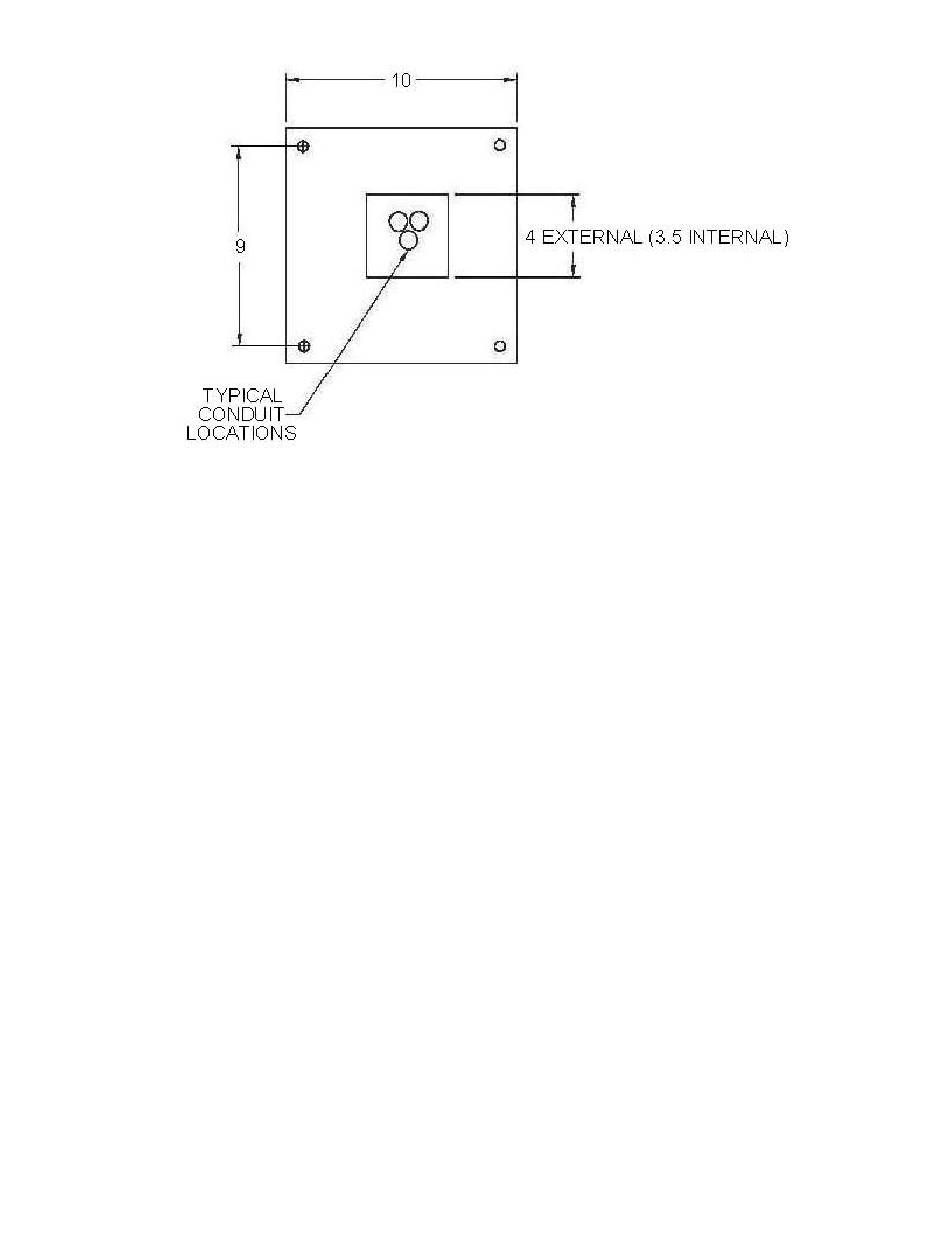

Figure 4-33. EIU Footprint

NOTE

The Pedestal is made to accept 3/8 inch screw anchors. Use of stainless steel screw anchors, nuts, and

washers will prevent corrosion and permit the pedestal to be removed and replaced, if necessary, at any

time during the life of the EIU.

2. Mark screw anchor holes for all four corners of the Pedestal.

3. Remove the Pedestal and drill screw anchor holes.

NOTE

There are no side access panels. The wires exiting from the three conduit must be routed up through the

Pedestal and out the cabinet mounting plate hole before the Pedestal is anchored.

4. Attach a pull string to the wires.

5. While repositioning the Pedestal over the conduit, pull the pull string and wires up through the

Pedestal and out the top of the Pedestal.

109
