5. Add/Configure Tanks (see Figure H-8): in the Site ID window, tanks must be present or added for
the desired unblended and blended products.
a. If the tanks are not shown in the Tank(s) box, add the tanks as recommended by the FMPlus
User Manual.
b. If any blended tanks are added, they must be identified as blended by checking on the Blended
box in the Tank ID window.
c. When the Blended box has been checked, % of Tank settings will be shown for the two
unblended tanks used to make the blended product. Pick the percentage of product, and the tank
number for the unblended tanks for the "virtual" tank to be blended from. The blend ratio is set in
the dispenser but copied here to correctly track the inventory of the blended product and its
unblended components.
d. Complete the other boxes, as needed, then click on Apply. The Tank ID window will close.
6. Add/Configure Electronic Fueling/Grade Positions: the electronic hoses (fueling/grade positions)
must be configured in the controlling FMU. Electronic hoses may be added to an FMU configured for
mechanical hoses if there are enough hose positions remaining. See Figure H-9.
a. In the Site ID window, either open or add an FMU. An existing site with an existing master FMU
can only add satellite FMUs. There may only be one master FMU per site. Changes unique to
electronic dispensers are made when the hoses are configured.
b. In the FMU(s) box, click on the FMU you wish to add the electronic hoses to, then click on Open.
The Unit ID window will open.
Installation Manual
®

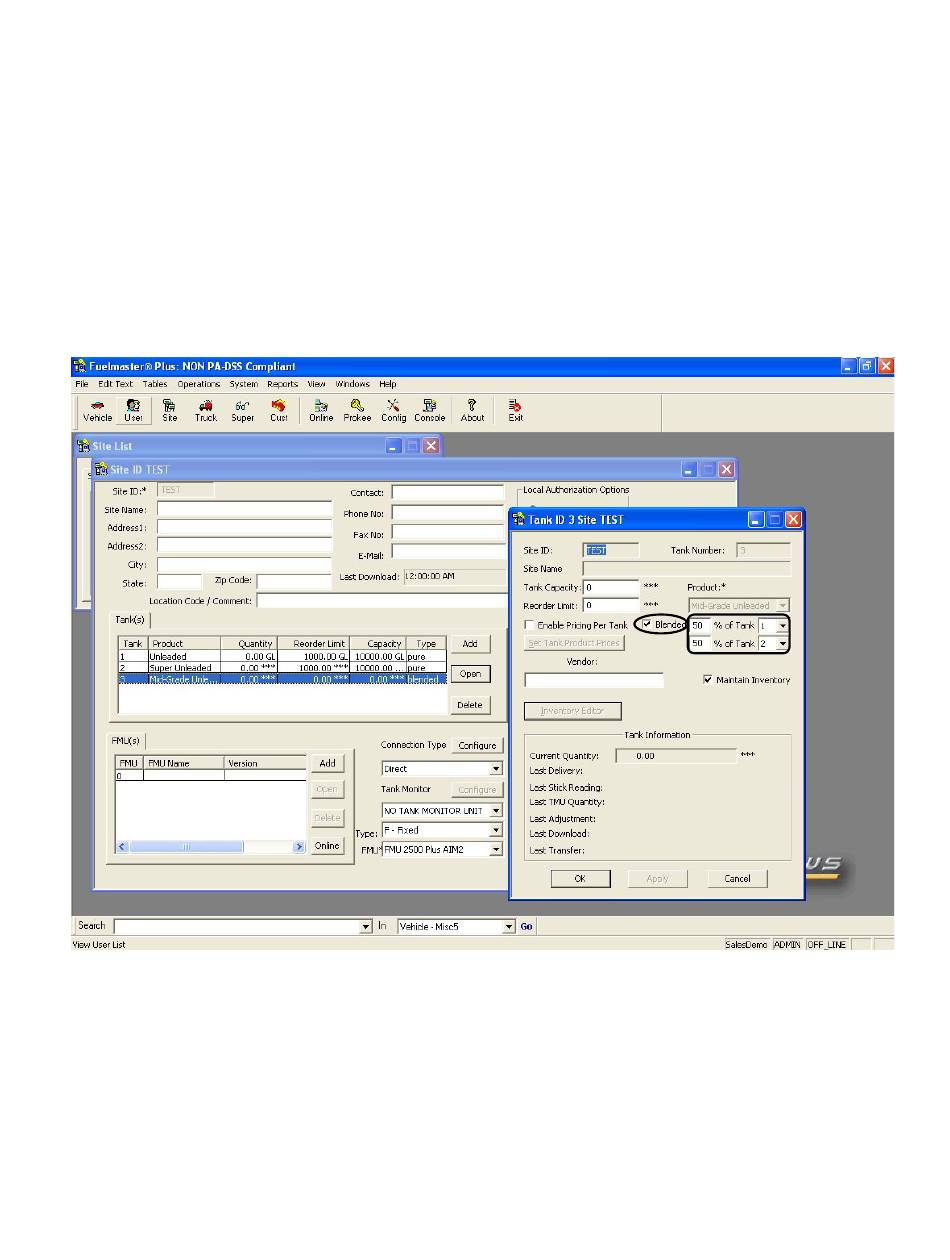

Figure H-8. Adding a Blended Tank
