FuelMaster Installation Manual
®
used, it should be specified whether the second FMU is a master or satellite, and if it has an existing I/O
Silver Board. The Electronic Dispenser Interface Kit includes an I/O Silver Board which may be configured
to include other inputs. A simple sketch of the site layout will be helpful in putting together the equipment
needed to complete the installation.
Installation.
PIE recommends the
performance of an equipment test prior to
installation and power-up of the Electronic
Dispenser Interface Kit. Many installers only
perform this test if problems are
encountered during installation and power-
up. More discussion may be found under
Troubleshooting near the end of this
document.
Installation of the FuelMaster Supplied
®
Equipment is as follows:
.
PIE Controller and Configurator The PIE
Controller and Configurator should be
installed where the D-Box is located. The
connecting cables from the Controller to the
Configurator, and from the Configurator to
the D-Box are just three feet long.
Both the Controller and Configurator have
power supplies that must be plugged into a
115VAC power outlet.
There must be a UPS (Uninterruptible
Power Supply) for the PIE Controller and

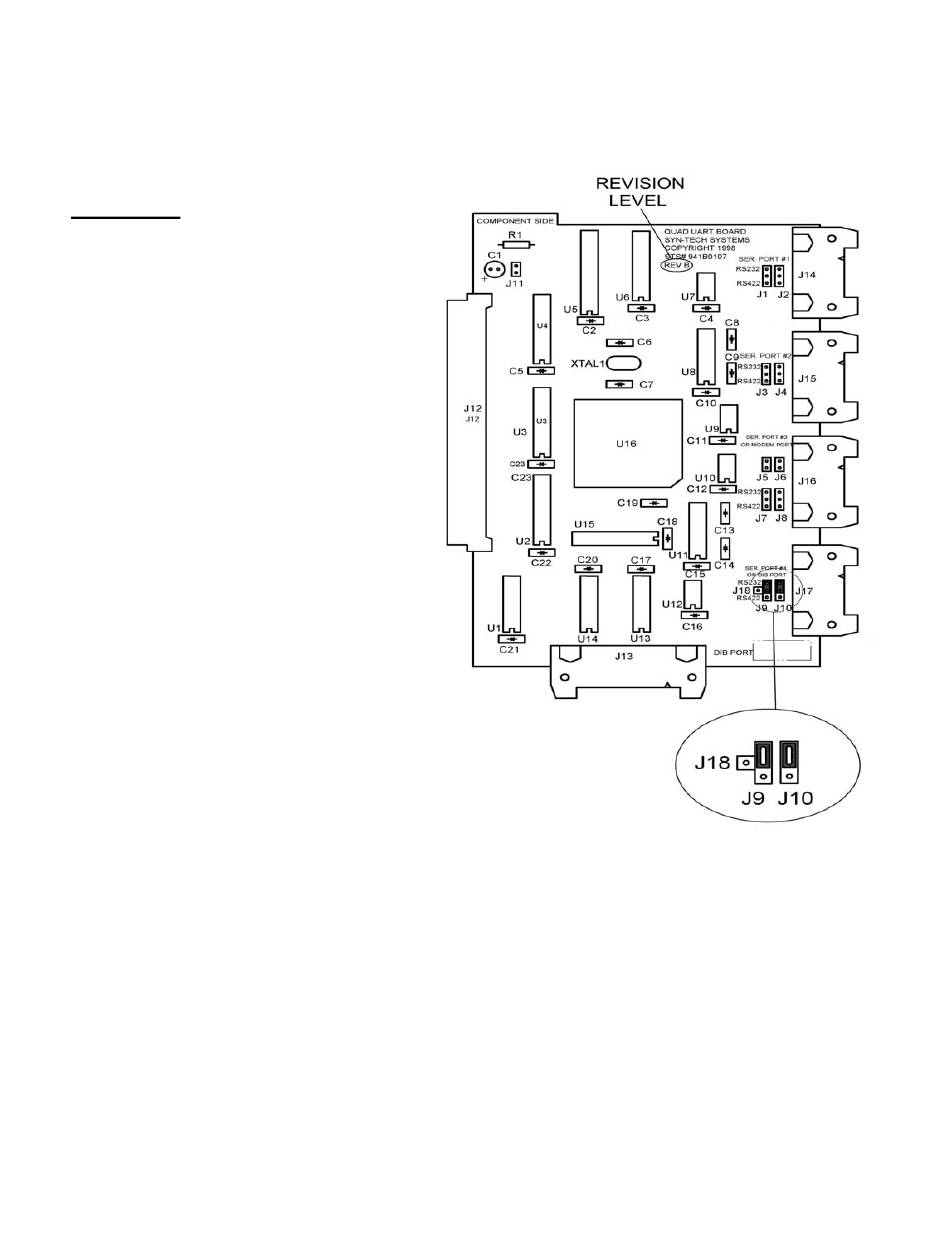

Figure H-6.
Configurator. The UPS retains power for
the PIE Controller and Configurator if power Revision B
is lost during a fueling transaction. The use
Quad UART
of a UPS reduces the likelihood of
Board
transaction loss during a power failure. No
specific size UPS is known, but a 650 volt-
amp APC Back-Ups ES was successfully tested with one of our customers. A UPS is the customer's
responsibility.
Depending upon the application, there may be one or two cable connections from the Configurator to the
D-Box(es). Reference Figure H-5, connect the Configurator to D-Box cable(s) from the Configurator
OUTPUT receptacle to the D-Box(es).
Specific installation instructions for various PIE applications with differing dispenser configurations are
provided in the PIE PCXZ Installation Guide and will not be duplicated here. Jumper settings within the
Controller and Configurator are also addressed in the PIE installation guides.
I/O Silver Board. The I/O Silver Board (part number 221813, Figure H-3) may be configured for several
different applications as well as the Electronic Dispenser Interface. This board must have, as a minimum,
a JP11 connector for the 941B0244 cable connection, and a JP12 connector for the 952B0103 cable
connection. There is another application which has a JP11 and JP12 connector, the Indoor Receipt
Printer board. This board has part number 203610, and does not incorporate the necessary components
(other than the connectors) to provide the Electronic Dispenser Interface function.
185
