Customer supplied equipment:
1. UPS (Uninterruptible Power Supply). PIE does not have an internal backup battery; UPS is
installed as insurance against transaction information loss during power failures.
2. D-Box. Normally from the same manufacturer as the dispensers; also available from PIE. There may
be two required depending upon the dispenser configuration. If purchased from PIE, the D-Box
includes the PIE Configurator.
3. Dispenser. The Dispenser Compatibility List identifies dispensers which require an Electronic
Dispenser Interface Kit.

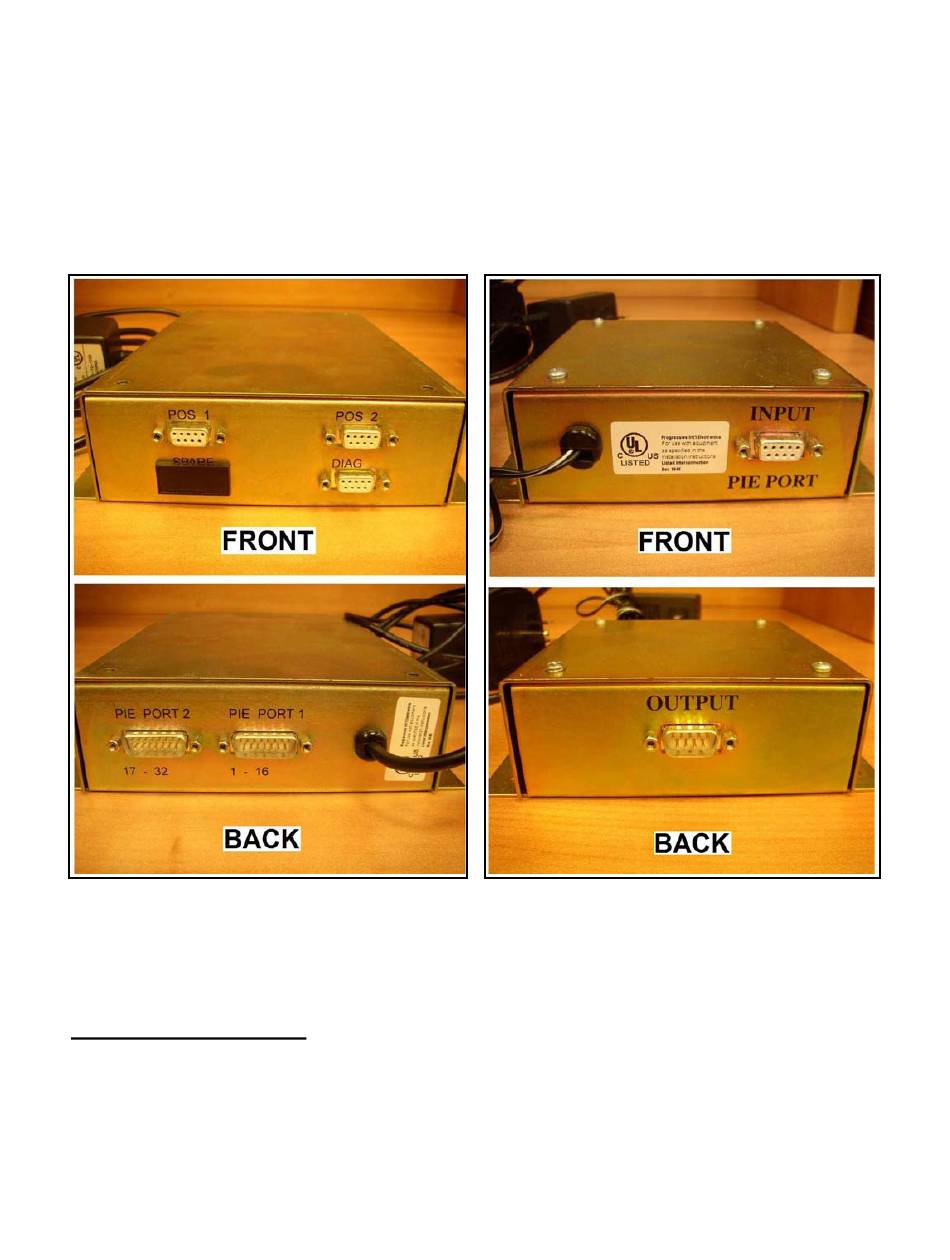

Fig. H-4. PIE PCXZ Controller
Minimal PIE inventory is maintained by Syn-Tech Systems. Expect at least a 2 week lead time after
receipt of the order for delivery of the PIE equipment.
Ordering the equipment.
the applicable Electronic Dispenser Interface Kit for the make (example: Gilbarco) and model (example:
Encore 300) dispenser(s) for which the kit is being purchased. A good description of the dispenser and D-
Box setup will be useful. Some Gilbarco setups will require a configurator which connects to one D-Box.
Other setups can require a configurator that connects to two D-Boxes. If more than one make and/or
model dispenser is to be used, be sure to specify the differences, and how many grade positions on each
make and/or model. Combining different makes and models of dispensers may not always be possible.
The Electronic Dispenser Interface Kit is not dependent upon the number of hoses except to ensure the
number of hoses that can be controlled by the FMU are not exceeded. If more than one FMU is being
Installation Manual
®
NOTE
The order for the FMU and associated parts should include a request for
184
Fig. H-5. PIE Configurator
