11. Indoor Receipt Printer (see Figures 4-26 and 4-27 for connections). The indoor receipt printer
requires connection to an I/O Silver Board having part numbers 203610, 203629, or 221813. A part
number 972A0102 cable is connected between J2 RECEIPT PRINTER on the Satellite I/O Control
Board, and JP11 DIRECT CONNECT on the I/O Silver Board.
The printer used for the application is an Epson TM-U200D serial printer. It is programmed with
dipswitches to XON/XOFF, 8 data bits, odd parity, and 9600 baud. If the printer is purchased from
Syn-Tech Systems, a printer cable with part number 201669 will be shipped with the printer. An RS-
232 cable is pulled from the FMU to the receipt printer location. If a cable is developed for the
interface, a DB25 connector will be required for connection to the printer.
A cable with 3 conductors must be used. If the cable is pulled in a conduit with other low voltage
conductors, the cable should be shielded. If the distance is under 300 feet, a cable with 22 AWG
conductors will perform satisfactory. If the distance is greater than 300 feet, increase the size of the
conductors to 18 AWG.
Use Table 4-4 for connection points. If a cable is manufactured to make the printer connection, use
the column "Receipt Printer DB25 Pin" to make the printer DB25 connections. If the 201669 printer
cable is connected to the printer, use the column "201669 Cable Color" to determine connection
points for the RS-232 cable pulled to the FMU.
Table 4-4. Indoor Receipt Printer Cable Connections
Equipment Interface Unit (EIU)
Installation
EIUs provide secure access to accessory devices such as
gate openers, car washes, or door openers. They do not
directly control these devices, but activate them by
providing a 1, 5, 8, 11, 14, 17, or 20 second momentary
power signal to the accessory controller. The accessory
controller must be capable of activation through a
momentary input signal.
EIUs cannot operate independently. Like Satellite FMUs,
they are dependent upon connection to a Master FMU.
The Master FMU must be accessed with a serial
connection to enable
Initialization, contains procedures for enabling EIU
operation.
EIUs are accessible with a Prokee
programmed into the Master FMU. They are not
accessible with Smartcards or AIM2™. A controlling
access point will perform the same functions as an EIU
through AIM2™ activation.
FuelMaster
®
I/O Silver
Board
JP11
Pin
1 (IN+)
3 (GND)
5 (OUT-)
EIU operation.
, or with an ID number
®
Installation Manual
Receipt
Printer 201669
DB25 Cable
Pin Color
2 BLACK
7 CLEAR
3 RED
Section V,
107

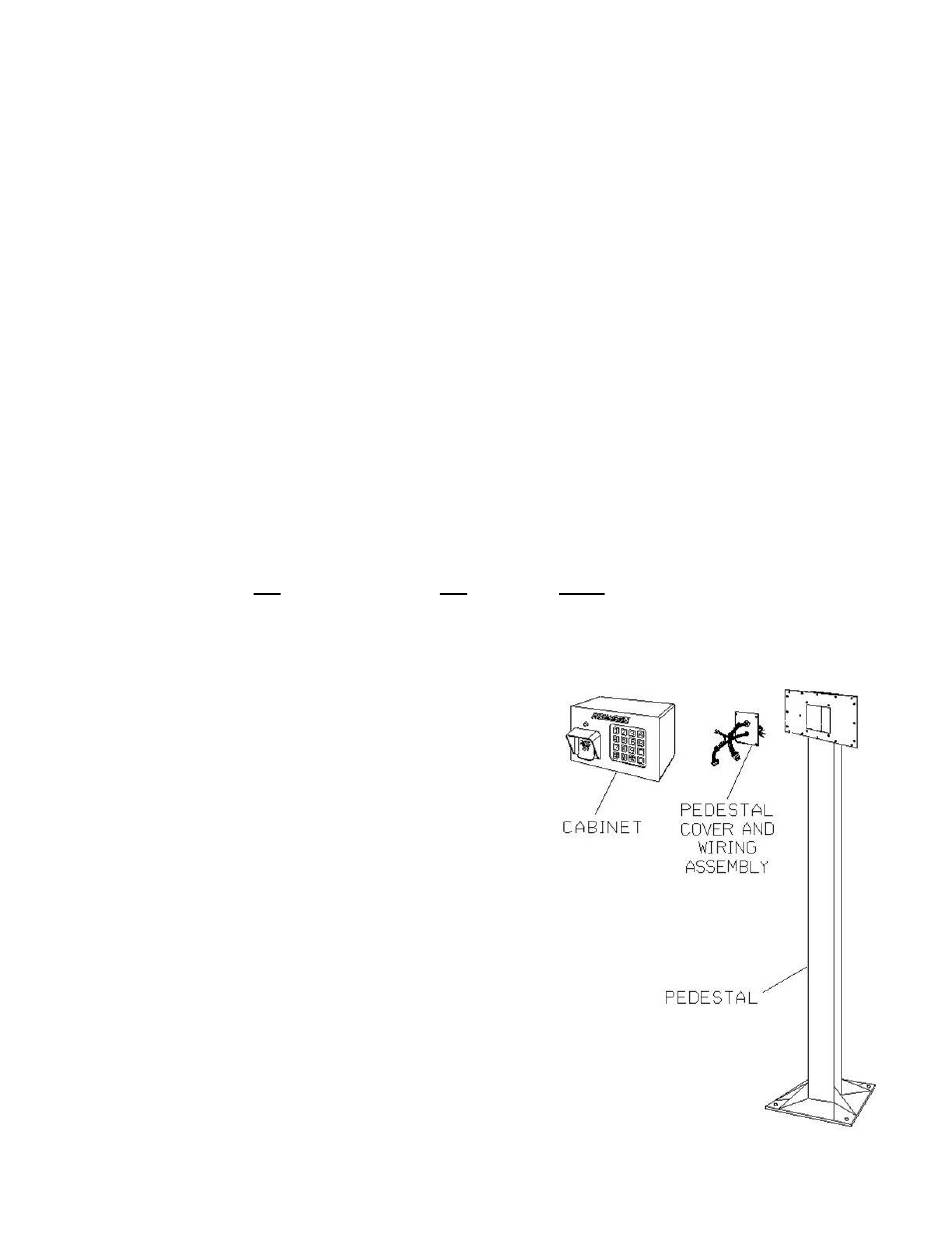

Figure 4-32.
EIU Components
