Chapter 2: Jumpers and Switches

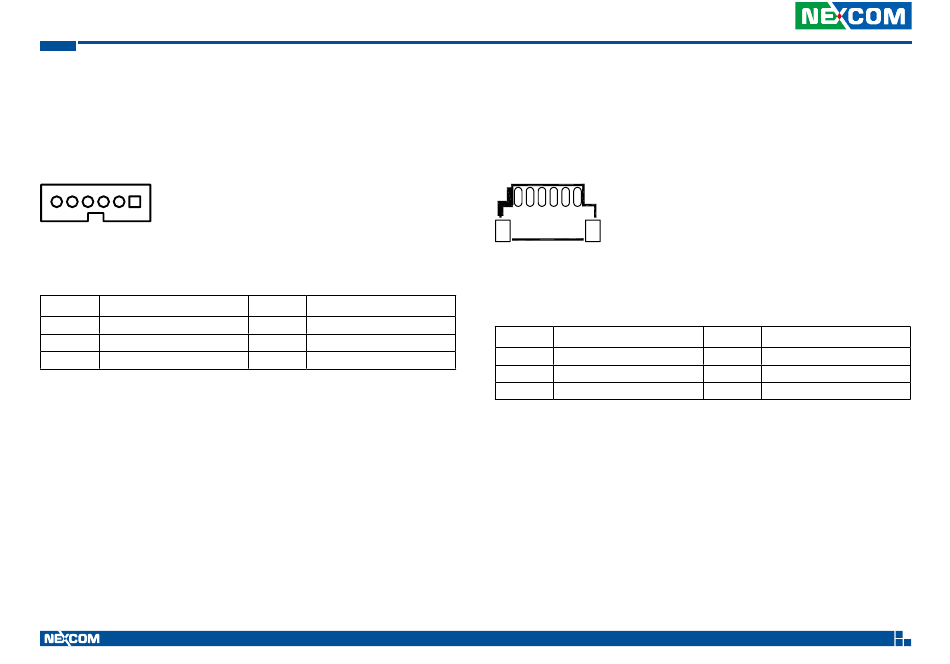

GPS Signal Connector
Connector size: 1 x 6 = 6-pin header
Connector location: J4
6
1
Pin
Definition
1
GPS_BAT
3
GPS_TXD
5
GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
NC
4
GPS_RXD
6
VCC3_GPS
WLAN Module
Connector size: 1 x 6 = 6-pin header
Connector location: J1
1
6
Pin
Definition
1
USB_VCC5
3
USB_DP
5
WLAN_LED#
25
Pin
Definition
2
USB_DN
4
GND
6
WLAN_DIS#
VTC 210 Series User Manual
