4.5 Connectors
This section describes the function of the connectors and gives information about
mating connectors. The following figure shows the locations of the connectors.
4.5.1 USB (P2)
The USB connector is a standard Type B USB receptacle.
Part Description
Type B USB receptacle
USB cable (provided with kit)
4.5.2 Audio (P4 – P8, P17)
There are 2 3.5mm Stereo audio jacks, 13 RCA jacks and 1 optical connector.
ADSP-21161N EZ-KIT Lite Evaluation System Manual

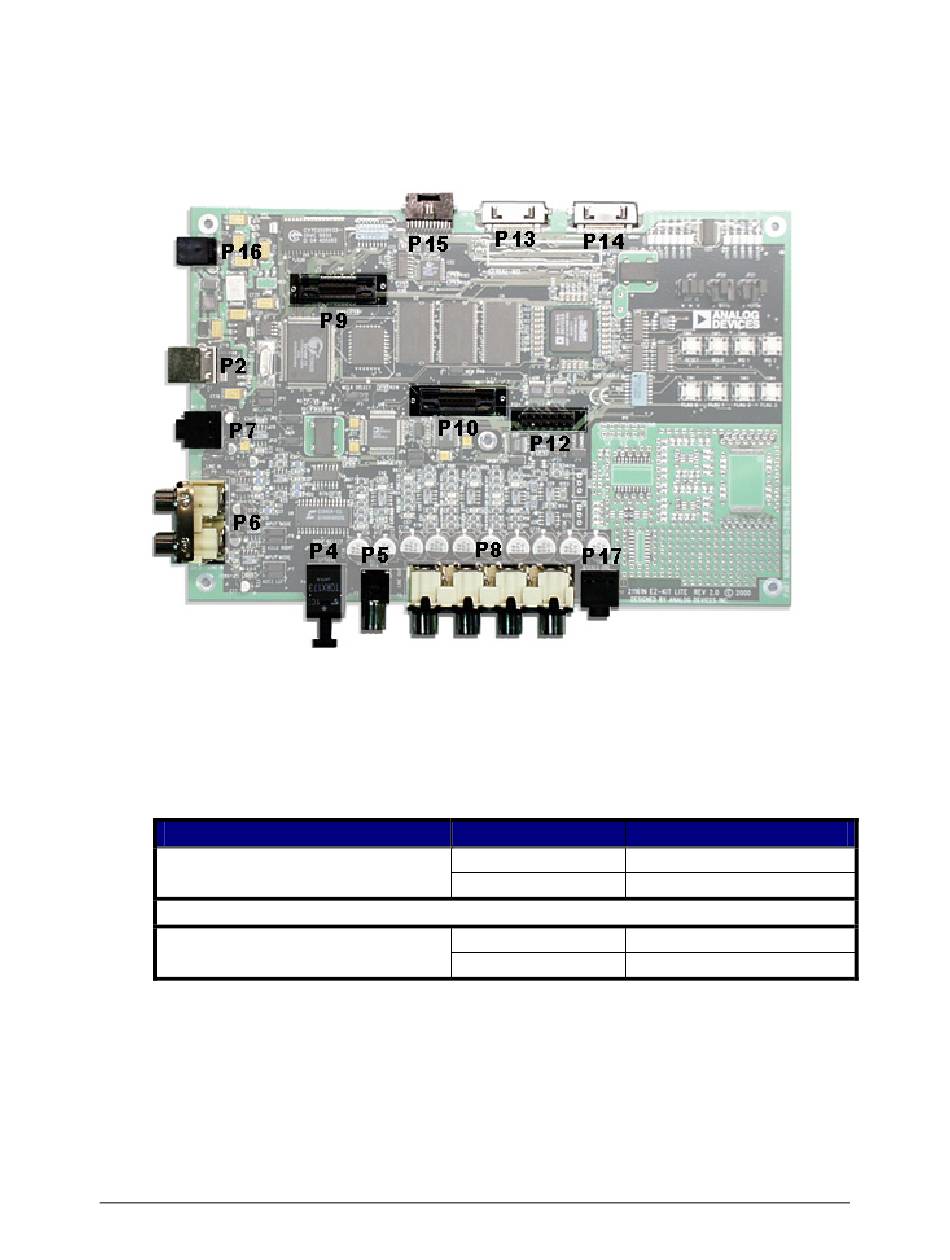

Figure 4-5: Connector Locations
Manufacturer
Mill-Max
Digi-Key
Mating Connector
Assmann
Digi-Key
Part Number
897-30-004-90-000
ED90003-ND
AK672-5
AK672-5ND
4-14
