Windows 2000 will automatically install the ADSP-21161N EZ-KIT Lite driver.
The driver installation is now complete as shown in

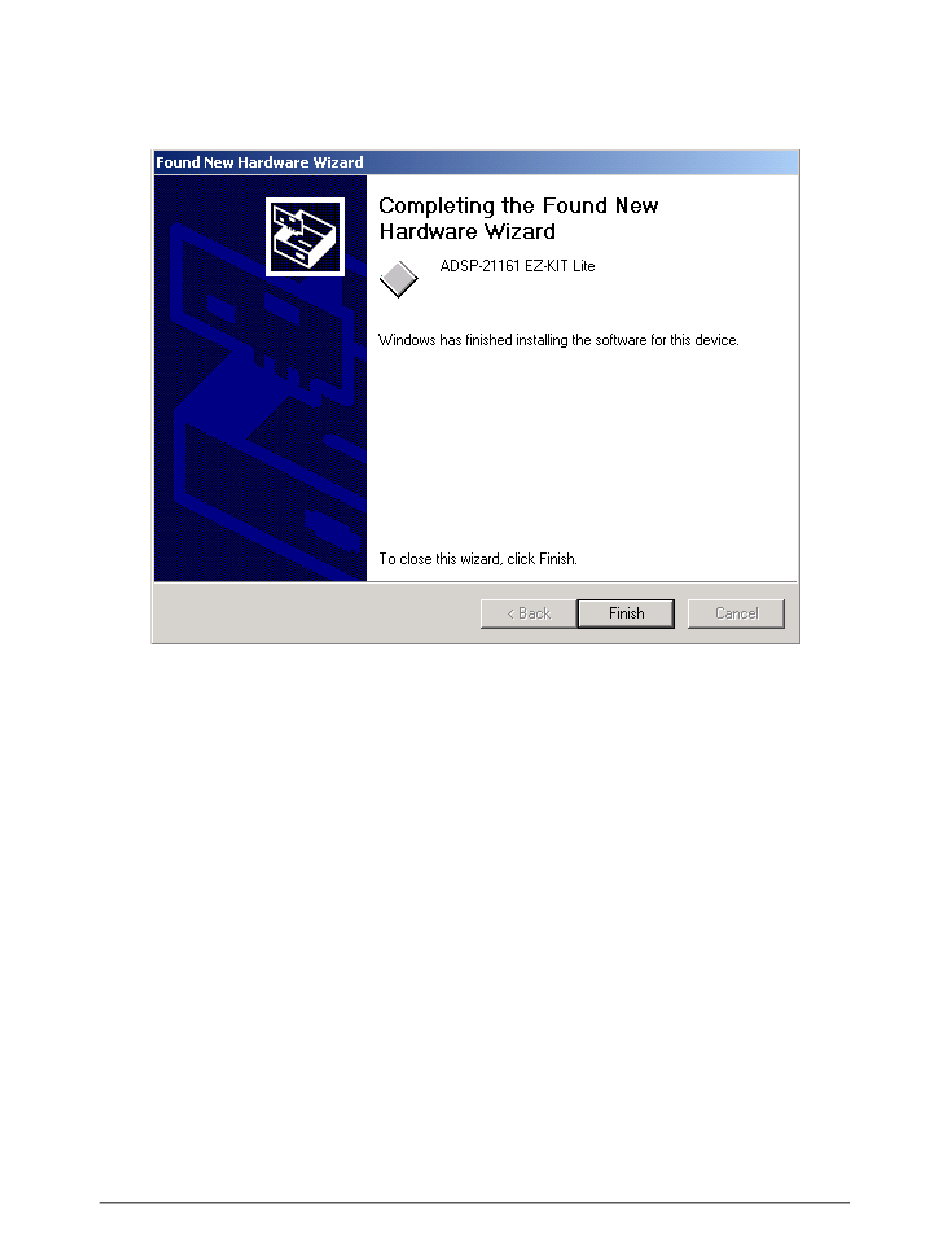

Figure 2-14: Completing Driver Installation Dialog Box
8. Click Finish to exit the wizard.
Verify the installation by following the instructions in section 2.4.6.
2.4.6 Driver Installation Verification
Before you use the EZ-KIT Lite evaluation system, verify that the USB driver
software is installed properly:
1. Ensure that the USB cable is connected to the evaluation board and the PC.
2. Press and release the RESET button (SW8) on the evaluation board.
3. Verify that the red DSP RESET LED (LED8) stays lit for about 15 seconds.
4. After the DSP RESET LED (LED8) goes out, verify that the yellow USB
monitor LED (LED10) is lit. This signifies that the board is communicating
properly with the host PC, and is ready to run VisualDSP++.
ADSP-21161N EZ-KIT Lite Evaluation System Manual
Figure
2-14.
