4.3.1 SDRAM Disable (JP1)

JP1 is used to enable or disable the third SDRAM device. When this jumper is
installed, the ADSP-21161N can access the SDRAM as 48-bit wide external
memory.
The upper 16 bits of data are multiplexed with the Link Ports and the external
data bus. Therefore when the jumper is installed the Link Ports are not available.
To use the Link Ports this jumper must be removed.
ADSP-21161N EZ-KIT Lite Evaluation System Manual

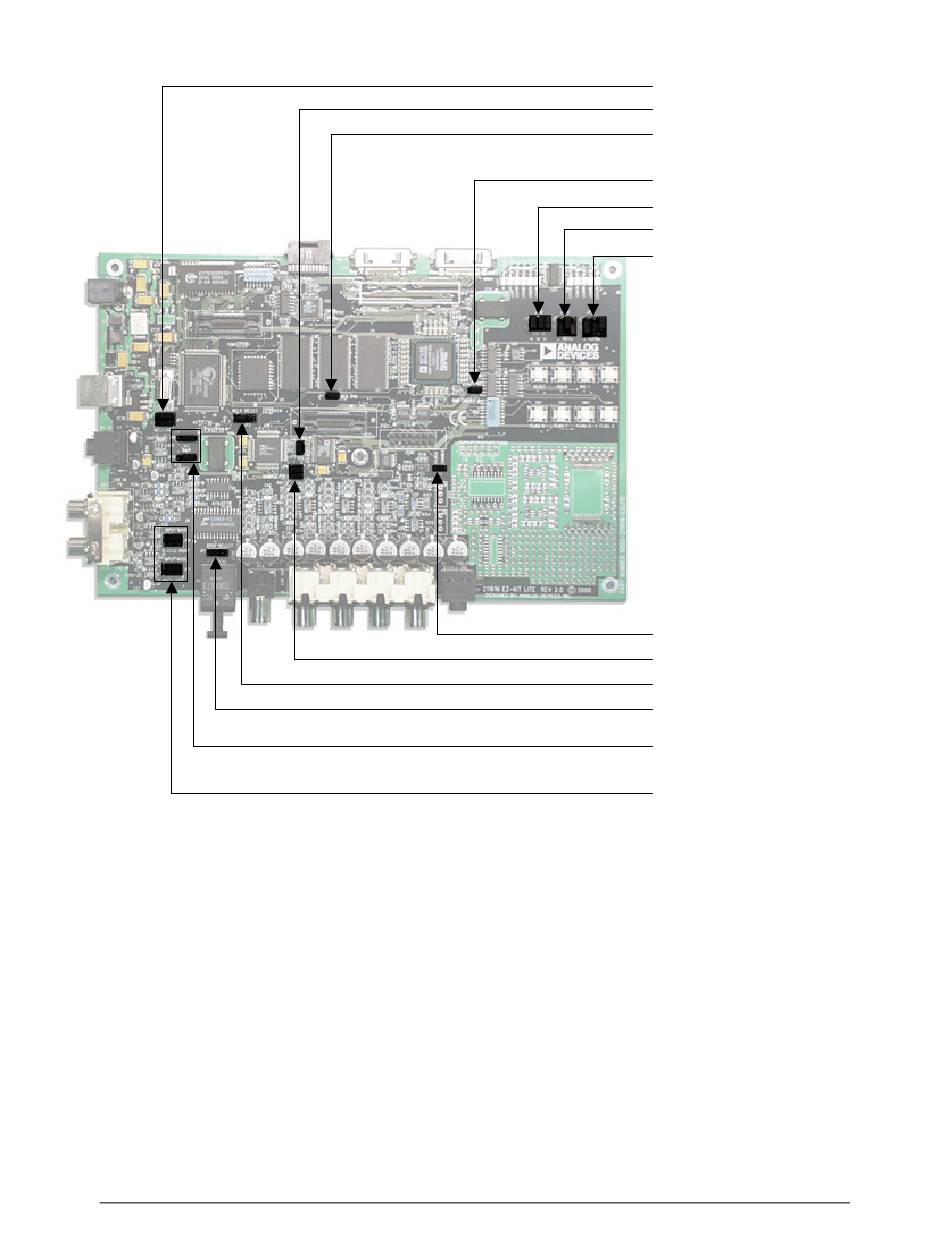

Figure 4-2: Jumper Locations

JP11: ADC1 Input Selector
JP5: FLAG1 Enable
JP1: External Memory
Width
JP22: BMS Enable
JP19: DSP ID
JP20: Boot Mode
JP21: Clock Mode
JP4: FLAG0 Enable
JP6: Sample Frequency
JP3: MCLK Select
JP2: SPDIF Select
JP9: Mic Gain Right
JP10: Mic Gain Left
JP7: ADC2 Input Mode Left
JP8: ADC2 Input Mode Right
4-5
