Chapter 8 File management

File Explorer Overview

File Explorer Overview

To reach the File Explorer page
• On the Home page, select the File Explorer icon.
The File Explorer page displays.

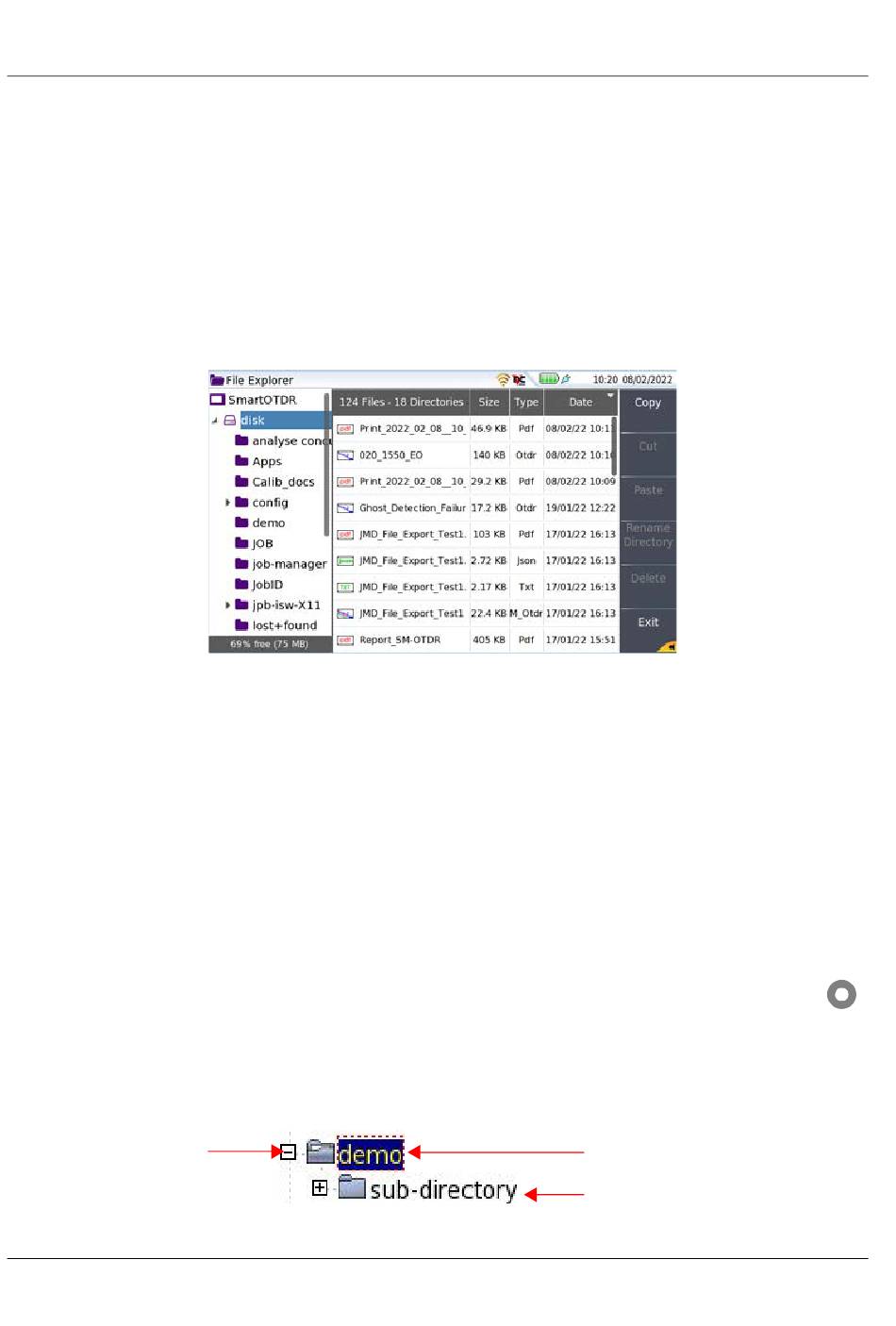

Figure 66 File Explorer page

Directories and Files selections

Directory selection

To select a directory from the explorer page:
1 Press on the directory that must be selected on the left of the screen.
The list of files the directory contains displays on the right side of the screen
The selected directory is underlined in blue
2 Touch the arrow at the left of the directory name, or press validation hard key
to display the sub-directories if any.
Figure 67 Directory selection
Access to sub-
directory
84 User Manual
Selected directory
Sub-directory
7SMART102 Rev006
,
