ONX-220

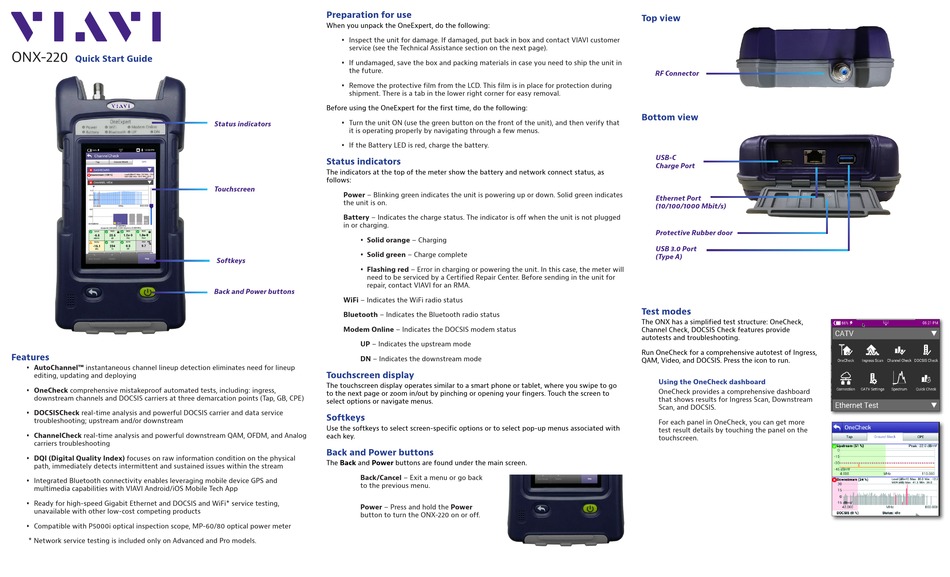

Quick Start Guide
Features
y AutoChannel™ instantaneous channel lineup detection eliminates need for lineup
editing, updating and deploying
y OneCheck comprehensive mistakeproof automated tests, including: ingress,
downstream channels and DOCSIS carriers at three demarcation points (Tap, GB, CPE)
y DOCSISCheck real-time analysis and powerful DOCSIS carrier and data service
troubleshooting; upstream and/or downstream
y ChannelCheck real-time analysis and powerful downstream QAM, OFDM, and Analog
carriers troubleshooting
y DQI (Digital Quality Index) focuses on raw information condition on the physical
path, immediately detects intermittent and sustained issues within the stream
y Integrated Bluetooth connectivity enables leveraging mobile device GPS and
multimedia capabilities with VIAVI Android/iOS Mobile Tech App
y Ready for high-speed Gigabit Ethernet and DOCSIS and WiFi* service testing,
unavailable with other low-cost competing products
y Compatible with P5000i optical inspection scope, MP-60/80 optical power meter
* Network service testing is included only on Advanced and Pro models.
Preparation for use
When you unpack the OneExpert, do the following:
y Inspect the unit for damage. If damaged, put back in box and contact VIAVI customer
service (see the Technical Assistance section on the next page).
y If undamaged, save the box and packing materials in case you need to ship the unit in
the future.
y Remove the protective film from the LCD. This film is in place for protection during
shipment. There is a tab in the lower right corner for easy removal.
Before using the OneExpert for the first time, do the following:
y Turn the unit ON (use the green button on the front of the unit), and then verify that
Status indicators
it is operating properly by navigating through a few menus.
y If the Battery LED is red, charge the battery.

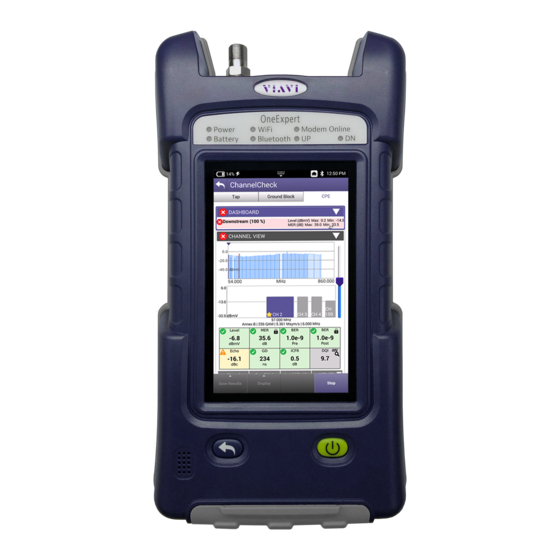

Status indicators
The indicators at the top of the meter show the battery and network connect status, as
follows:
Touchscreen
Power – Blinking green indicates the unit is powering up or down. Solid green indicates
the unit is on.
Battery – Indicates the charge status. The indicator is off when the unit is not plugged
in or charging.
y Solid orange – Charging
y Solid green – Charge complete
Softkeys
y Flashing red – Error in charging or powering the unit. In this case, the meter will
need to be serviced by a Certified Repair Center. Before sending in the unit for
repair, contact VIAVI for an RMA.
Back and Power buttons
WiFi – Indicates the WiFi radio status
Bluetooth – Indicates the Bluetooth radio status
Modem Online – Indicates the DOCSIS modem status
UP – Indicates the upstream mode
DN – Indicates the downstream mode
Touchscreen display
The touchscreen display operates similar to a smart phone or tablet, where you swipe to go
to the next page or zoom in/out by pinching or opening your fingers. Touch the screen to
select options or navigate menus.
Softkeys
Use the softkeys to select screen-specific options or to select pop-up menus associated with
each key.
Back and Power buttons
The Back and Power buttons are found under the main screen.
Back/Cancel – Exit a menu or go back
to the previous menu.
Power – Press and hold the Power
button to turn the ONX-220 on or off.
Top view
RF Connector
Bottom view
USB-C
Charge Port
Ethernet Port
(10/100/1000 Mbit/s)
Protective Rubber door
USB 3.0 Port
(Type A)
Test modes
The ONX has a simplified test structure: OneCheck,
Channel Check, DOCSIS Check features provide
autotests and troubleshooting.
Run OneCheck for a comprehensive autotest of Ingress,
QAM, Video, and DOCSIS. Press the icon to run.
Using the OneCheck dashboard
OneCheck provides a comprehensive dashboard
that shows results for Ingress Scan, Downstream
Scan, and DOCSIS.
For each panel in OneCheck, you can get more
test result details by touching the panel on the
touchscreen.
