Viavi OTU-5000 Getting Started Manual

Download this manual

The OTU-5000 installation requires going through :

- Mechanical installation

The OTU-5000 Serial Number is indicated on top of the equipment.

MECHANICAL INSTALLATION - INSTALLING THE OTU-5000 INTO THE RACK

Installing the OTU-5000 (PN E9E-COTU-SHELF)

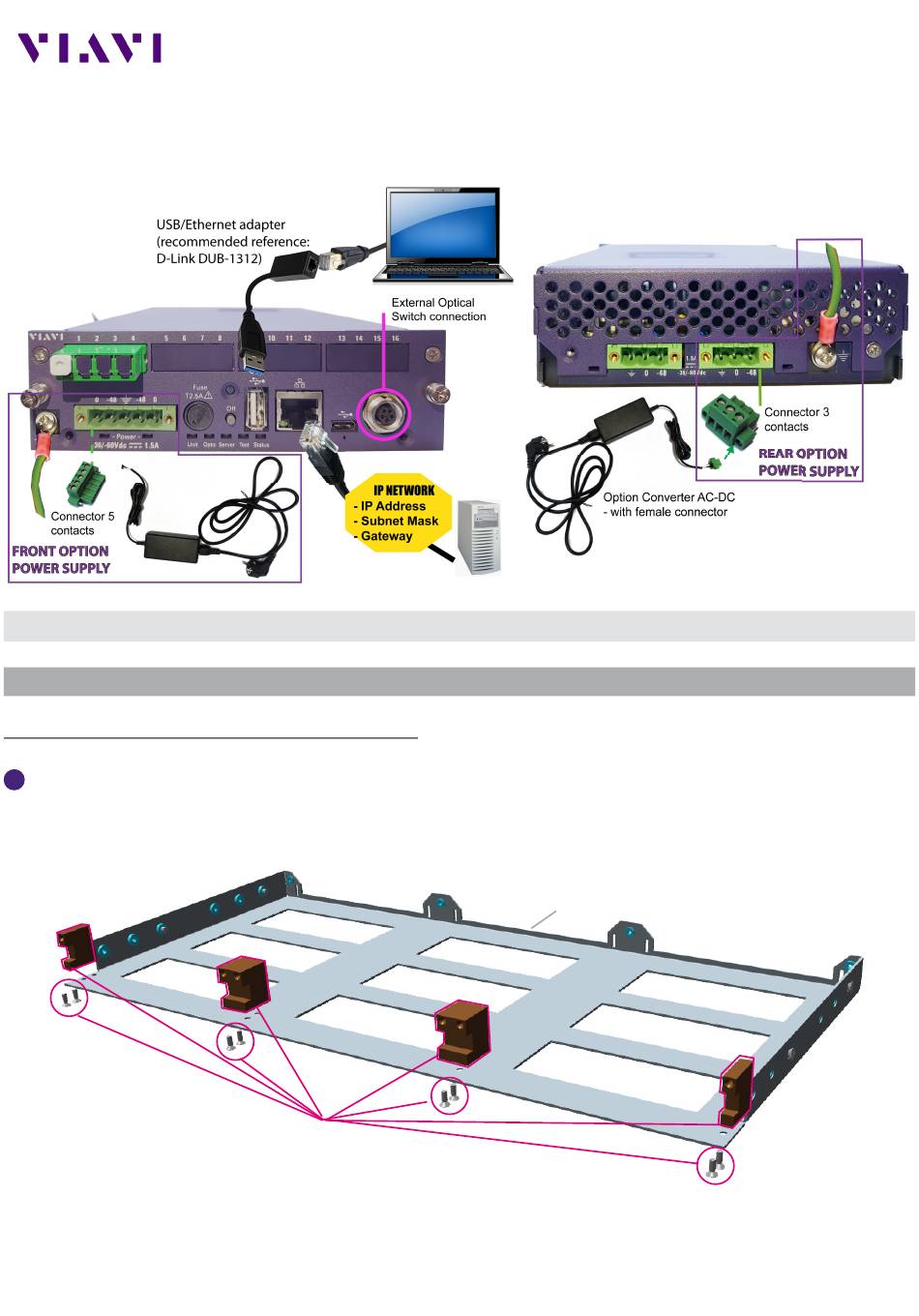

Fix the 4 attaches (2 small and 2 big) onto the shelf, using the 8 screws M3x8, included into the E9E-

COTU-SHELF Kit.

OTU-5000 GETTING STARTED MANUAL

- Electrical connections

E9E-COTU-SHELF

Mounting Kit

- Communication setup

Shelf

Need help?

Do you have a question about the OTU-5000 and is the answer not in the manual?

Page 1 Fix the 4 attaches (2 small and 2 big) onto the shelf, using the 8 screws M3x8, included into the E9E- COTU-SHELF Kit. Shelf E9E-COTU-SHELF Mounting Kit OTU-5000 - Getting Started Manual – Ref 78COTU050 rev002 – January 2019 – © 2019 VIAVI...
Page 2 Fix the whole assembly to the rack using the tools included into the E9E-RACK-MOUNT Kit. Installing the OTU-5000 (PN E9E-COTU) Fix the OTU-5000 onto the bracket screwing the 5 screws M3X8, included in the E9E-FP-XX Kit. E9E-FP-XX Mounting Kit Fix the whole assembly to the rack using the tools of the E9E-RACK-MOUNT Kit.
Page 3 ELECTRICAL CONNECTIONS If OTU-5000 is not powered by the AC/DC adapter block, it can be powered by power supply rails. The OTU-5000 works on a DC -48V power supply. It supports a dual feed. If the Front Option is used for power supply, remove the connector 3 contacts from the convert- er and screw the connector 5 contacts, included into the E9E-ACPS-CONN Kit.
Page 4 COMMUNICATION The OTU-5000 is setup in DHCP mode with a host name such as: otu-5000-05002 (05002 is the serial number) To change LAN settings: In local mode, your PC with the web browser must be connected on OTU-5000 USB port with Ether- net adapter (recomended to use the adapter D-Link, DUB1312).
