Viavi Seeker X with MCA III Installation Manual

Seeker X with MCA III
Installation Guide
1

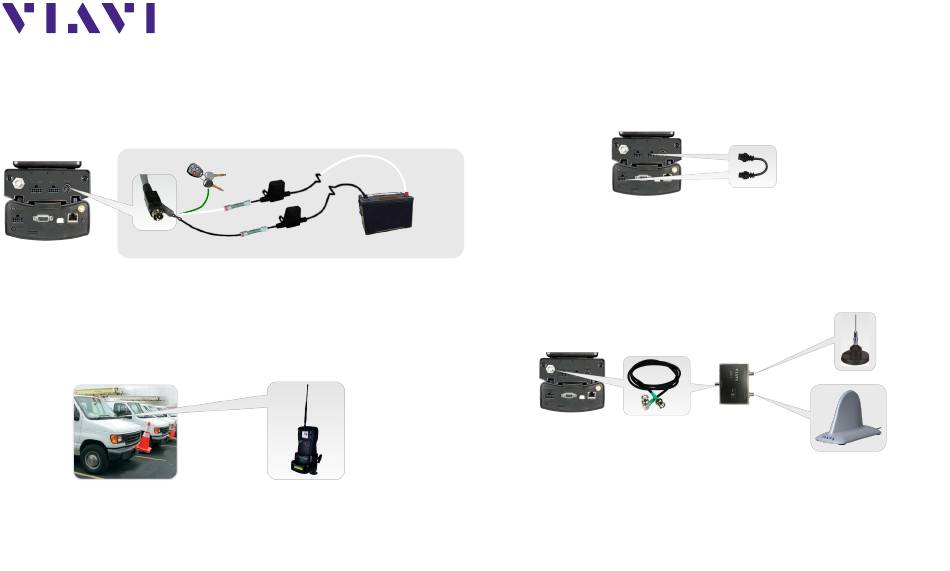

Wire the DC power cable to the vehicle power source and then connect it to the back of the Seeker
X Mobile Mount.
DC power cable
Mobile Mount & MCA Ill Mobile Mount & MCA Ill
rear view rear view
*Use the provided in-line fuse holders to wire the white & black DC power cables to
the vehicle battery as shown. Wire the green DC power cable to the vehicle key switch
to allow the MCA Ill to determine when the vehicle is turned OFF.
2

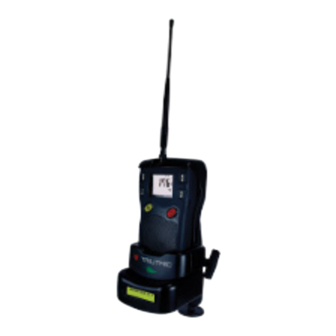

Install the Seeker X Mobile Mount & Seeker MCA Ill in your vehicle*.
Green wire
vehicle ignition
White wire
positive (+)
Black wire
negative (-)
*Before installation ,
configure the Seeker X &
Seeker MCA Ill as shown
in the Seeker Setup User's
Guide.
3
Connect the serial data cable between the Seeker X Mobile Mount and the Seeker MCA Ill (optional).
Mobile Mount & MCA Ill
rear view
4
Connect the Seeker X Mobile Mount antenna connection to the vehicle antennas.
Mobile Mount & MCA Ill Antenna diplexer
rear view cable
*Connect the right angle connector of the diplexer
cable to the back of the mobile mount.
22137809
Rev 001, Jan 2020
English
Serial data cable
Antenna diplexer
WVM-2
high-band
antenna
© 2020 VIAVI Solutions Inc.
Product specifications and descriptions in this
document are subject to change without notice.
AVM-3
low-band
antenna
