Replacing the battery

CAUTION
Battery is not interchangeable in the field. It must be replaced exclu-
sively for maintenance purpose.

Accessing to the battery

To access the battery of the SmartOTDR, proceed as follows:
1 Switch off the instrument and disconnect the mains supply.
2 Turn the instrument face down on a flat surface.
3 Remove the battery door
4 Gently pull on the battery's connector and disconnect it from its socket.

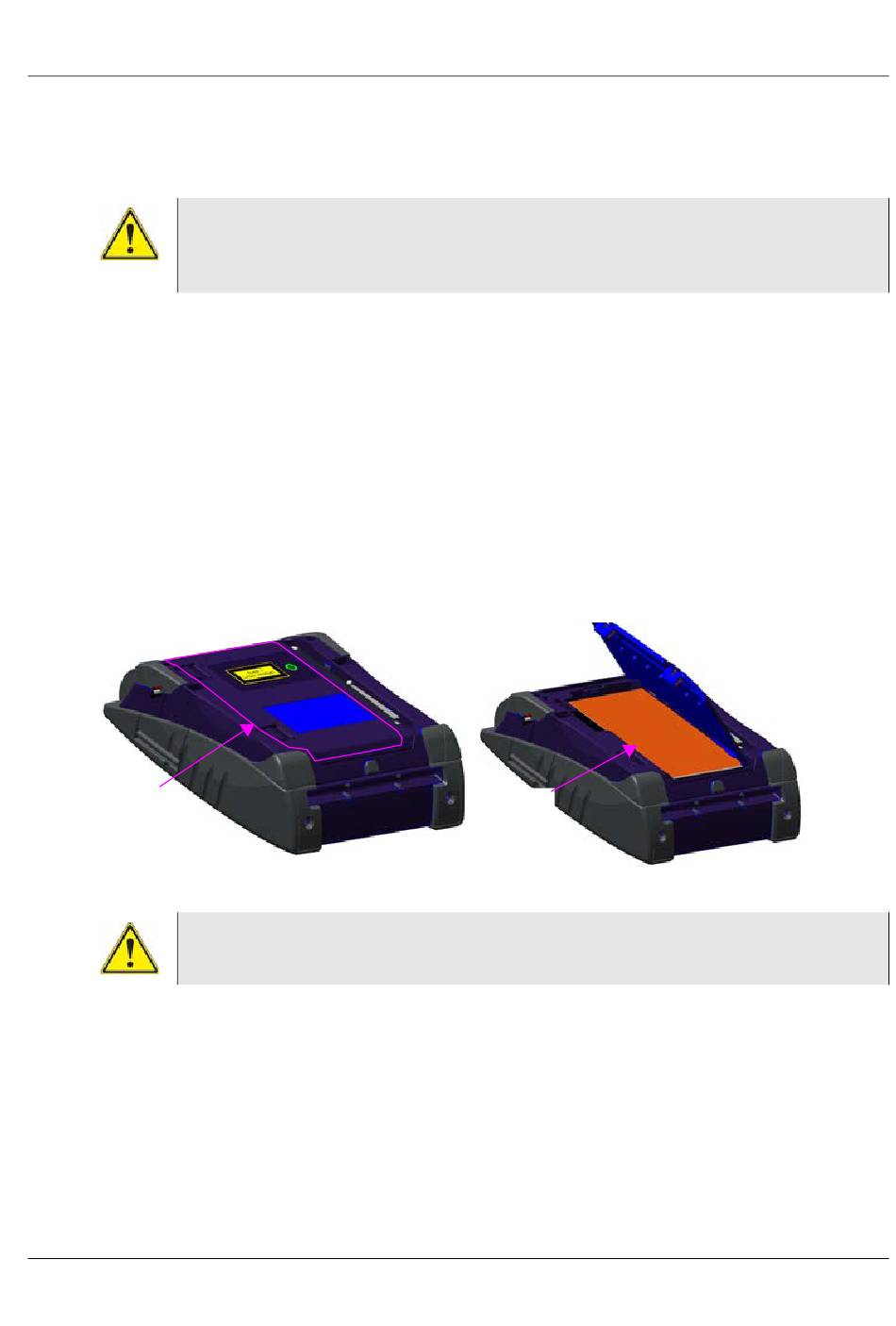

Figure 87 Battery location
Battery
door
Date and Time parameters will be lost when battery is disconnected.

Installing a new battery

1 Connect the battery's connector to the socket.
2 Set the battery into its seating.
