- Page 1 Manual Teldat S.A. Installation Manual Copyright© Teldat Dm949 Version 1.0 05/2021 Teldat S.A.
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Table of Contents Teldat S.A. Table of Contents Chapter 1 About this Guide ........1 Supported devices . - Page 4 Table of Contents Teldat S.A. A.3.4 Dimensions and weight ....... .
-
Page 5: About This Guide

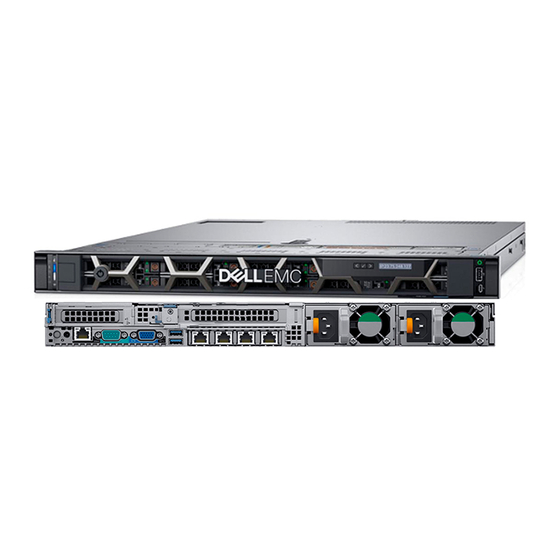

1 About this Guide Teldat S.A. Chapter 1 About this Guide This installation guide for the SDE router contains information on how to correctly install this device in a working en- vironment. 1.1 Supported devices The information provided in this installation guide only applies to the SDE router. -
Page 6: Components And Power Supply
2 Components and Power Supply Teldat S.A. Chapter 2 Components and Power Supply The following chapter provides detailed information on the chassis of the SDE router and its components. This in- cludes information on: • Components. • Assembly. • Power supply. - Page 7 2 Components and Power Supply Teldat S.A. Fig. 2: Left control panel view Left control panel Item Description Status LED indicators. They indicate the system's status. System health and ID indicators. They indicate the system's health. Status LED indicators Icon...
-
Page 8: Rear Panel
The SDE device can be installed in a 19” rack. 2.2.1 Standalone An SDE device can be placed as a standalone on a flat, stable surface. The adhesive rubber feet must be stuck to the underside panel to prevent the router from sliding. -
Page 9: Power Source
The SSH server is enabled in SDE. Default credentials are: user: admin password: admin 2.4.2 Connecting for configuration To access the SDE device via the local console, a monitor and a keyboard can be connected to it (using the VGA and USB ports, respectively) Default credentials are: user: admin password: admin 2.5 Factory reset... -
Page 10: Default Configuration
2 Components and Power Supply Teldat S.A. 2.5.1 Default configuration The default configuration of the SDE device is as follows: set interfaces bridge br0 address dhcp set interfaces bridge br0 dhcp client fallback 192.168.1.1/24 set interfaces ethernet eth0 bridge-group bridge br0... -
Page 11: Compliance
3 Compliance Teldat S.A. Chapter 3 Compliance 3.1 Manufacturer information Dell Brand Manufacturer Dell Technologies Country Contact www.dell.com/support/home. 3.2 Safety warnings 3.3 WEEE information The crossed-out wheelie bin symbol indicates that the device must be disposed of separately from normal domestic waste at an appropriate waste disposal facility at the end of its useful service life. -
Page 12: Ec Declaration Of Conformity
3 Compliance Teldat S.A. 3.5 EC declaration of conformity English (EN) Hereby, Teldat S.A. declares that the radio equipment type SDE is in compliance with: Directive 2014/30/EU (EMC) Directive 2014/35/EU (LVD) Directive 2009/125/EC (ErP) Directive 2011/65/EU (RoHS) of the European Parliament and of the Council. -
Page 13: Appendix A Technical Information
Restart the system. Update any required drivers for the PCIe card. Reinstall the card. A.2 Updating the software The SDE software can be updated to newer versions. Please contact your dealer for information on new releases. For further information, please see manual: “Teldat Dm945-I_Provisioning SDWAN devices" (chapter 5) . A.3 Technical specifications A.3.1 Hardware architecture... -
Page 14: Nic
Technical Information Teldat S.A. A.3.2 NIC Intel X710 Quad Port 10GbE SFP+, rNDC Connections Quad SFP+ cages for: • SFP+SRfiber-optic transceivers • SFP+LRfiber-optic transceivers • SFP+RJ45 transceivers • SFP+Direct Attach cables Network Standard Physical Lay- IEEE 802.3: er Interface 10GBASE-SR...
