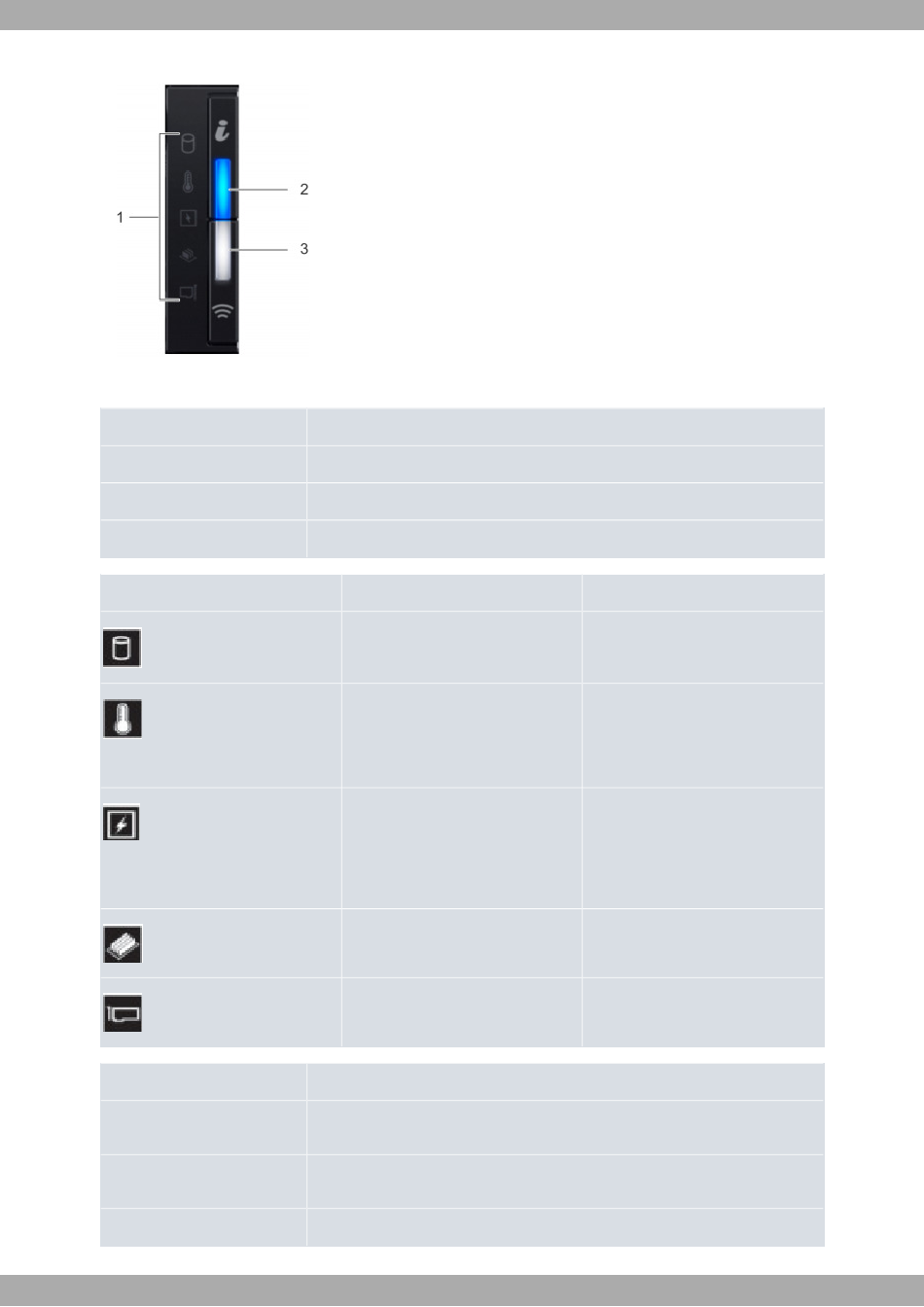

Fig. 2: Left control panel view
Left control panel
Item
1
2
3
Status LED indicators
Icon
System health and system indicator codes
Code
Solid blue
Blinking blue
Solid amber
SDE
Description
Status LED indicators. They indicate the system's status.
System health and ID indicators. They indicate the system's health.
N/A
Description
Drive indicator
Temperature indicator
Electrical indicator
Memory indicator
PCIe indicator
Condition
Indicates the system is on, healthy, and that the ID mode is not active. Press the
system health and system ID button to switch to system ID mode.
Indicates that the system ID mode is active. Press the system health and system
ID button to switch to system health mode.
Indicates that the system is in fail-safe mode.
2 Components and Power Supply
Condition
The indicator turns solid amber if
there is a drive-related problem.
The indicator turns solid amber if the
system experiences a thermal error
(for example, when the room temper-
ature is out of range or there is a fan
failure).
The indicator turns solid amber if the
system experiences an electrical er-
ror (for example, when the voltage is
out of range, or a power supply unit
(PSU) or voltage regulator have
failed).
The indicator turns solid amber if a
memory error occurs.
The indicator turns solid amber if a
PCIe card experiences an error.
