Monitor Display
Table 4-2
1. Institution/Hospital Name, Date, Time, Operator
Identification, system status (real-time of frozen).
2. Patient Name, Patient Identification.
3. Acoustic Output Readout,
4. GE Symbol: Probe Orientation Marker. Coincides with a
probe orientation marking on the probe.
5. Image Preview.
6. Grey/Color Bar.
7. Cine Gauge.
8. Measurement Summary Window.
9. Image.
10. Measurement.
11. Results Window.
4 - 8
9
EVISION

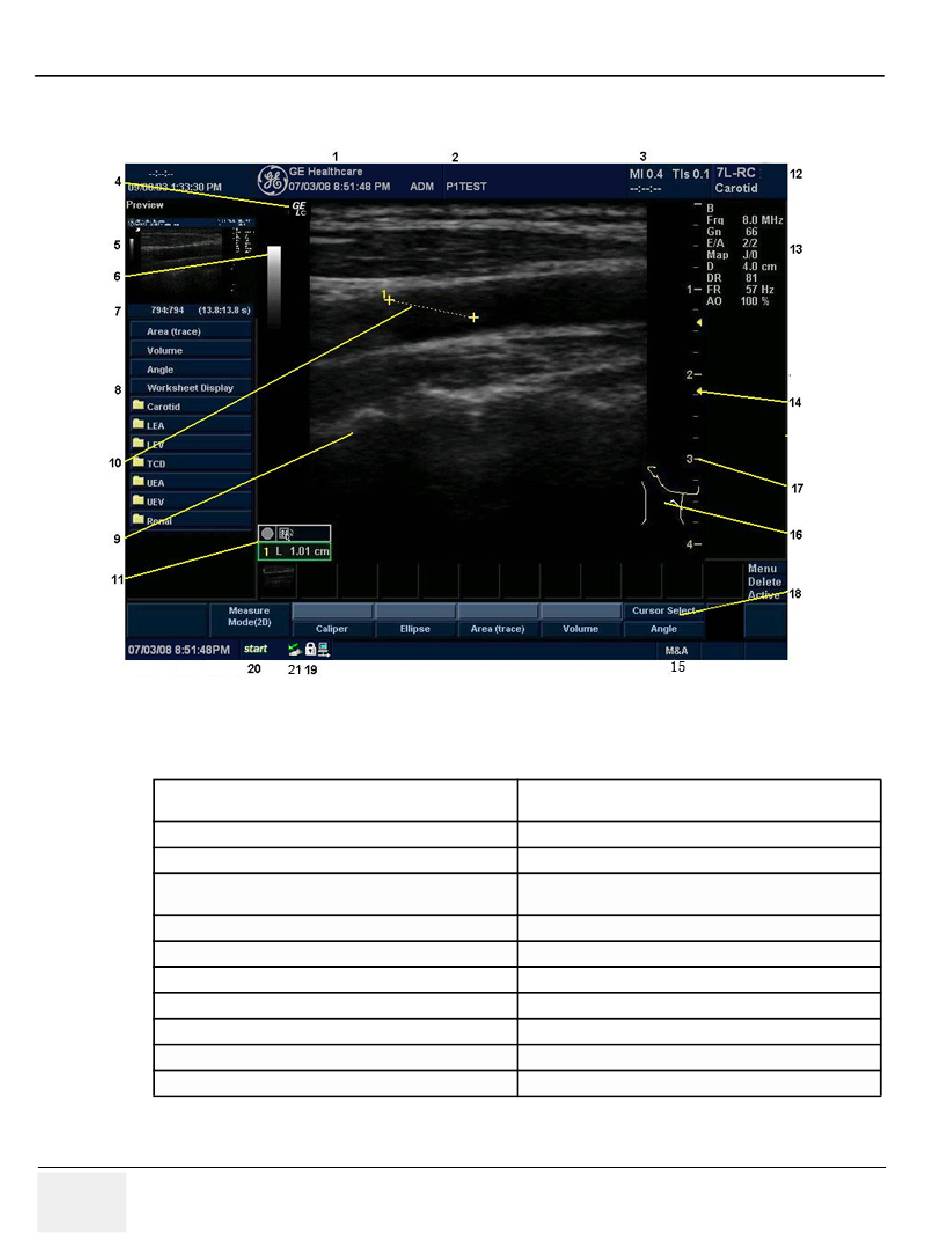

Figure 4-7 Monitor Display Tour
Monitor Display Features
Section 4-3 - General Procedure
LOGIQ C S
ERIES
12. Probe Identifier. Exam Study.
13. Imaging Parameters by Mode (current mode highlighted).
14. Focal Zone.
15. Trackball Functionality Status: Scroll, M&A (Measurement
and Analysis), Position, Size, Scan Area Width and Tilt.
16. Body Pattern.
17. Depth Scale.
18. SoftMenu
19. Caps Lock: On/Off.
20. Start menu icon.
21. Card icon.
B
S
M
ASIC
ERVICE
ANUAL
