3.8 Assembly Group Back

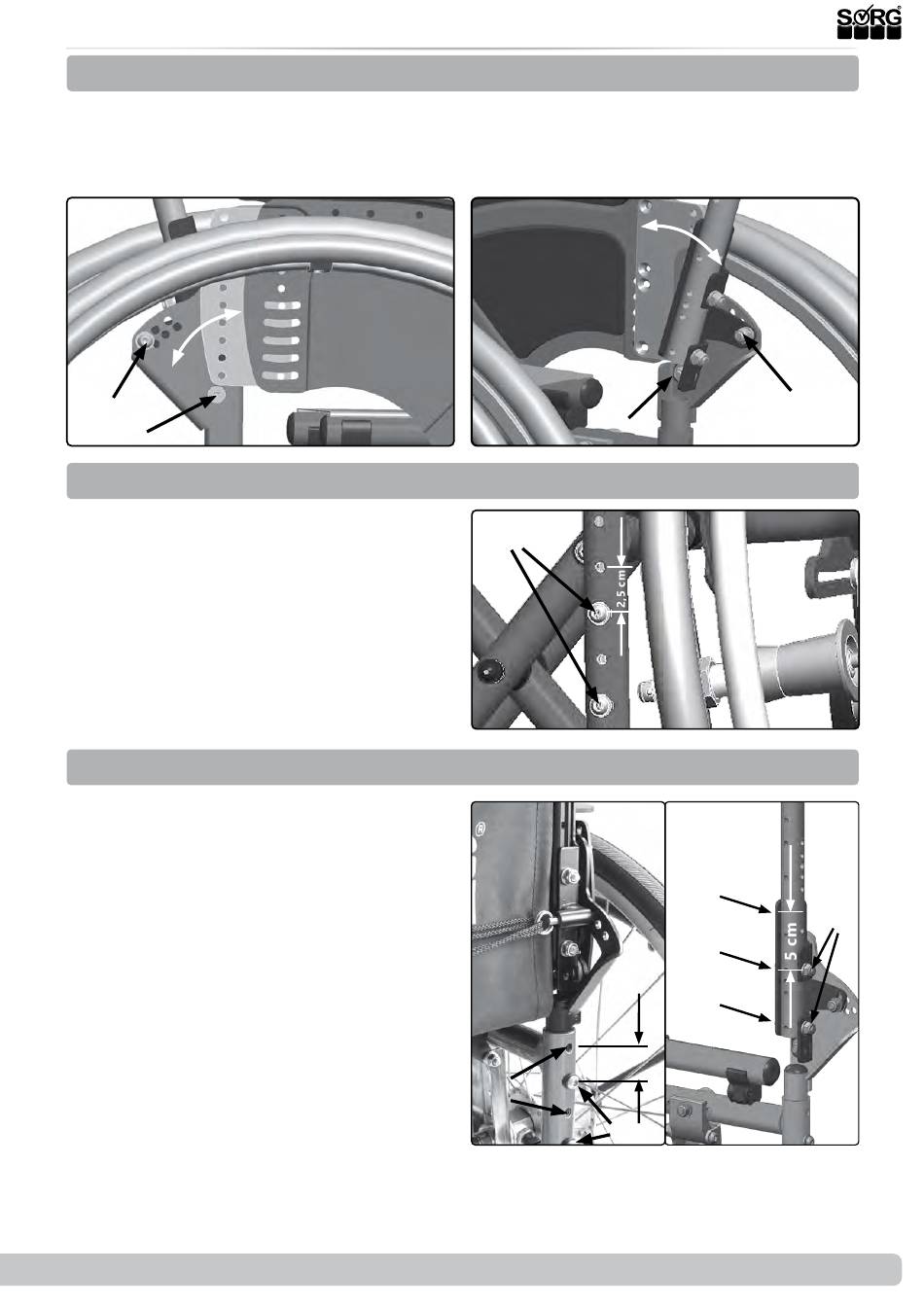

3.8.3 Setting the back angle

(1+2) The tilting angle of the back rest is set with the screws (A).
Remove the screw connection (A), loosen the screws (B), tilt the back tubes in the wanted po-
sition, afterwards place the screws (A) in the new position and retighten all of them. The angle
setting must be the same on both sides.
(1)
(A)
(B)

3.8.4 Extension on the standard backs

(3) Remove the screws (A) on the frame of
the back tubes on both sides. Slide the back
tube in the wanted position and retighten the
screws.

3.8.5 Extension on backs with angle adjustment or setting

Height adjustment of 2,5 cm:
The extension is done as already described
above by repositioning the frame tube.
Height adjustment of 5 cm:
(5) Remove both screws (A), displace the back
tube up from the holes (B1 and B2) on the
front side to the holes (B2 and B3). Retighten
all screw connections.
Should you have already extended the back
2,5 cm with the back tubes in the frame (pic-
ture 4), you must then reverse this action
otherwise the distance between seat edge and
the bottom back edge will be too big and the
angle turning point with slide too far up.
2022-12-19
(2)
(3)
(4)
(B)
Service Record Vector & Vector BSA
(B)
(A)
(5)
2,5 cm
(A)
(A)
(B3)
(A)
(B2)
(B1)
