3.1 Assembly Group Wheels
The tire of the wheel must be at least 10 mm
away from the side guard/skirt guard. Take
notice that the distance on the left and right
are the same!
(1) In order to screw on or screw off the
quick-release axle fittings:
• remove the screws of the fittings (B)
(the lock nut (2E) on the inner surface
as well),
• turn the whole fitting (C) in the wanted
position and
• retighten the screws (tightening torque
nuts M18 fitting 35 Nm).
You must check the functionality of the
knee lever brake and if necessary reset them.

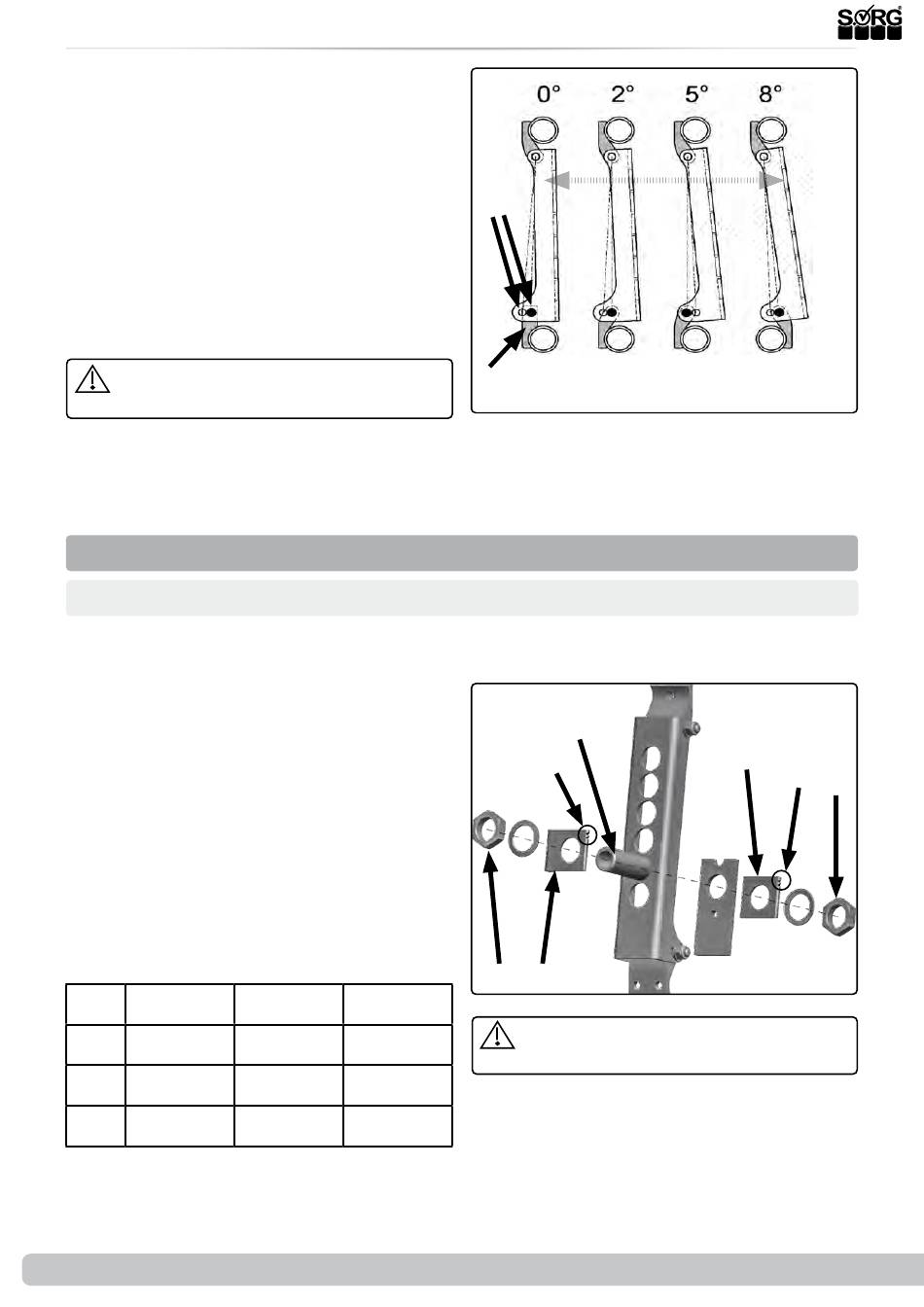

3.1.7 Rear wheel track balance

Version till 02/2017
If you have to change the camber and/or the seat slant you must, in order to avoid the so called
"eraser effect", mount appropriate wedge plates for the track balance.
To change/set the wedge plate;
• (1) remove the screws (A) of the
quick-release axle fittings (D) (also on
the inside),
• apply the needed wedge plate/s (B),
• the mounting grooves (C) must point
forward in driving direction,
• replace all other washers
• and retighten the screws (A) of the
quick-release axle fittings (D) (also on
the inside)
(turning point 35 Nm).
Use the following chart the help you:
cam- without seat
ber slant
2° washer 0°
4°-8° washer 0°
11° washer 0°
**If necessary, apply 2 sets of plates (2 x inner plate
mounted on the inside, 1x outer plate+ 1x inner plate
mounted on the outside)
12 of 40
normal seat strong seat
slant (< 5°)* slant (> 5°)*
washer 0° wedge plate
0,5°
wedge pla- wedge plate
te0,5° 1°
wedge plate wedge plate
1° 1°**
Service Record Vector & Vector BSA
(1)
inside
(B)
(D)
(2)
(D)
(C)
(A) (B)
You must check the functionality of the
knee lever brake and if necessary reset it.
outside
(B)
(C)
(A)
The picture shows in driving direction
the perforated plate on the right.
