3.9 Assembly Group Truss Pads

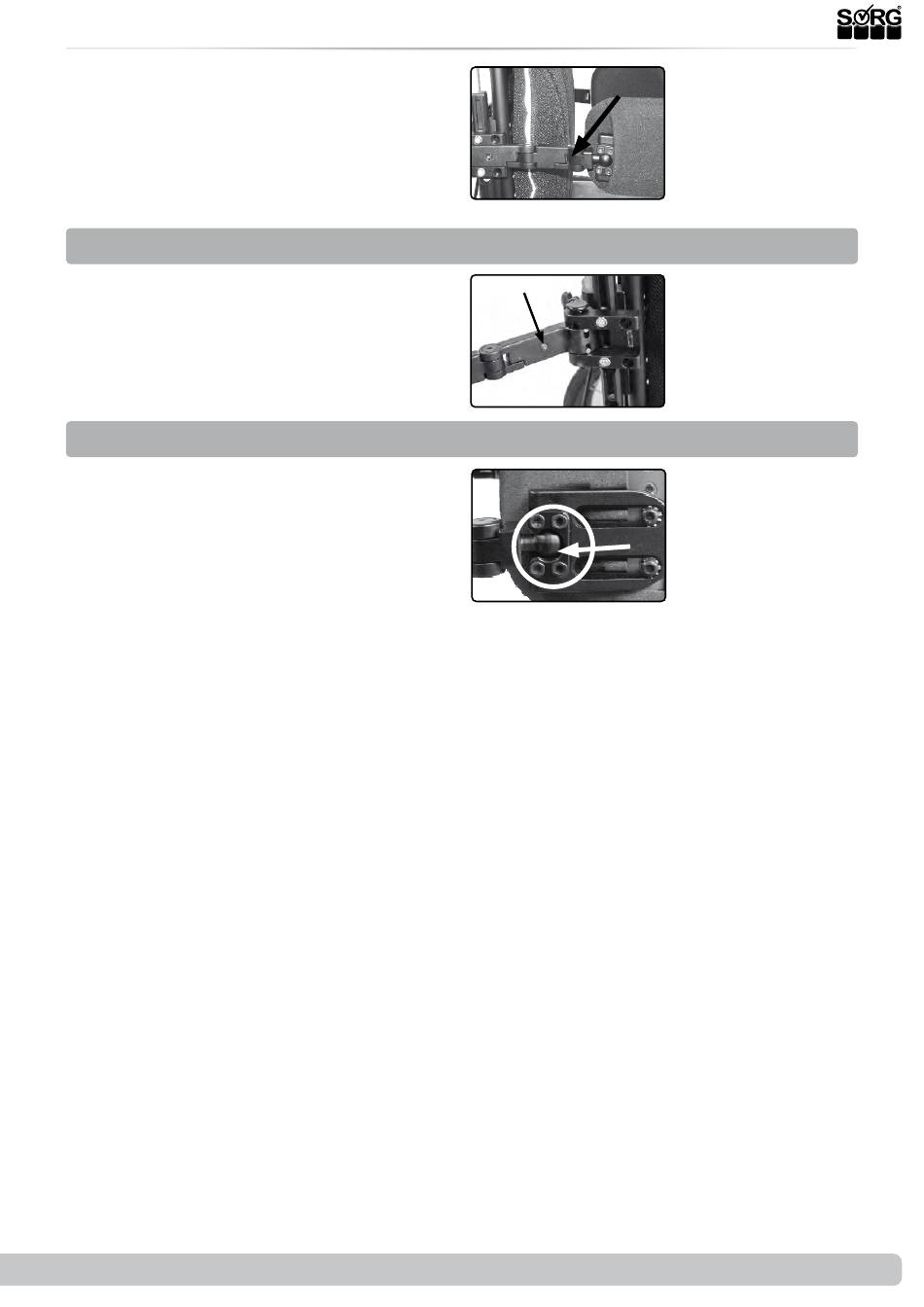

Horizontal extension
(6) For the horizontal extension add an exten-
sion piece (spare part): Remove the screw (A),
add the extension piece and screw it together
on both ends.

3.9.4 Fine adjustment of the truss pad holder

(7) The fine adjustment of the room between
locking joint and truss pad holder occurs with
the adjustment screw (A).

3.9.5 Adjusting to the user

(8) If all positioning and extension works are
finished close the truss pads, adjust the joints
in the necessary position and tighten all joint
screws (6A). The ball joint is then fixated by
tighten the four screws (B).
2022-12-19
(6)
(7)
(8)
Service Record Vector & Vector BSA
(A)
(A)
(A)
31 of 40
