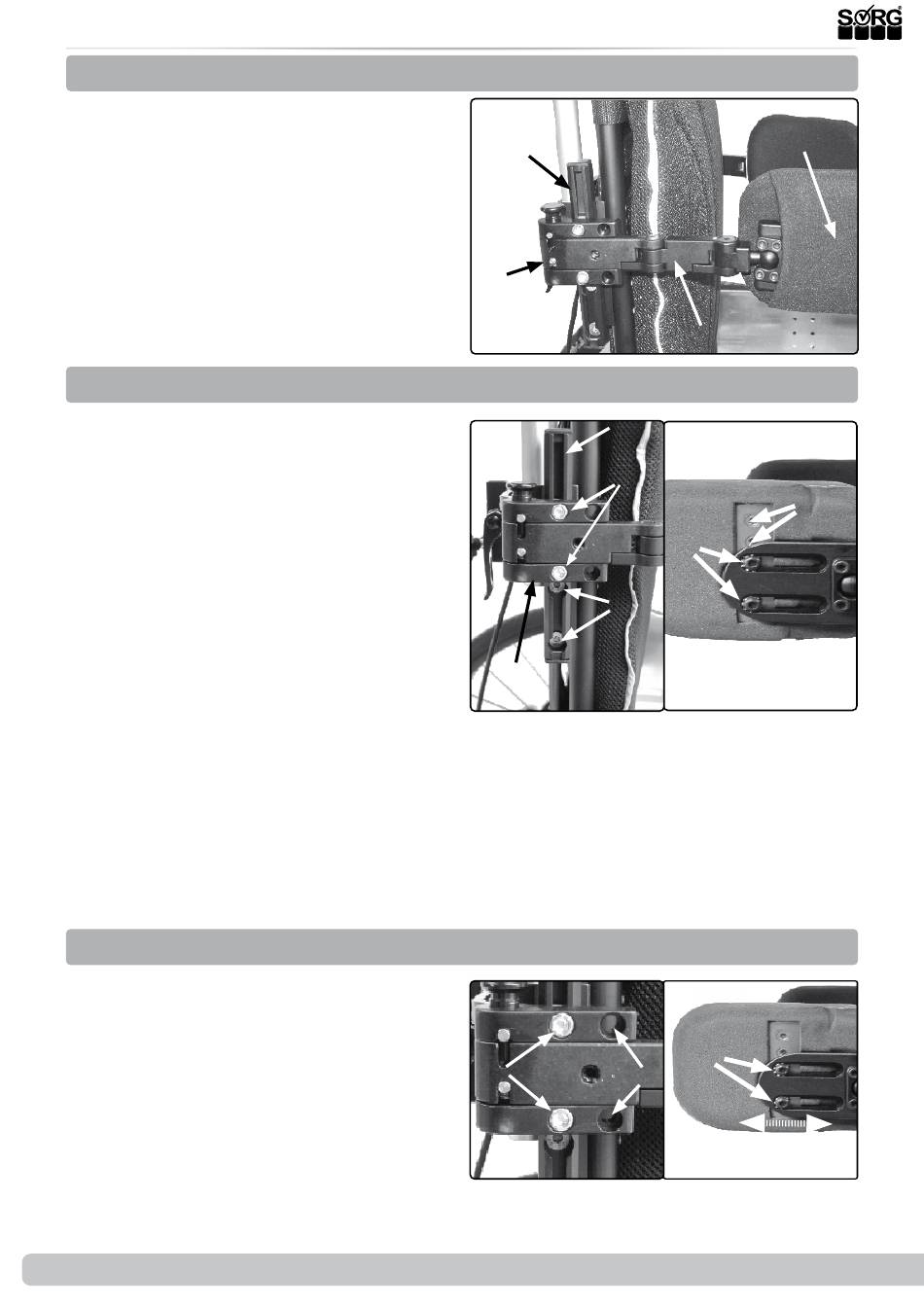

3.9 Assembly Group Truss Pads
3.9.1 Classification
(1) The truss pads consist of the following
parts:
•
(A) connection (C-bar)
•
(B) truss pad cushion
•
(C) truss pad holder
•
(D) locking joint
3.9.2 Vertical setting
(2) The vertical setting of the truss pads occurs
on the one hand by moving the locking joint
(A). Loosen both screws (B), move the locking
joint (A), and retighten the screws (B).
vertical setting
(2) On the other hand, the truss pads can be
adjusted by turning the c-bar (D). Remove the
locking joint (A) by unscrewing the screws (B).
Remove screws (D), turn the c-bar 180° and
retighten the screws (D). Remount the locking
joint (A) to the c-bar and retighten the screws
(B).
vertical setting
(3) Additionally, with truss pad size II the
height can be adjusted be displacing the cush-
ions. Remove the screws (A), place the cushion
on the holes (B), replace and retighten the
screws (A).
3.9.3 Horizontal setting
(4) The horizontal setting occurs on the one
hand by displacing the locking joint. Remove
both screws (A), place the locking joint in the
alternate holes (B), replace and retighten the
screws.
horizontal setting
(5) On the other hand, it can occur by dis-
placing the cushions. Remove the covers,
remove the screws (A), displace the cushion
and retighten the screws (A). After, replace the
covers.
30 of 40
(1)
(A)
(D)
(2)
(A)
(4)
(A)
Service Record Vector & Vector BSA
(C)
(C)
(3)
(B)
(A)
(D)
(5)
(A)
(B)
(B)
(B)
2022-12-19
