2.4.4 Conversion from back angle setting to
back angle adjustment

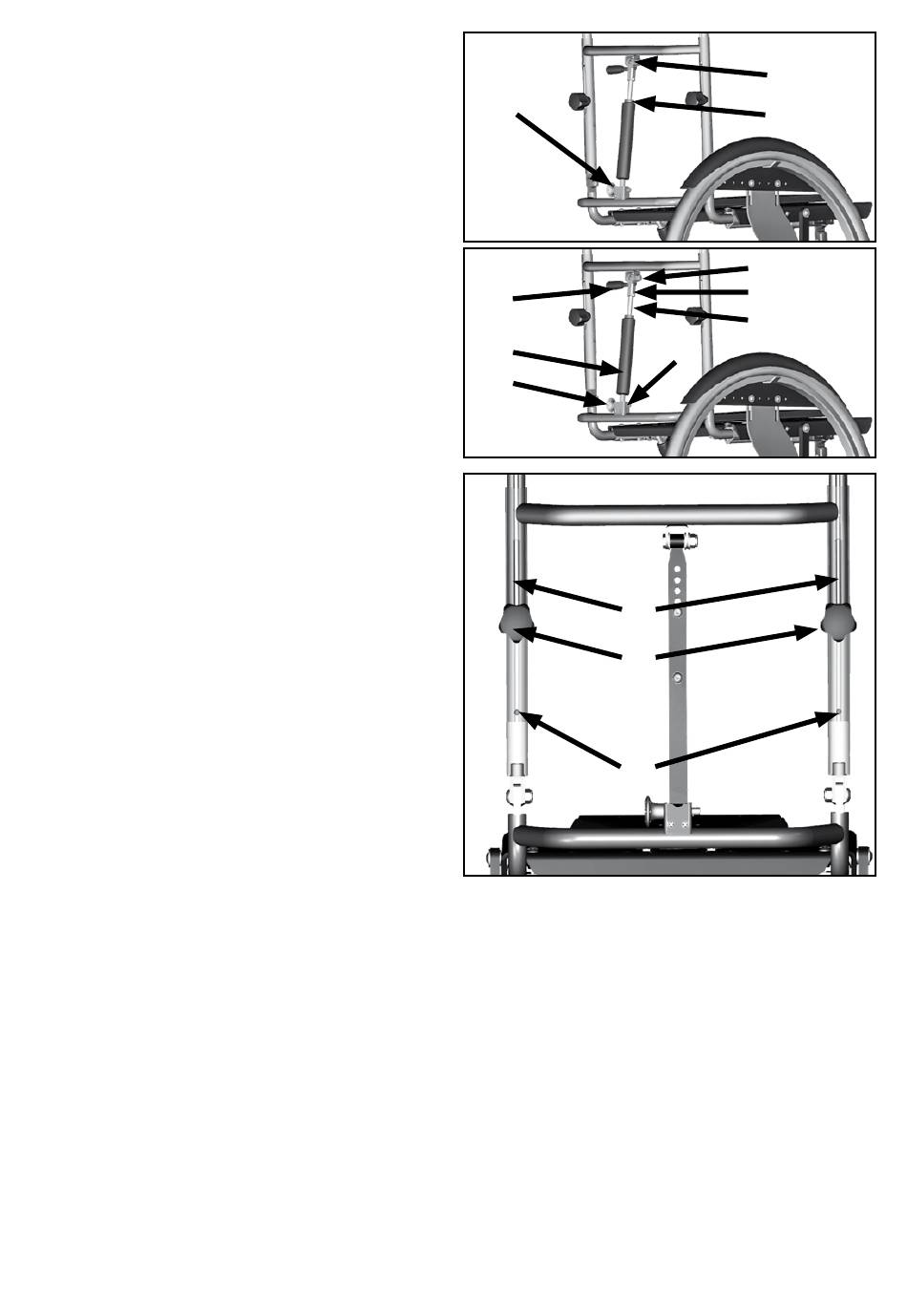

If you want to convert the seat shell from an angle setting
(1) to and angle adjustment (2), then proceed as follows:
• (1) Remove the screws (A),
• remove the lock element (B) and
• remove the old angle setting element (C).
• (2) Place the gas spring (A) at the bottom in the
adapter (B) and lock it with the lock element (C),
• push the release lever (D) of the gas spring (A) and
adjust the length of the piston rod (E) to where the
connection fits in the adapter (F),
• replace the screws (G),
• now let go of the release lever (D) and tighten the
screw (G).
2.4.5 Changing the basic setting of the push
height
Ex works, the push bar is mounted in the lowest setting.
(3) Here, the back pipes are shown transparent so that you
can see the holes in the section tube.
To change the height up to 10 cm higher:
• Remove the star knob screws (A) on both sides
completely (including half shells),
• push the push bar so far up until the two holes (C)
are visible guide slots (B) at the bottom end of the
section tube,
• place the star knob screws (A) (including half
shells) in both of these holes (B) and retighten
them.
(1)
(C)
(2)
(D)
(A)
(C)
(3)
(B)
(A)
(C)
service record
(A)
(B)
(G)
(F)
(E)
(B)
21
