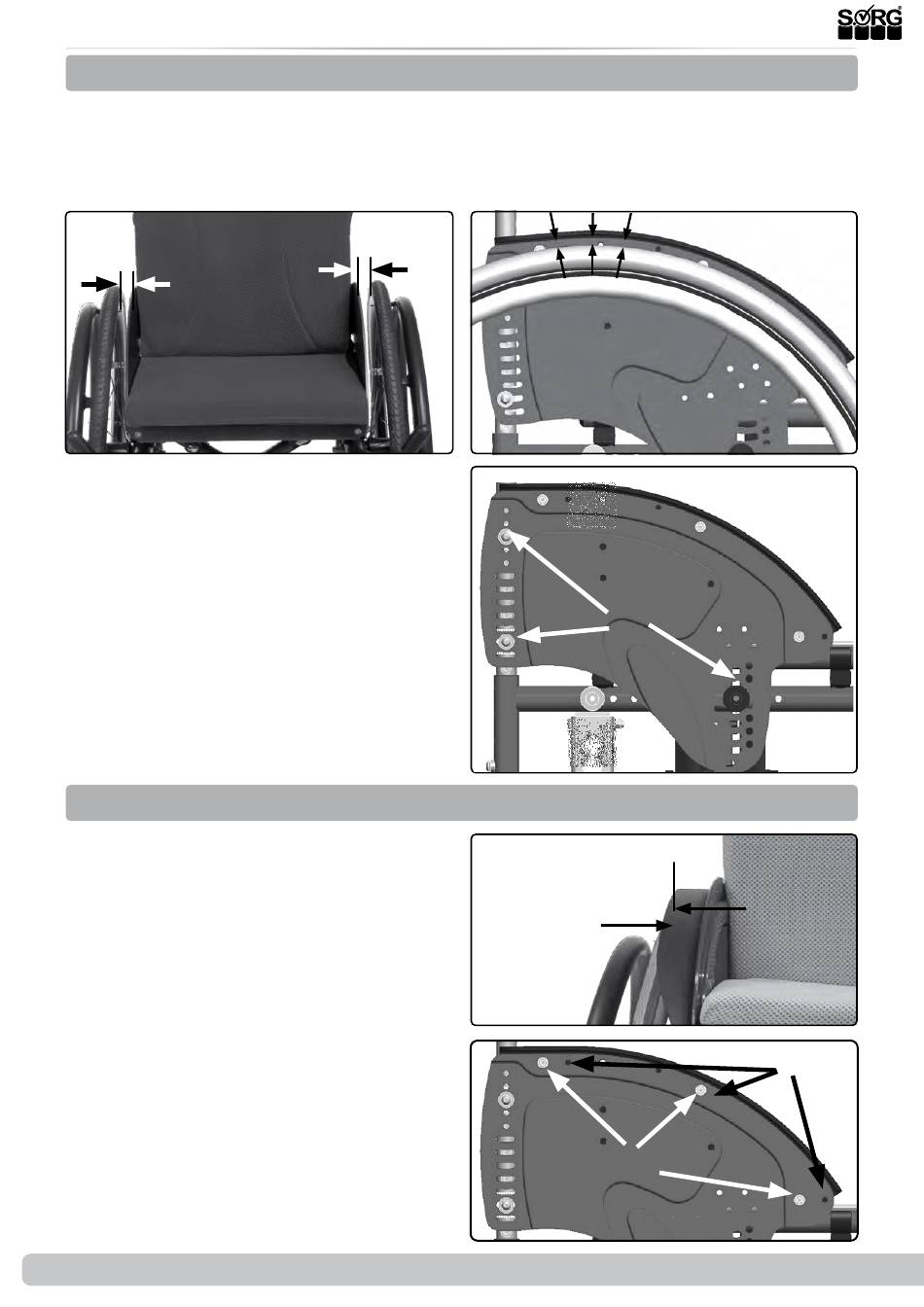

3.4 Assembly Group Side Guards

3.4.1 Setting side guards

(1a+b) The inner space between wheel and side guard should be at least 10 mm distance so
that in case of side strain the side guard does not rub on the wheel cover.
(2) Upward, the outline of the side guard should have a distance of at least 10 mm as long as it
is parallel to the outline of the rear wheel.
(1a)
min. 10 mm
High settings can become hazardous for active
drivers.
(2) To set the height, remove the rear wheels.
Remove the screw connections (B) in the front
and back. Change the position of the side
guard, replace the screws and retighten them.

3.4.2 Skirt guard on the side guard

(3) The skirt guard is placed on the side guard
and should cover the rear wheel to the outer
side of the wheel.
When repositioning the rear wheels in the
front perforated plate, the skirt guards must be
placed in the alternative holes (A). Remove the
screws (B), move the skirt guard, replace all of
the screws and retighten them.
The distance between the upper part of the
wheel and skirt guard should be at least 10
mm so that the skirt guard does not push the
strain on to the wheel.
22 of 40
(1b)
min. 10 mm
(2)
(3)
(4)
Service Record Vector & Vector BSA
ca. 10 mm
(B)
max
(A)
(B)
