3.2 Assembly Group Seat

3.2.4 Growth setting seat width

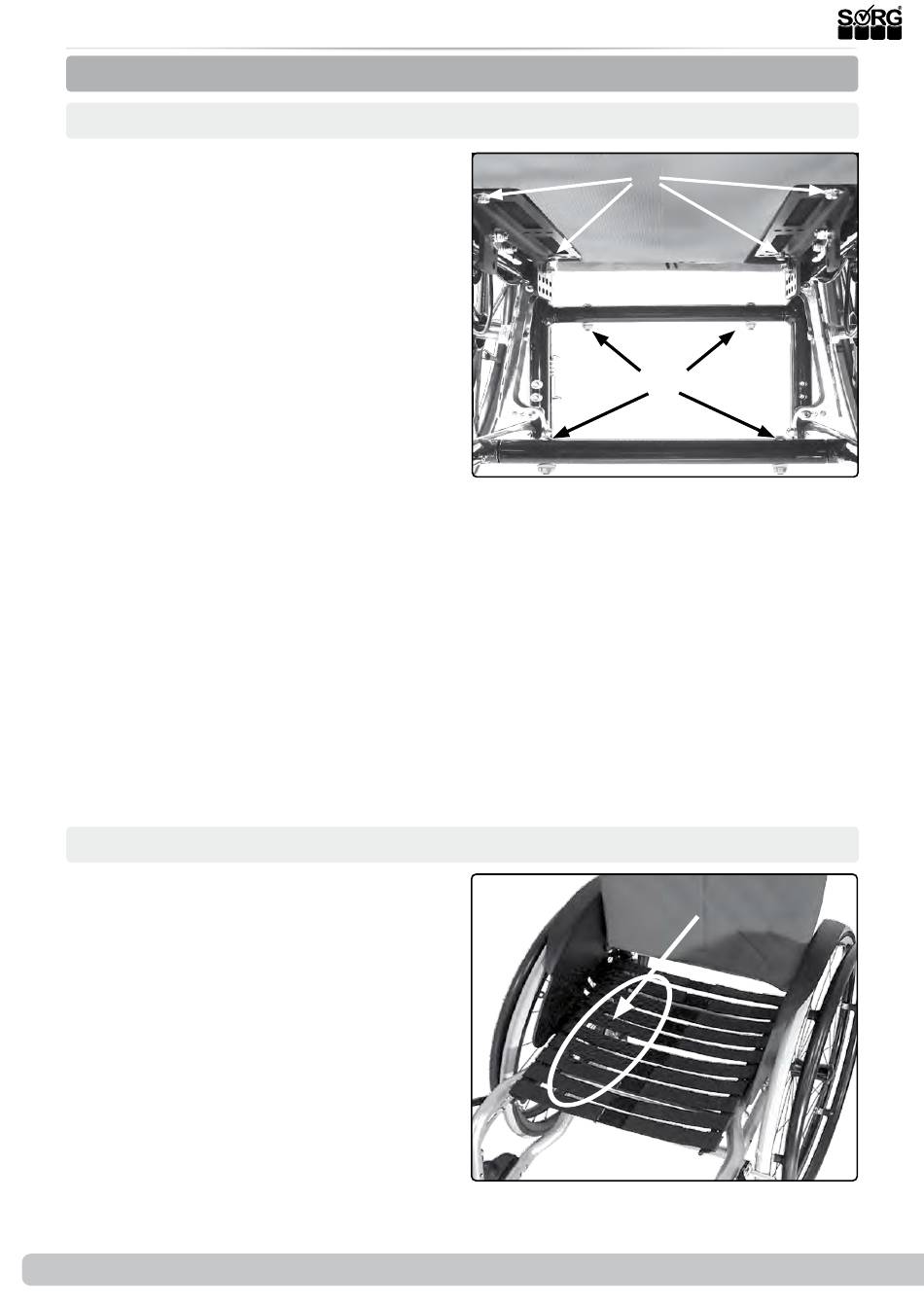

SitzFix:
(1) Remove the driving wheels and, if neces-
sary, the stabilizing rod completely. If available
remove the firm curved back plate or loosen
the Velcro connection of the adjustable back
cover on both sides.
The old firm curved back plate must be re-
placed by a new one with the appropriate
measurements after widening the wheelchair.
Remove the screws (A) on one side at
the bottom of the SeatFix.
Remove the screws of the cross bars (B)
on the same side.
Reposition the cross bars one or two
holes (=1 or 2 cm) in the new position.
Replace the screws (B) and retighten
them.
Replace the screws (A) of the SeatFix in
the new position and retighten them.
Proceed the same on the opposite side.
The cross bars must be extended the
same on both sides.
Close the Velcro connection of the back
cover or place the new firm curved back
plate in place.
(2) Prepare the wheelchair as described above.
Seat Cover:
On one side remove the Velcro con-
nection (A) of the seat cover out of the
guidance.
Remove the screws of the cross bars on
the same side (see above).
Reposition the cross bars in the new
position as described above.
Close the Velcro connection of the seat
cover.
Proceed the same on the opposite side.
The cross bars must be extended the
same on both sides.
16 of 40
(1)
(2)
Service Record Vector & Vector BSA
(A)
(B)
(B)
2022-12-19
