3.5 Assembly Group Brakes

3.5.3 Cable brake

The cable brake is embedded in the clothing protection side part and is be-serves via a cable.
This must be regularly checked for functionality and adjusted if necessary. The adjustment on
the brake cable is identical to that of the drum brake.

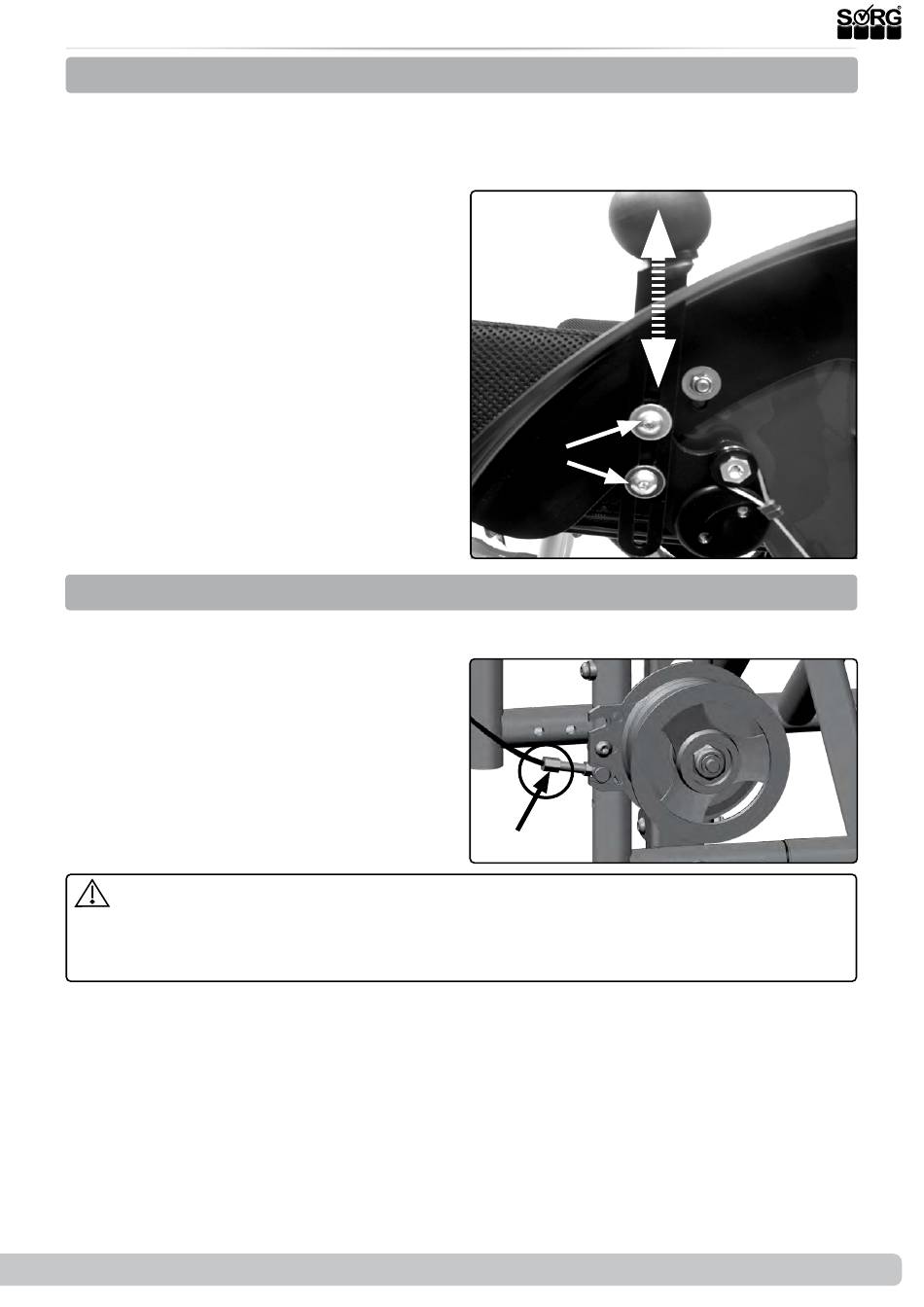

(2) To adjust the length of the brake lever,
loosen the screws (A), adjust it to the desired
position, and retighten both screws.
The distance between brake pressure pin and
tire cover may be max. 6 mm.

3.5.4 Drum brake

The drum brake, unlike the wheel lock, is also suitable as a driving brake.
(3) The adjustment of the drum brake occurs
through a screw on the bottom end of the
brake cable (A). By turning the screw counter
clockwise the brake cable can be tightened.
The brake shoe of the drum brake can react very sensitive to dirt and lint etc. Be sure to
clean the brake pad regularly with a dry paint brush or with a blow dryer. Be sure when re-
moving or attaching the wheels with the quick release axle that you do not break the brake
pad. This would cause a significant safety risk.
