3.6 Assembly group anit tipper

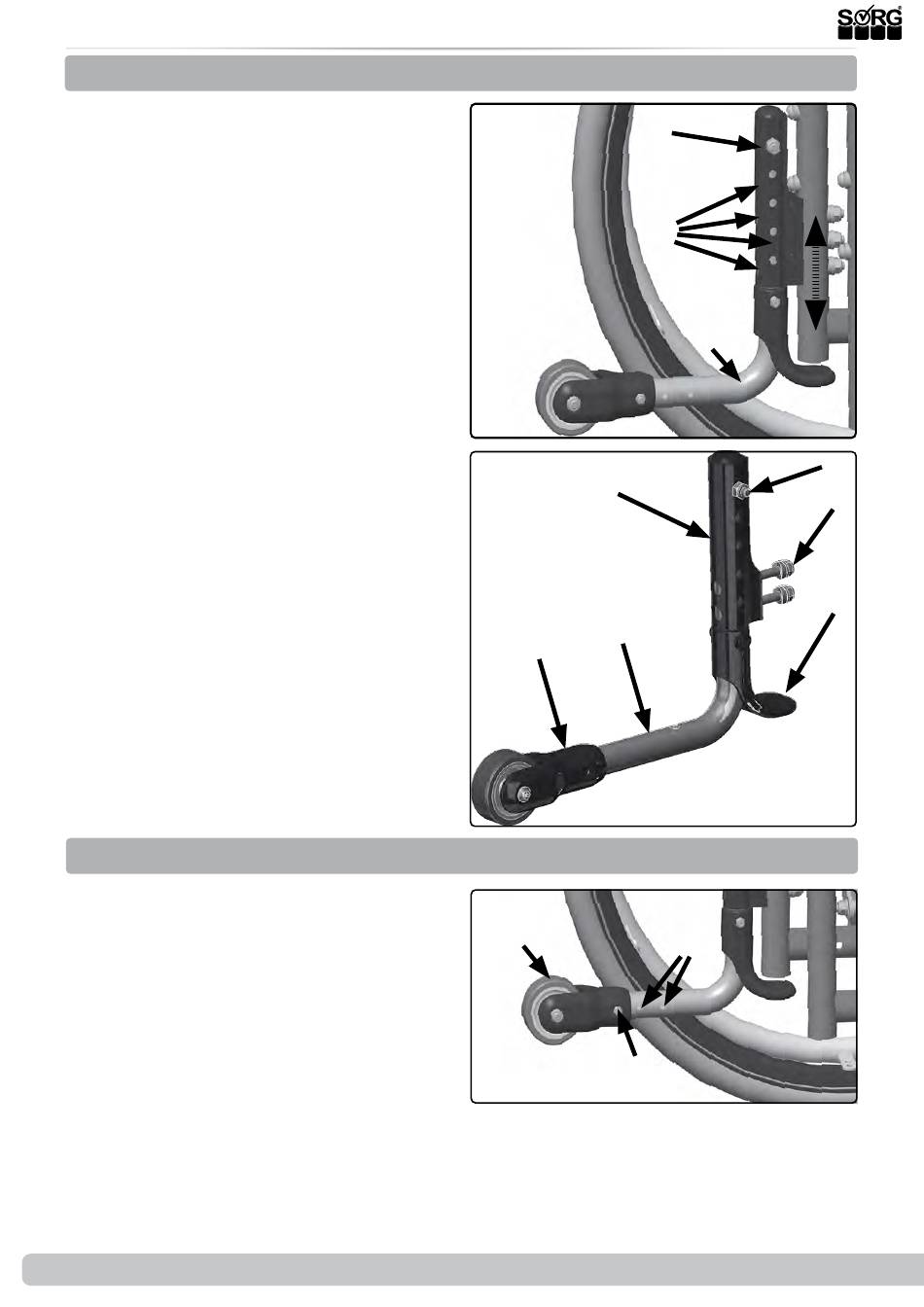

3.6.1 Height setting

• (1) Remove the driving wheels,
• remove the screws (A),
• pull the anti-tipper lever (C) in the hold-
er (D) down,
• displace the screw (A) in the wanted
position (A)
• and retighten it.
Alternatively you can turn the holder 180°.
(1) If you want to set the anti-tipper rather
low, you can turn the anti-tipper holder (A)
180°. For this, remove both screws (E) and the
screw (F), remove the anti-tipper lever (D) and
turn it 180°, screw the anti-tipper holder back
on to the frame tube, replace the anti-tipper
lever in the holder and position it as needed
with the screw (F) in the holes (1B).

3.6.2 Length setting

(3) If the wheelchair if set very active and the
activated anti-tipper sticks out too far back,
then the anti-tipper bail can be shortened.
• Remove the anti-tipper wheel and hold-
er (C) with the screw (B),
• shorten the anti-tipper lever, with a suit-
able saw, to the length wanted
• and replace the anti-tipper wheel and
holder.
• Place the screw (B) in the right hole (A)
and tighten it.
