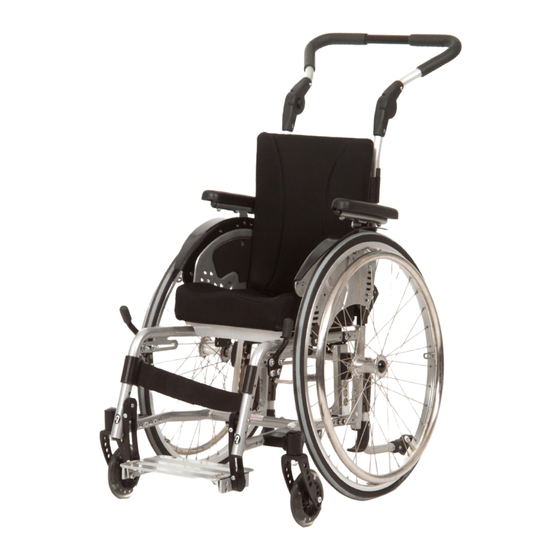

Service Record Vector & Vector BSA
Vector &
Vector &
Vector BSA
Vector BSA
In the following all individual adjustments of the wheelchair are
described. These adjustments require tools and specialised
knowledge. Please leave the adjustments to a qualified rehab
2022-12-19
Service Record
Service Record
consultant.
Service Record Vector & Vector BSA
Besondere Menschen, besondere Lösungen.
Unique people, unique solutions.
ENG
de
1 of 40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vector and is the answer not in the manual?

Questions and answers

Related Manuals for SORG Vector

Summary of Contents for SORG Vector

  • Page 1 Service Record Vector & Vector BSA Vector & Vector & Vector BSA Vector BSA Service Record Service Record In the following all individual adjustments of the wheelchair are described. These adjustments require tools and specialised knowledge. Please leave the adjustments to a qualified rehab consultant.
  • Page 2 © by SORG Rollstuhltech- nik GmbH+Co. KG Benzstraße 3-5, 68794 Oberhausen-Rhein hausen / Germany. Our terms and conditions can be found on our order forms and at www.sorgrollstuhl- technik.de/impressum. 2 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 3: Table Of Contents

    3.9 Assembly Group Truss Pads 3.9.1 Classification 3.9.2 Vertical setting 3.9.3 Horizontal setting 3.9.4 Fine adjustment of the truss pad holder 31 3.9.5 Adjusting to the user 2022-12-19 Service Record Vector & Vector BSA 3 of 40...
  • Page 4 4 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 5: Wheelchair Overview

    3 clothes guards 4 side guard 5 brake leverl 6 seat cushion 7 frame BSA 8 foot plate 9 caster fork 10 caster 11 rear wheel 12 hand rim 13 quick-release axle 2022-12-19 Service Record Vector & Vector BSA 5 of 40...

  • Page 6: General Information

    Phillips screw driver • flat head screw driver • plastic mallet • side cutter • threadlocker (fluid) • bicycle inner tube repair kit • work bench/jaw vise with rubber pads 6 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 7: Explanation Of Symbols

    2022-12-19 Service Record Vector & Vector BSA 7 of 40...

  • Page 8: General Safety Instructions

    Slowly approach abstacles and carefully overcome them so that little force is applied to the casters, rear wheels and the wheelchair as a whole. 8 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 9: Assembly Groups

    Remove the casters in short intervals and clean the forks, axles and the husks thoroughly. Precede the same with synthetic forks. 2022-12-19 Service Record Vector & Vector BSA 9 of 40...

  • Page 10: Seat Height In Back, Seat Slant

    Nm, screw (B) with 7 Nm. A falsely set steering head slant can lead to the casters shaking back and forth and can lead to hindering curve rides (from casters). 10 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 11: Replacing/ Displacing The Caster Adapters And Casters

    Check/correct the distance of the rear wheel to the side guard and skirt guard by attaching the rear wheel. 2022-12-19 Service Record Vector & Vector BSA 11 of 40...

  • Page 12: Rear Wheel Track Balance

    1° 1°** **If necessary, apply 2 sets of plates (2 x inner plate mounted on the inside, 1x outer plate+ 1x inner plate mounted on the outside) 12 of 40 Service Record Vector & Vector BSA 2022-12-19...
  • Page 13 (tightening torque of nuts M18 fitting 35 Nm). Be sure to check the functionality of the knee lever brake and adjust if necessary. Please note the colored discs for the correct adjustment of the camber. 2022-12-19 Service Record Vector & Vector BSA 13 of 40...
  • Page 14 M18x1 SW24 green For Vector and Jump beta 8 ° camber, as well as Jump alpha 5 ° and 8 ° camber, a spacer block for wheelbase extension is required (spare part). Here, the toe is already integrated in the broa- dening.

  • Page 15: Assembly Group Seat

    • Remove all screws on the bottom side of the SeatFix. • Place the seat plate in the new position and retighten all of the screws. 2022-12-19 Service Record Vector & Vector BSA 15 of 40...

  • Page 16: Growth Setting Seat Width

    • Close the Velcro connection of the seat cover. • Proceed the same on the opposite side. • The cross bars must be extended the same on both sides. 16 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 17: Adjusting The Stabilizing Rod

    (A) and screwed on tightly. • As for the three piece stabilizing rod, the middle piece must be displaced in (3b) to the appropriate hole (B) and after- ward screwed together tightly. 2022-12-19 Service Record Vector & Vector BSA 17 of 40...

  • Page 18: Assembly Group Leg Supports

    (3b) Model 6 Vector: inner attachment Model 6 Vector BSA: outer attachment The leg support is optimally adjusted when, with the leg standing at right angles to the footpla- te, the entire thigh rests evenly on the seat cushion / seat molding up to about the width of the finger in front of the hollow of the knee.

  • Page 19: Leg Support Inner Attachment

    180°. Remove all screws and nuts (E), turn the holder and replace and retighten all screws and nuts. Setting the angle (4) Remove the screws (E), set desired angle and retighten the screws. 2022-12-19 Service Record Vector & Vector BSA 19 of 40...

  • Page 20: Leg Support Outer Attachment, Folds Up Sideways

    Fine adjustment of foot plate angle, outer attachment (5) Loosen the locking nut (A), turn the set screw (B) in the wanted position and retighten the locking nut (A). mounting outside 20 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 21: Leg Support Can Be Elevated

    Tighten screw connection (A + B) again. Fine adjustment distance and angle: Loosen setscrews (B and / or C) and set the desired position. Retighten set screws (B and / or C). 2022-12-19 Service Record Vector & Vector BSA 21 of 40...

  • Page 22: Assembly Group Side Guards

    The distance between the upper part of the wheel and skirt guard should be at least 10 mm so that the skirt guard does not push the strain on to the wheel. 22 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 23: Armrest On The Side Guard

    3.4.5 Arm rest/ clothes guards at desk- or long side guard The clothes guards and / or armrests (3-6) are mounted on the desk and long side guards as previously described. 2022-12-19 Service Record Vector & Vector BSA 23 of 40...

  • Page 24: Assembly Group Brakes

    (2) Check the air pressure in the driving wheels first (required details on the tire cover). To ad- just the brake loosen both screws (A) on both sides, place brake in the appropriate position and retighten the screws (A). 24 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 25: Cable Brake

    Be sure when re- moving or attaching the wheels with the quick release axle that you do not break the brake pad. This would cause a significant safety risk. 2022-12-19 Service Record Vector & Vector BSA 25 of 40...

  • Page 26: Assembly Group Anit Tipper

    • and replace the anti-tipper wheel and holder. • Place the screw (B) in the right hole (A) and tighten it. 26 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 27: Assembly Group Tipping Lever

    • screw it on tightly to the frame with the screw (B). It is not possible to mount both an anti-tipper and a tipping lever on the same frame side! 2022-12-19 Service Record Vector & Vector BSA 27 of 40...

  • Page 28: Assembly Group Back

    4 long holes. Should the seat be widened, then the curved back plate must replaced with a new one with the width of the seat. 28 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 29: Setting The Back Angle

    4), you must then reverse this action 2,5 cm otherwise the distance between seat edge and the bottom back edge will be too big and the angle turning point with slide too far up. 2022-12-19 Service Record Vector & Vector BSA 29 of 40...

  • Page 30: Assembly Group Truss Pads

    (5) On the other hand, it can occur by dis- placing the cushions. Remove the covers, remove the screws (A), displace the cushion and retighten the screws (A). After, replace the covers. 30 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 31: Fine Adjustment Of The Truss Pad Holder

    (6A). The ball joint is then fixated by tighten the four screws (B). 2022-12-19 Service Record Vector & Vector BSA 31 of 40...

  • Page 32: Assembly Outdoor Front End

    (± 1 cm per hole). • Firmly screw the new Tuflok screws (A) into the threads at the new position (C). The pipes must have been telescoped on both sides by the same amount. 32 of 40 Service Record Vector & Vector BSA 2022-12-19...
  • Page 33 2022-12-19 Service Record Vector & Vector BSA 33 of 40...

  • Page 34: Repairs/Maintenance/Reinstatement

    If necessary, pack removable textile parts in foil or similar • Secure the wheelchair from rolling away and getting dirty • Store in a dry environment without aggressive environmental influences. 34 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 35: Lifespan

    For safety reason and to maintain product liability, an inspection by your retailer is required at least once a year. This must be carried out and documented according to the following checklist. 2022-12-19 Service Record Vector & Vector BSA 35 of 40...
  • Page 36 Locking mechanisms (tripod springs of push handles, quick-release axles, eccentric clamps, etc.) checked for functionality, anti-tipper checked for firm fit and fuctionality. Oiling: moving parts and bearings oiled Final check: functional check of all mechanical adjusting devices carried out. 36 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 37: Technical Specifications

    3 years at not excessive demand wheelchair life cycle of the wheelchair 5 years Normative requirements The wheelchair meets the requirements of ISO 7176-8 and the requirements against ignition. 2022-12-19 Service Record Vector & Vector BSA 37 of 40...
  • Page 38 3 years at not excessive demand life cycle of the wheelchair 5 years Normative requirements The wheelchair meets the requirements of ISO 7176-8 and the requirements against ignition. 38 of 40 Service Record Vector & Vector BSA 2022-12-19...

  • Page 39: Meaning Of Labels

    5.2 Meaning of labels The meaning of the individual labes is explained in the texts at the respective place. If the type plate is damaged or gets lost, a new one can be ordered from SORG Rollstuhltechnik. Type plate: Manufacturer...
  • Page 40 Service Record Vector & Vector BSA SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 68794 Oberhausen-Rheinhausen Germany Fon +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de company stamp...
