Leg Support Outer Attachment, Folds Up Sideways; Divided Foot Plate, Folds Up Sideways - SORG Vector Service Record

3.3 Assembly Group Leg Supports

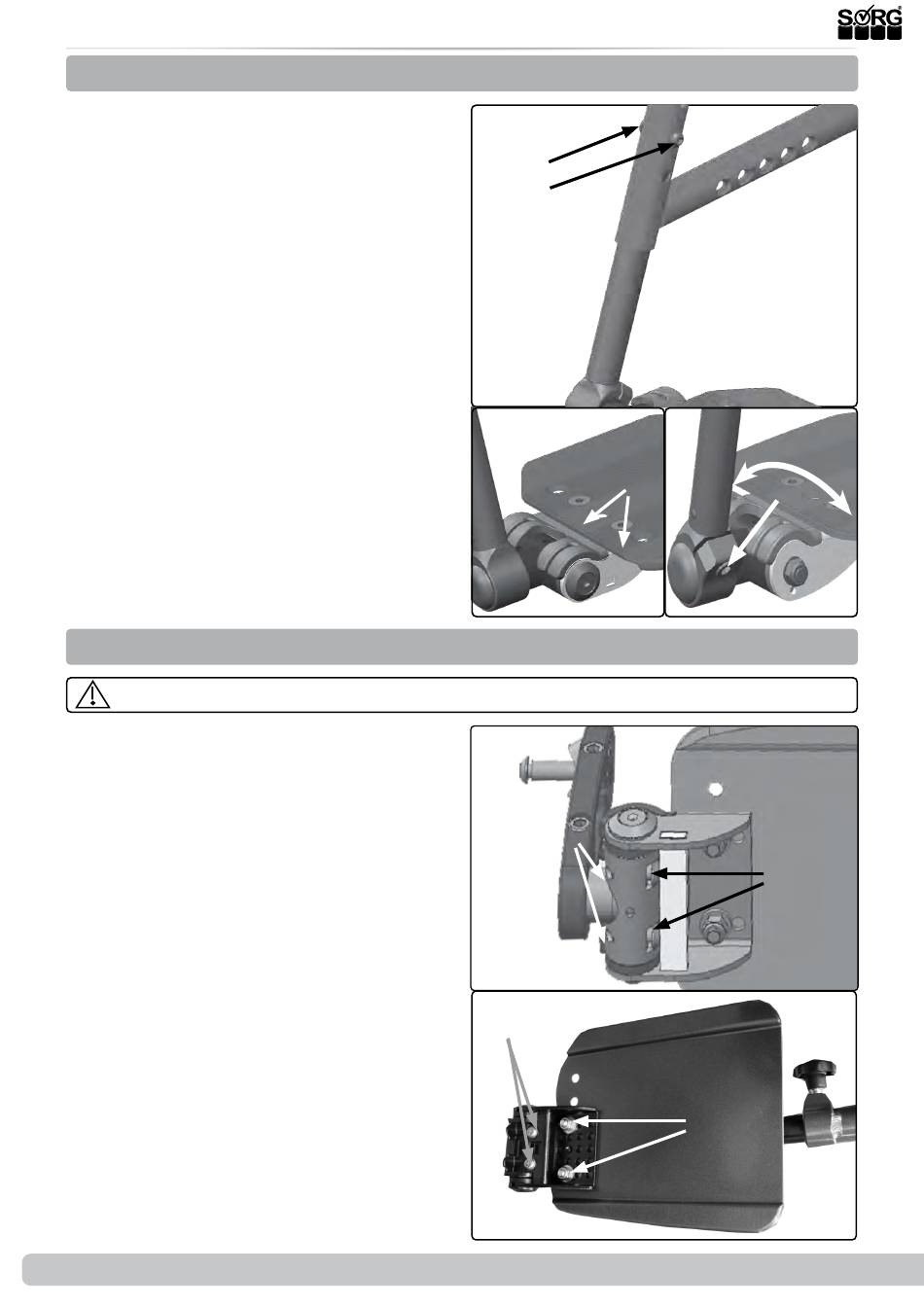

3.3.4 Leg support outer attachment, folds up sideways

Setting the lower leg length
(1) Remove the screws (A) on the outer side of
the frame, including the screws and bushings
(B) on the inner side, on both sides. Choose
the new position, replace the screws and bush-
ings and tighten them.
Setting the depth
(2) The foot plate can be attached in 3 posi-
tions. Remove all screws and nuts (A) on the
foot plate and reposition the foot plate. Re-
place all screws and nuts and retighten them.
Setting the angle
(3) Turn the cylinder screws (B) in the clamp
on both sides far enough until the clamp
connection loosens. Set the wanted angle and
retighten the screws.
The fine adjustments of the locking claw oc-
curs the same with all continuous foot plate
types.

3.3.5 Divided foot plate, folds up sideways

The divided foot plate is not suitable for users with tone dysregulation.
The foot plates are set horizontal ex works.
Should the plates tilt in the course of use, they
can be adjusted as follows:
Fine adjustment of foot plate angle, inner at-
tachment
(4) Loosen the locking nut (A), turn the set
screw (B) in the wanted position and retighten
the locking nut (A).
Fine adjustment of foot plate angle, outer
attachment
(5) Loosen the locking nut (A), turn the set
screw (B) in the wanted position and retighten
the locking nut (A).
20 of 40
(1)
(A)
(2)
(4)
(5)
(A)
Service Record Vector & Vector BSA
(B)
(3)
(A)
mounting inside
(A)
mounting outside
(B)
(B)
(B)
2022-12-19
