Leg Support Inner Attachment; Leg Support Outer Attachment, Continuous - SORG Vector Service Record

3.3 Assembly Group Leg Supports

3.3.2 Leg support inner attachment

Setting the lower leg length

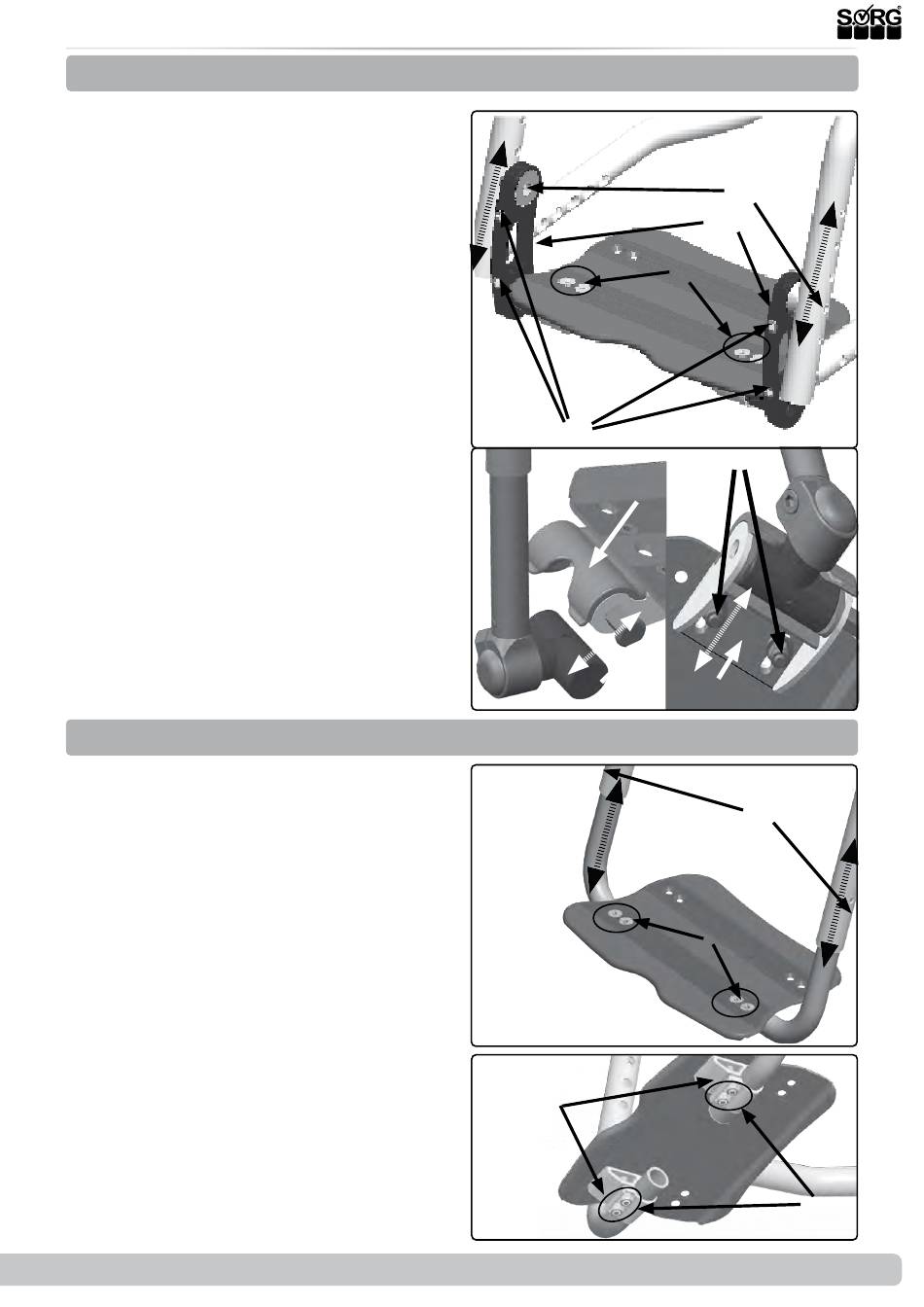

(1) Remove the screws (A) on the outer side of
the frame on both sides. Pull the positioning
piece (B) together with the bushing out of the
frame tube, choose the new position in the
frame tube, replace the positioning piece and
retighten the screws.
Setting the depth and the angle
(1) Remove both screws (C) on both position-
ing pieces, place the foot plate in the wanted
position/angle and retighten all of the screws.
(1) Additionally, the foot plate/s can be dis-
placed by turning them 180°. For this, remove
all screws (D), turn foot plate, replace and
retighten all screws.
Fine adjustments of the locking claw
(2) In order to make fine adjustments on the
locking claw (A), remove the nuts (B) on the
bottom side, move the holder (C) until the foot
plate closes. Retighten the nuts.
The fine adjustments of the locking claw oc-
curs the same with all continuous foot plate
types.

3.3.3 Leg support outer attachment, continuous

The setting of the lower leg length takes place
in the same way for both types "foot plate
continuous" and "foot plate folds up sideways",
on the bore holes of the frame tube.
Setting the lower leg length
(3) Remove the screws (A) on the outer side
of the frame, including the bushings, on both
sides. Choose the new position, replace the
screws and bushings and tighten them.
Setting the depth
You can attach the foot plate in 4 positions.
(3) by repositioning the foot plate(B). Remove
all screws and nuts (C) on the foot plate and
reposition the foot plate. Replace all screws
and nuts and retighten them.
(4) by turning the holders (D) on the bottom
side of the foot plate 180°. Remove all screws
and nuts (E), turn the holder and replace and
retighten all screws and nuts.
Setting the angle
(4) Remove the screws (E), set desired angle
and retighten the screws.
