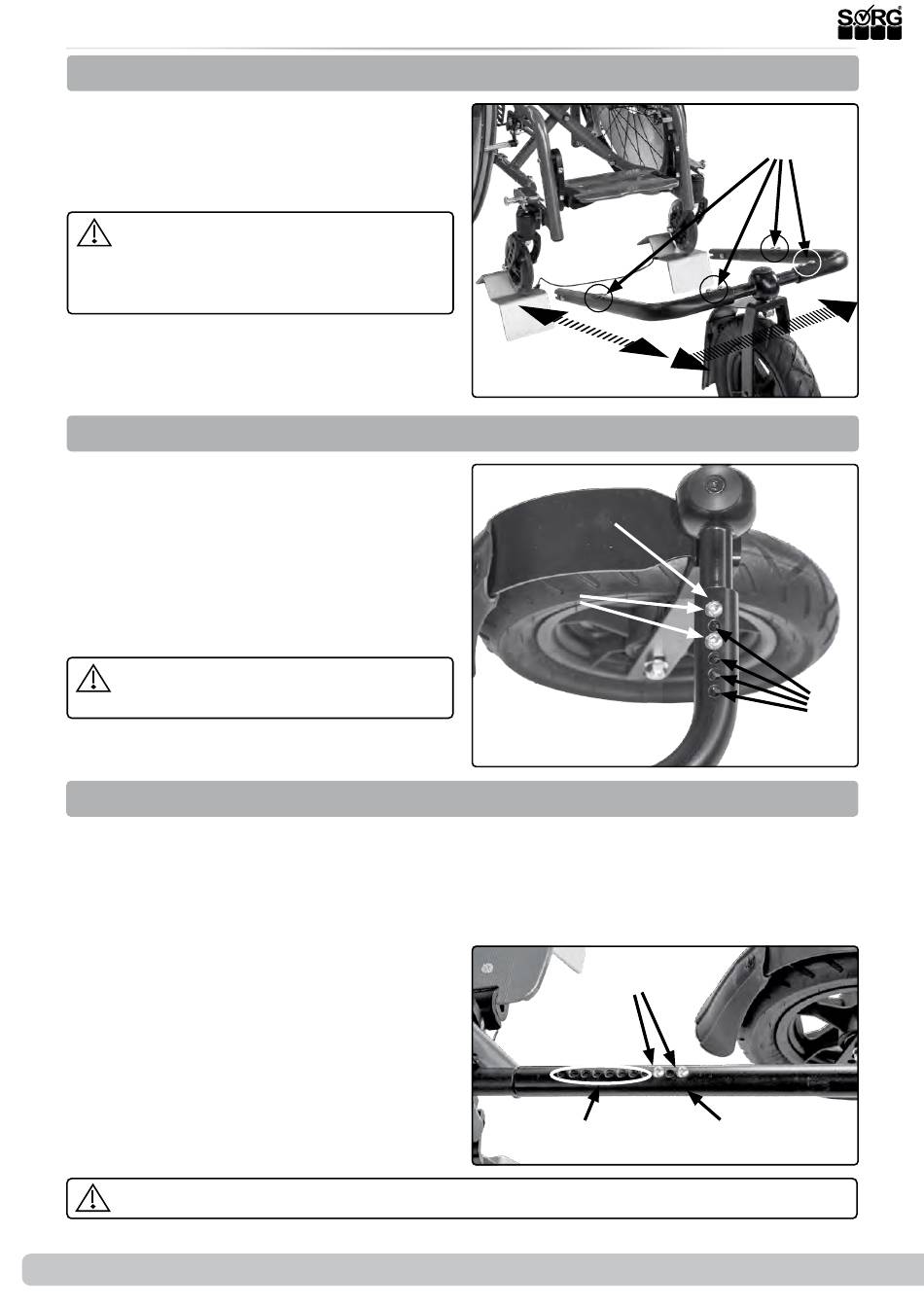

3.10 Assembly Outdoor Front End

3.10.1 General Information

The outdoor front end can be telescoped in
length and width. Each joint (A) is fixed with
two Tuflok screws each. Threads are threa-
ded into the inner tube, into which Tuflok
screws are turned.
After changing the width or length, both
screws must be threaded in at each joint (A).
Tuflok screws are safety screws and should
be replaced with new ones after opening.

3.10.2 Widen

(2) To widen:
• Remove all four Tuflok screws (A) on
both sides of the wheel and discard
them!
• Telescope the tube (B) symmetrically on
both sides to the desired dimension (±
1 cm per hole).
• Firmly screw the new Tuflok screws (A)
into the threads at the new position (C).
The pipes must have been telescoped on
both sides of the wheel by the same amount.

3.10.3 Extend

Extend / shorten causes:
• Long wheelbase = soft ride comfort with large shock absorption but large turning circle,
• short wheelbase = significantly reduced power during active driving, small turning circle
and normal shock absorption.
(3) To extend:
• Remove all four Tuflok screws (A) on
both sides and discard them!
• Extend / shorten the tube (B) symme-
trically on both sides to the desired
dimension (± 1 cm per hole).
• Firmly screw the new Tuflok screws (A)
into the threads at the new position (C).
The pipes must have been telescoped on both sides by the same amount.
