- Page 1 User Manual Move User Manual...
-
Page 2: Imprint
COPYRIGHT © by SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5, 68794 Oberhausen-Rheinhausen. texts and pictures in this user manual underlie the international copyright protection and are not allowed to be published without our consent – not even in excerpts! -
Page 3: Table Of Contents
TECHNICAL DATA 3.1.2 Drum brake wheels 4.7.1 Measurements and dimensions 3.1.3 Double hand rim 4.7.2 LABEL MEANINGS CASTERS 4.7.3 Measurements Mio Move DOCUMENTATION YEARLY SPECIAL HAND RIMS INSPECTION 3.3.1 Knob hand rims 3.3.2 Hand rim covers / Maxgrepp hand rims BACK 3.4.1 Tilting... -
Page 4: Wheelchair Overview

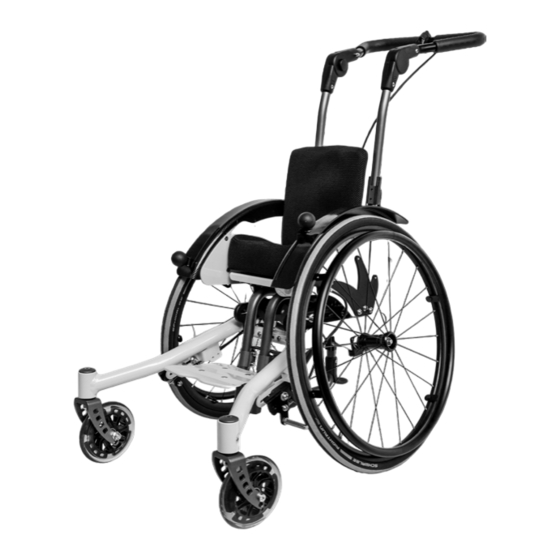

Mio Move Wheelchair overview frame seat plate seat cushion wheel lock user lever wheel cover side guard back cushion height adjustable push bail release lever for seat tilting 10. angle adjustment for push bail 11. foot plate 12. connection tube for leg support 13. -
Page 5: Preamble
Jump to your physical situation. ATTENTION Under the following circumstances and/or 1.2. SIGNS AND SYMBOLS symptoms, Mio Move may only be used if discussed thoroughly with the doctor or therapist in charge of ATTENTION the treatment: This is how individual-related safety aspects of •... -
Page 6: Application
Mio Move SPECIFICATION MIO MOVE RECEPTION PLEASE NOTE Mio Move is an active wheelchair that grows with your DELIVERY child, with a mechanical tilt function in a physiologic Each wheelchair is mounted, tested for functionality pivot point for children and adolescents: and correctness in our works and packaged into •... -
Page 7: Service And Maintenance
User Manual Safety Instructions SERVICE AND MAINTENANCE GENERAL INDICATIONS READ According to § 33 subparagraph 1, clause 4, ATTENTION [German] SGB V, the responsibility of maintenance, The risk of injuries occurs on all rotatable and repairs and replacement lies with the benefactor. turning parts. -
Page 8: Handling
Mio Move HANDLING ATTENTION 2.2.1 Getting in and out Hand rims heat from friction. If necessary, use leather gloves as used for cycling but NEVER wool ATTENTION gloves. (1) Getting in and out can only occur on a flat surface and with ACTIVATED WHEEL LOCK. Activate the tilt safety for each transfer and always turn the 2.2.3 Danger of tipping and flipping over... -
Page 9: Up And Downhill
User Manual 2.2.4 Up and downhill GRABBING OBJECTS ATTENTION Grabbing objects requires much practice and Keep in mind the higher strain in order to drive/ experience. Slowly familiarize yourself, with the help push or brake going up or down a hill. of an experienced and strong person, with this action. -
Page 10: Overcoming Obstacles
Mio Move OVERCOMING OBSTACLES WHEEL LOCK A WHEELCHAIR IS NOT FOR CARRYING. For this ATTENTION reason avoid stairs! Whenever possible, ramps THE KNEE LEVER BRAKES ARE ONLY THERE TO PUT or elevators should be used to overcome height THE WHEELS IN A RESTING POSITION. THEY ARE differences. -
Page 11: Anti-Tipper
User Manual CASTERS ATTENTION Cable controls are high-maintenance! The clamp ATTENTION screws on the Bowden cable need to be checked on Casters which are not correctly adjusted or driving a regular basis and retuned if necessary. too fast, especially downhill, can cause the casters Check the functionality of the brakes regularly! The to dangerously flap back and forth. -
Page 12: Transport In Public Transportation
Mio Move 2.8.1 Transport in public transportation Our successfully tested wheelchairs are provided In every public transportation, a spot must be with this international provided to place the wheelchair according to the EG- symbol on the type sign guideline 2001/85/EG. -
Page 13: Handling
User Manual Handling WHEELS 3.1.1 Quick release axle wheels All of our rear and 12” wheels are equipped with quick release axles for fast removal. (1) To release or apply the quick release axle, push the lock button (A) in the middle of the wheel nub and release it after the action. -
Page 14: Double Hand Rim
Mio Move 3.1.3 Double hand rim Moving a wheelchair with a dual hand rim requires a lot of practice. Familiarize yourself, with the help of an experienced carer and in familiar surroundings, with the technology of this type of particular way of driving. -
Page 15: Special Hand Rims
User Manual 3.4.1 Tilting SPECIAL HAND RIMS 3.3.1 Knob hand rims To release the tilt function: • (1-3) pull the lever (A) up and ATTENTION INJURY RISK! Regard that the knob hand rims turn when you are • squeeze it until the desired position is being pushed! reached. -
Page 16: Adjusting The Back Angle
Mio Move 3.4.2 Adjusting the back angle 3.4.3 Folding the back down To adjust the back angle: To fold down for transport • (1+2) turn the lever (A) to the right or the left • (3+4) remove the seat cushion and the back so that the bolts (B) unlock on both sides. -
Page 17: Back Extension Retractable
User Manual 3.4.4 Back extension retractable (6+7) To extend the retractable back: • remove the head cushion (A), • loosen the star knob screws (B) on both sides, • pull the back extension equally, without tilting it, up, • turn both star knob screws tightly and •... -
Page 18: Push Aids
Mio Move PUSH AIDS (1) For all various push aids (push handle, push bail) please regard: ATTENTION ALL PUSH AIDS ARE ONLY THERE TO PUSH THE PERSON IN THE WHEELCHAIR; NOT TO CARRY THEM. ATTENTION NEVER CARRY THE WHEELCHAIR WITH PASSENGER OVER OBSTACLES (STAIRS, STEPS, CURB SIDES ETC.). -
Page 19: Push Bails /Push Handles
User Manual 3.5.1 Push bails /push handles Proceed in the same manner with all kinds of push aids. Height adjustment: • (1) open the eccentric clamp/s (A), • place the push handle/s or bar (B) in the desired position, • close the eccentric clamp (A) tightly. Attaching: •... -
Page 20: Angle Adjustment Push Bail
Seat and side guard are screwed on to the frame of Adjusting the angle on the push bail: the Mio Move. For safety reasons, please have all • (1) push the locking knobs (A) on both sides at work for the setting (seat height/grip point etc.) done the same time, •... -
Page 21: Standard Leg Support
User Manual 3.7.1 Standard leg support (1) To get in: • Secure the wheelchair from rolling away by locking the wheel lock and activating the anti-tipper! • If necessary, unlock the footrest/s (A) with the latch (3D). • Fold the footrest (A) back. •... -
Page 22: Leg Rest
Mio Move 3.7.3 Leg rest 3.7.4 Locking the footrest/s (3+4) To unlock: (1+2) In order to adjust the position: • Pull the latch (A) out of the slot (B) • Loosen the clamp levers (A) underneath the • and turn it 90°... -
Page 23: Brakes
User Manual BRAKES ATTENTION THE KNEE LEVER BRAKES ARE ONLY TO BE USED FOR PLACING THE WHEELS IN A RESTING POSITION. THEY ARE NOT TO BE USED TO BRAKE WHILE DRIVING. ATTENTION While braking, forces occur that you must be able to handle. A wheelchair is generally (when physically possible) slowed down when simultaneous pressure is applied with both hands on the hand rims. -
Page 24: Drum Brake As Driving Brake
Mio Move 3.8.3 Drum brake as driving brake In order to brake: • (1) Pull the control lever up (A) and apply the same pressure to both brake levers, otherwise you will swerve unwillingly. • (2) Only use the blocking lever (B) to secure the control levers in a locked position. -
Page 25: Anti-Tipper
User Manual Anti-tipper 3.10 HEAD RESTS (1) To activate There are two versions of the head rest - with a • push the anti-tipper (A) down using the tread square-type tube (2) or a special section tube (3). element (B), Both kinds can be adjusted to the user in the same •... -
Page 26: Therapy Table
Mio Move 3.11 Therapy table (1) Height setting • loosen the setscrew (A), • place the therapy table in the desired position • and retighten the setscrew(A). Angle setting • loosen the clamp lever (C), • place the therapy table in the desired position •... -
Page 27: Push Aid For Outside
User Manual 3.14 PUSH AID FOR OUTSIDE (OUTDOOR FRONT END) (1) With the Outdoor Front End it is made possible to drive on uneven surfaces. Additionally, spasm causing vibrations when driving are visually reduced. Mounting the Outdoor Front End • Close the wheelchair’s wheel locks. •... - Page 28 Mio Move...
-
Page 29: Repairs And Maintenance
User Manual Repairs and Maintenance DISPOSAL REPAIRS � INDICATION The wheelchair can only be disposed of after consultation and approval from your benefactor. ATTENTION Do not conduct any reparations and /or maintenance As a general rule, the disposal of the wheelchair must work yourself. -
Page 30: Tire Change
Mio Move TIRE CHANGE MAINTENANCE 4.5.1 Cleaning and care With a little bit of technical skill and suitable tools, you can fix a flat tire yourself. It is advisable to always carry a repair � INDICATION kit and an air pump for emergencies. Suitable air pumps Never treat the wheelchair with a high pressure cleaner! can be purchased at your specialty store. -
Page 31: Disinfection
User Manual 4.5.2 Disinfection SERVICE/INSPECTION 4.6.1 Check lists To disinfect, water based agents should be used such as: Terralin, Quartamon, Med or Sagrotan. A yearly inspection from a qualified medical store is inevitable for the safe use of the wheelchair and for a The indications on application given by the manufacturer long lifespan. -
Page 32: Check List Yearly Inspection
Mio Move 4.6.2 Check list yearly inspection 4.6.3 Service list PREPARATORY WORK The following service list is based on our long-term If necessary, we recommend cleaning the wheelchair or experience and is a mandatory guideline with which you individual parts of it prior to inspection. - Page 33 User Manual WHEN? WHAT? COMMNENTS Before each use Check wheels/quick release ATTENTION axles for firm fit. Too low air pressure and/or dirty tires as well as You must not be able to pull the adverse weather circumstances can reduce the brake wheel out of the quick release efficiency drastically and put you in danger.
-
Page 34: Technical Data
On the type by 22“ 716 mm by 24“ 780 mm label on the frame of the Mio Move, the following absolute height min. 620 mm without push meanings resulted (see below): of wheelchair handles! max. -
Page 35: Documentation Yearly Inspection
User Manual DOCUMENTATION YEARLY INSPECTION work done according additional work carried out date, signature, to check list stamp medical supply store,... - Page 36 Mio Move Your Specialized Retailer company stamp SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 D-68794 Oberhausen-Rheinhn. Tel +49 7254-9279-0 Fax +49 7254-9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de Technical changes and misprints reserved...
