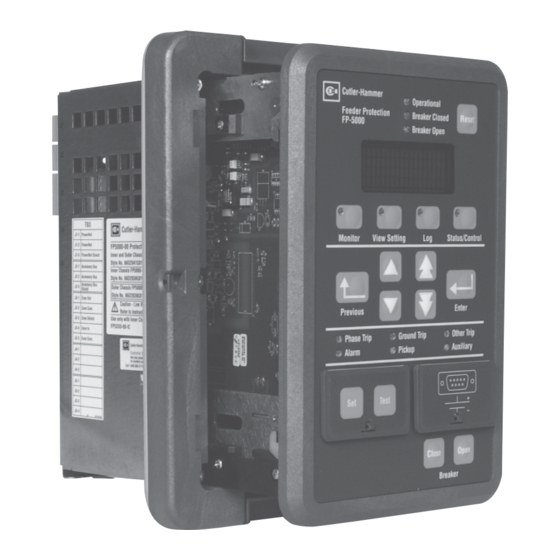

FP 5000
INSTRUCTION
LEAFLET
INSTRUCTIONS FOR THE
IL17569C
FP 5000 PROTECTIVE RELAY
IL17569C
For more information visit:
www.eatonelectrical.com
Effective: 12/05
