Quick Links

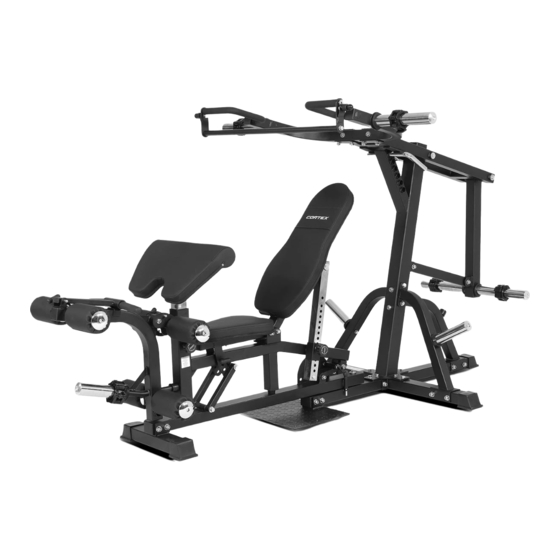

GSL1 LEVER MULTI
STATION
OWNER'S MANUAL
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for future
reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the GSL1 and is the answer not in the manual?

Questions and answers

Related Manuals for Cortex GSL1

Summary of Contents for Cortex GSL1

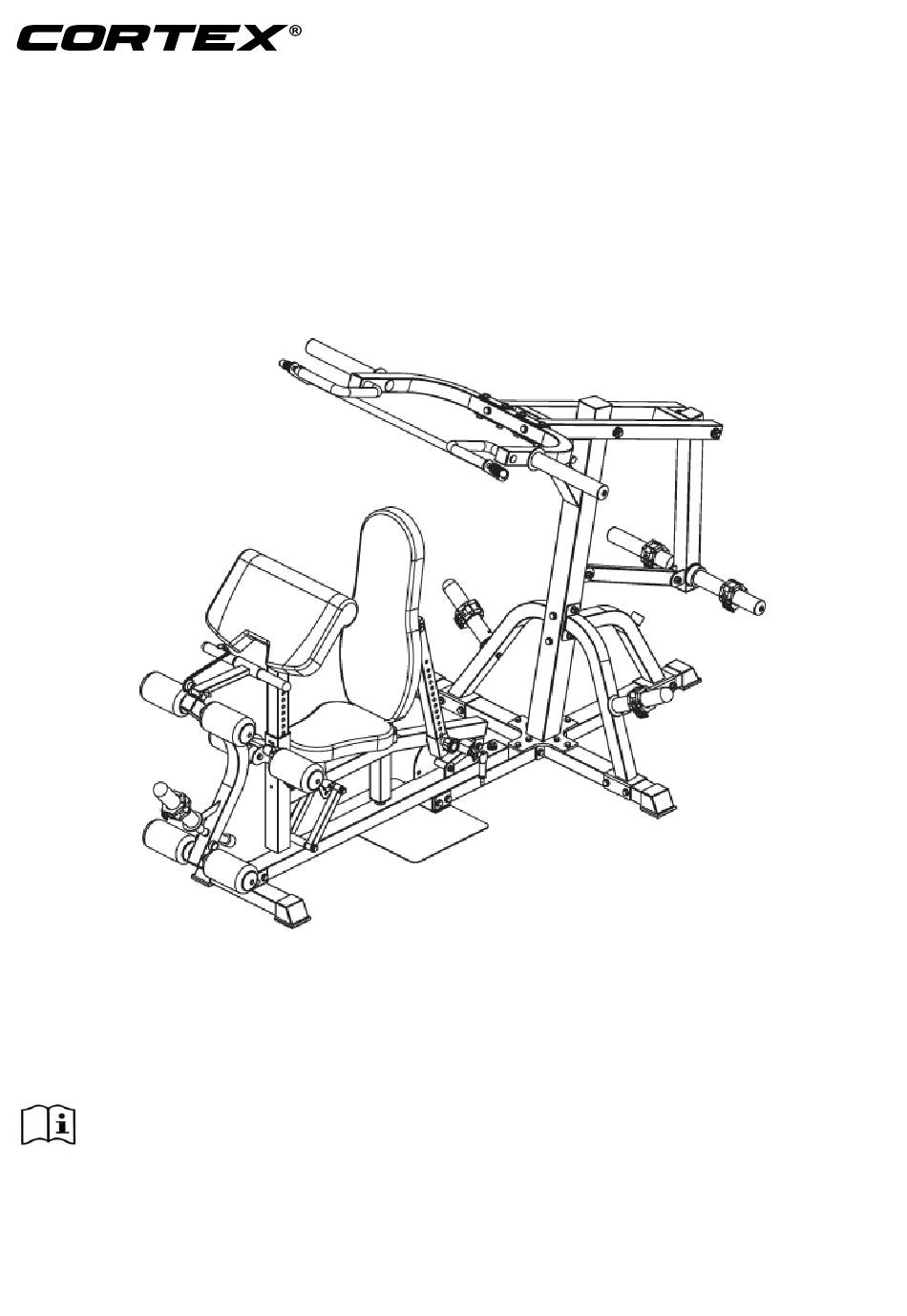

  • Page 1 GSL1 LEVER MULTI STATION OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS CARE INSTRUCTIONS PARTS LIST ASSEMBLY INSTRUCTIONS WARRANTY...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this product. Please keep this manual with you at all times It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. Please note: It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  • Page 4: Care Instructions

    The equipment is not suitable for therapeutic use. CARE INSTRUCTIONS • Lubricate moving joints with silicon spray after periods of usage. Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects. • The machine can be kept clean by wiping it down using dry cloth. •...

  • Page 5: Parts List

    PARTS LIST Description Note Qty. Under main frame Feet pad Side ground tube Stand tube Right side support tube Left side support tube Back support tube Hexagon bolt M12*95 Washer φ12 Lock nut Hexagon bolt M10*25 Washer φ10 Hexagon bolt M12*105 Side support tube Ground tube...
  • Page 6 Shoulder press bending tube Push shoulder part Barbell bar plate inner rod L shape safely hook Hexagon bolt M12*75 Hexagon bolt M12*70 Hexagon bolt M12*55 Barbell clamp collar φ50 Bolt M12X70 Bolt M12X75 Shoulder press set Barbell plate inside tube Tube cap φ60*60 Stainless steel outer casing...

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 1 – Exploded diagram Description Note Qty. Under main frame Feet pad Side ground tube Stand tube Right side support tube Left side support tube Back support tube Hexagon bolt M12*95 Washer φ12 Lock nut Hexagon bolt M10*25 Washer φ10...
  • Page 8 Step 1 – Instructions 1. Connect feet pad-2 and under main frame-1 using M12*95 hexagon bolt- 8, φ12 washer-9 and lock it using M12 lock nut-10. 2. Assemble side ground tube-3 on two side of the under main frame-1 using M12*95 hexagon bolt-8, φ12 washer-9 and lock it using M12 lock nut-10.
  • Page 9 Step 2 – Exploded diagram Description Note Qty. Side support tube Ground tube Short ground tube Back slope support tube Bend frame Flat head bolt Rotation axle φ12*92 Hexagon bolt M12*95 Washer φ12 Lock nut Hexagon bolt M10*25 Washer φ10 Hexagon bolt M12*80 Lock nut...
  • Page 10 Step 2 – Instructions 1. Assemble short ground tube-16 on ground tube-15 using M12*95 hexagon bolt-8, φ12 washer-9 and lock it using M12 lock nut-10. 2. Assemble ground tube-15 on under main frame-1 using M10*25 hexagon bolt-11, φ10*φ30 big washer-24 and plug flat head bolt-19 in suitable position.
  • Page 11 Step 3 – Exploded diagram Description Note Qty. Inside adjustable tube Flat head bolt Back cushion adjust rotation part Leg lift bending tube Pull bar Washer φ10 Hexagon bolt M10*25 Magnetic pin Chest pad adjust tube Chest pad Washer φ8 Seat cushion Hexagon bolt M8*55...
  • Page 12 Step 3 – Instructions 1. Assemble leg lift bending tube-27 on bend frame-18 using M10*25 hexagon bolt-11, φ10 washer-12. Screw off the inner bolt of sponge rod-new-38 and assemble it on leg lift bending tube-27 using internal hexagonal wrench to lock nut. Fix pull bar-28 and plug flat head bolt-19 on suitable position.
  • Page 13 Step 4 – Exploded diagram Description Note Qty. Shoulder press double connecting Back barbell hanging tube High pull connecting tube Shoulder press bending tube Push shoulder part Barbell bar plate inner rod L shape safely hook Hexagon bolt M12*75 Washer φ12 Lock nut Hexagon bolt...
  • Page 14 Step 4 – Instructions 1. Assemble high pull connecting tube-42 on stand tube-4 using M12*55 hexagon bolt-49 φ12 washer-9 and lock it using M12 lock nut-10. 2. Assemble back barbell hanging tube-41 on high pull connecting tube-42 using M12*55 hexagon bolt-49 φ 12 washer-9 and lock it using M12 lock nut-10.

  • Page 15: Warranty

    5. WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
