Cortex Multi Gym SM25 User Manual page 22

79 M10 x 15mm
Φ 10
85
78 M8x16mm
84 M8
85
86
78
86
78

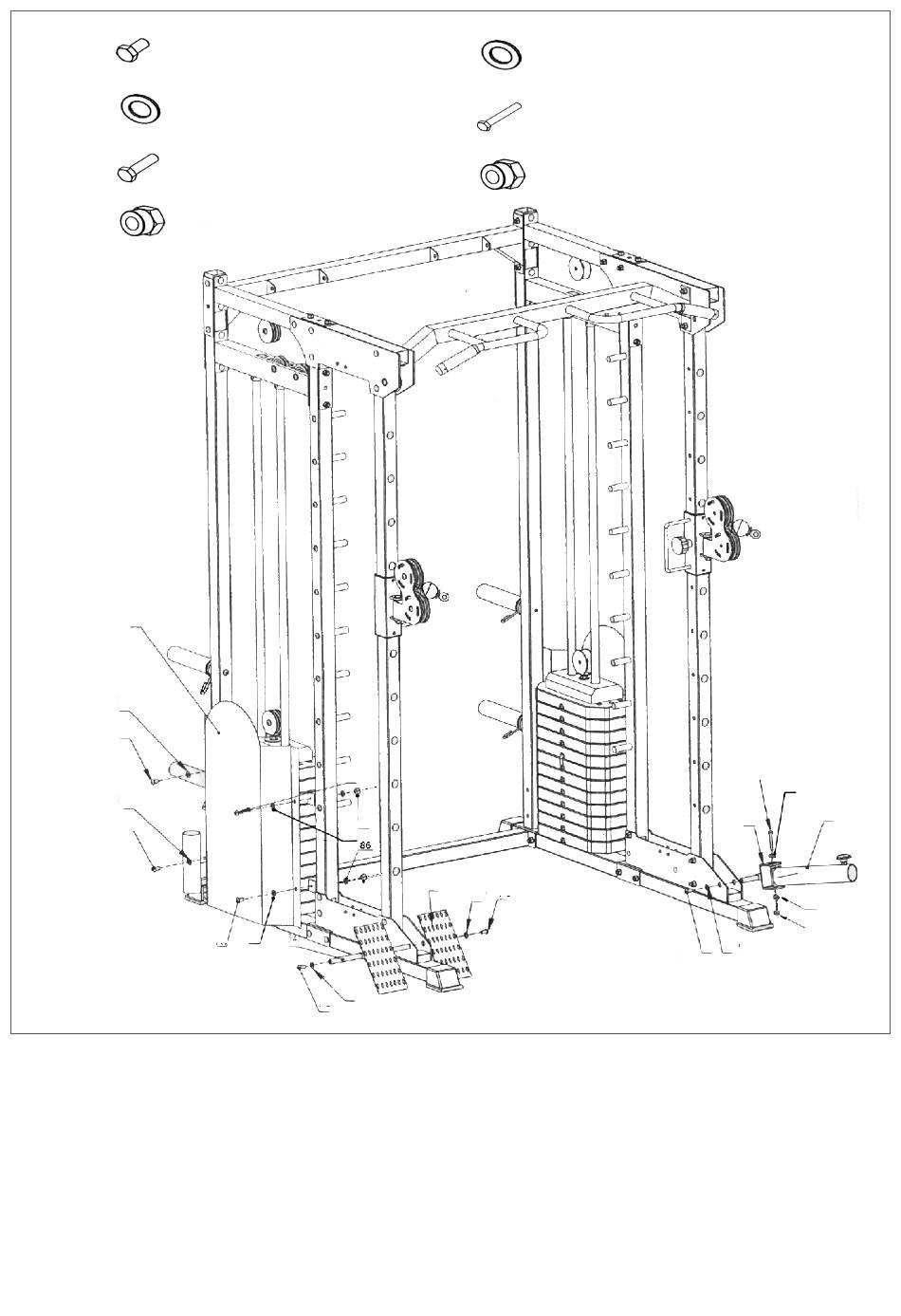

STEP 14
1. Secure weight covers 2x part 25 using:
- 8x part 78 - 8x part 86
2. Secure row foot plate part 33 using:
- 2x part 79 - 2x part 85
22 | ASSEMBLY INSTRUCTIONS
3pcs
5pcs
8pcs
8pcs
78
84
86
84
86
78
85
79
Φ 8
86
71 M10 x 90mm
83 M10
33
79
85
3. Secure landmine post part 45 to part 40 using:
- 1x part 71 - 2x part 85
4. Secure part 40 to part 17 using:
- 1x part 79 - 1x part 85
16pcs
1pc
1pc
71
85
45
40
85
83
85
79
- 1x part 83
