Cortex BN-10 FID BENCH Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for
future reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our
website at www.lifespanfitness.com.au
BN-10 FID BENCH
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BN-10 FID BENCH and is the answer not in the manual?

Questions and answers

Related Manuals for Cortex BN-10 FID BENCH

Summary of Contents for Cortex BN-10 FID BENCH

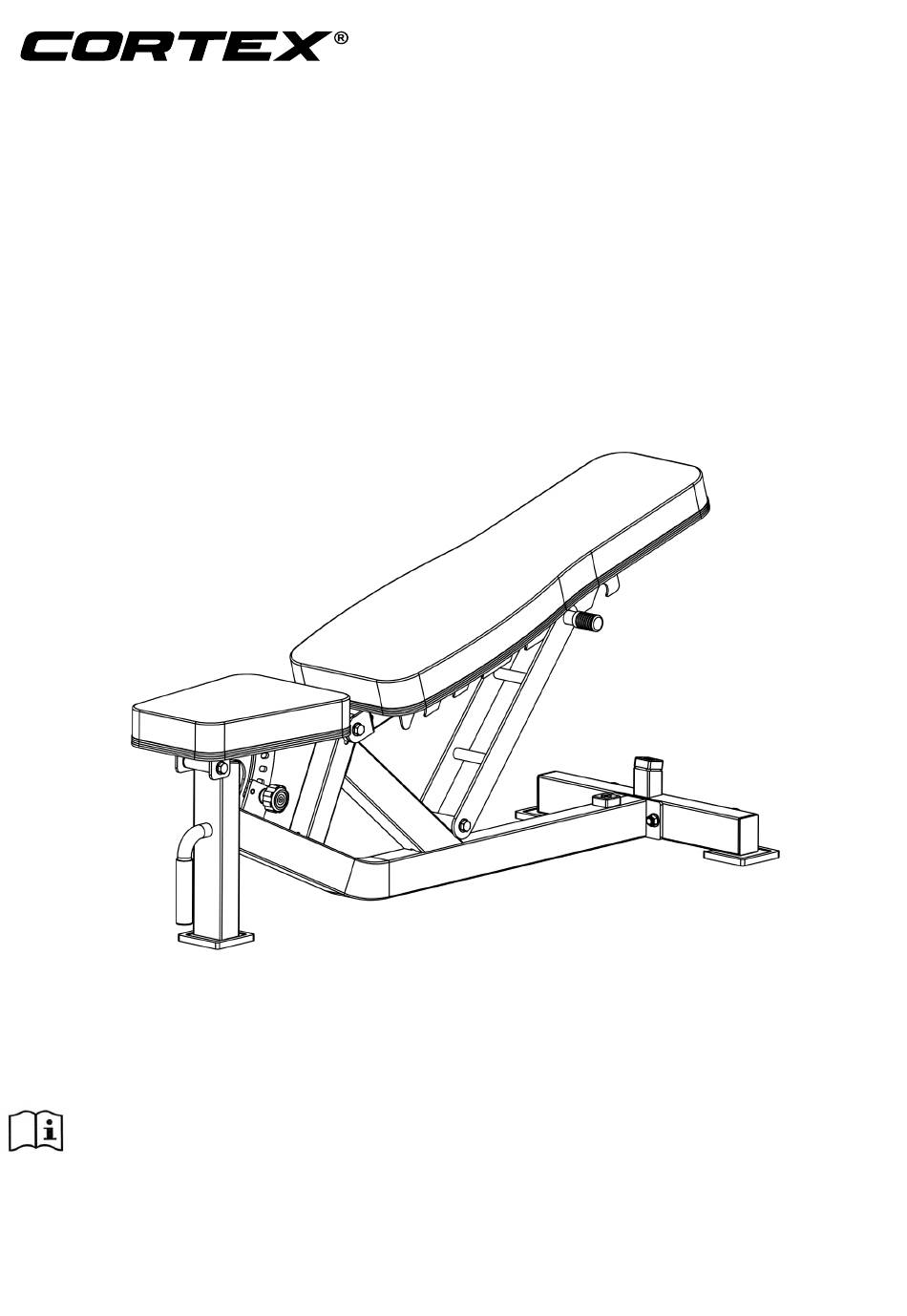

  • Page 1 BN-10 FID BENCH OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our...
  • Page 2 TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS ................... 3 2. CARE INSTRUCTIONS ......................3 3. PARTS LIST ..........................4 4. ASSEMBLY INSTRUCTIONS ....................5 5. WARRANTY ..........................8...
  • Page 3 1. IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this product. Please always keep this manual with you. It is important to read this entire manual before assembling and using the equipment. Safe and • effective use can only be achieved if the equipment is assembled, maintained, and used properly. Please note: It is your responsibility to ensure that all users of the equipment are informed of all •...
  • Page 4 3. PARTS LIST Description Qty. Main frame Rear bottom tube Seat cushion plate Back cushion tube Support frame Support axis Seat cushion Back cushion Square end cap 50x70 Rubber bumper 38x38 Handle ￠25x120 Open rubber shoes 90x90 Rubber shoes 90x90 Iron busing ￠12 Bearing 6004 Spring knob...
  • Page 5 4. ASSEMBLY INSTRUCTIONS Before setting up, unpack the carton and place all the parts on the floor. Carefully remove all packing material and check each part with the manual. Remember some parts are pre-fitted to larger components. Important: Assemble with all nuts and bolts loose at first and only tighten after completing all the assembly sets.
  • Page 6 Step 2 b. Attach Seat cushion (7) to Seat cushion plate (3) using: Hex bolt M8x20 (25) Big washer ∅8 (21) c. Attach Seat cushion plate (30) to Main frame (1) using: Iron busing ∅12 (14) Hex bolt M12x105 (29) Washer ∅12 (22) Lock nut M12 (24) d.
  • Page 7 Step 3 a. Attach Support axis (6) and Bearing (15) to Main frame (1). b. Attach Back cushion tube (4) to Support axis (6) and Main frame (1) using: Washer ∅12 (22) Hex bolt M12x25 (27) a. Attach Back cushion (8) to Back cushion tube (4) using: Hex bolt M8x20 (25) Big washer ∅8 (21)
  • Page 8 5. WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
