Cortex Multi Gym SM25 User Manual page 17

74
85
83

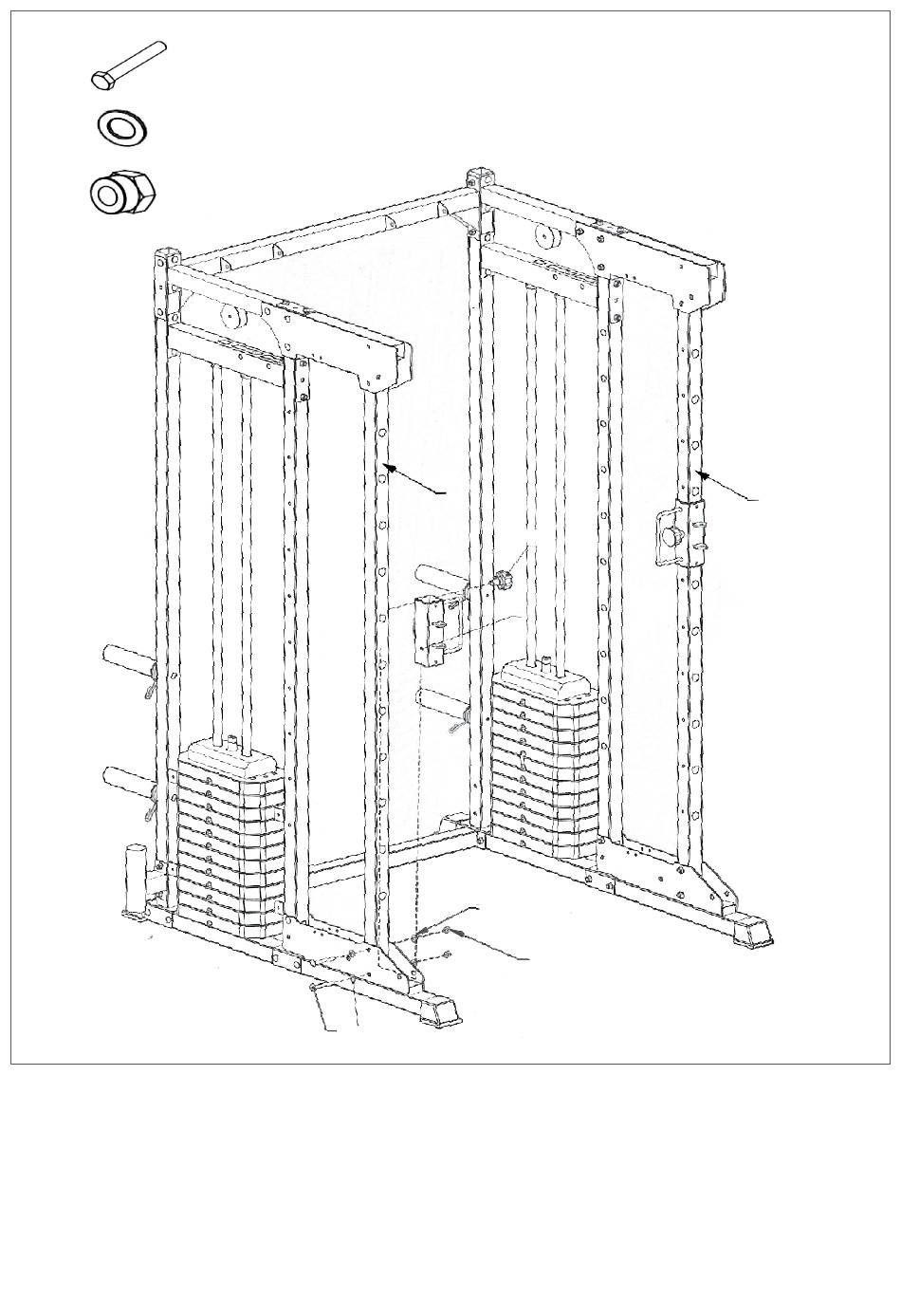

STEP 10
1. Slide part 30 into part 9 post as pictured and
secure with part 63.
2. Repeat for the other side.
3. Place part 9 into part 18 and 17 as pictured.
M10 x 70mm 4pcs
Φ 10
8pcs
M10 4pcs
74
9
63
30
85
83
85
4. Secure part 17 to part 9 using:
- 2x part 74
- 2x part 83
5. Repeat step 4 on the other side.
9
- 4x part 85
ASSEMBLY INSTRUCTIONS | 17
