Cortex Multi Gym SM25 User Manual page 15

22
83
85
85
85
85
83

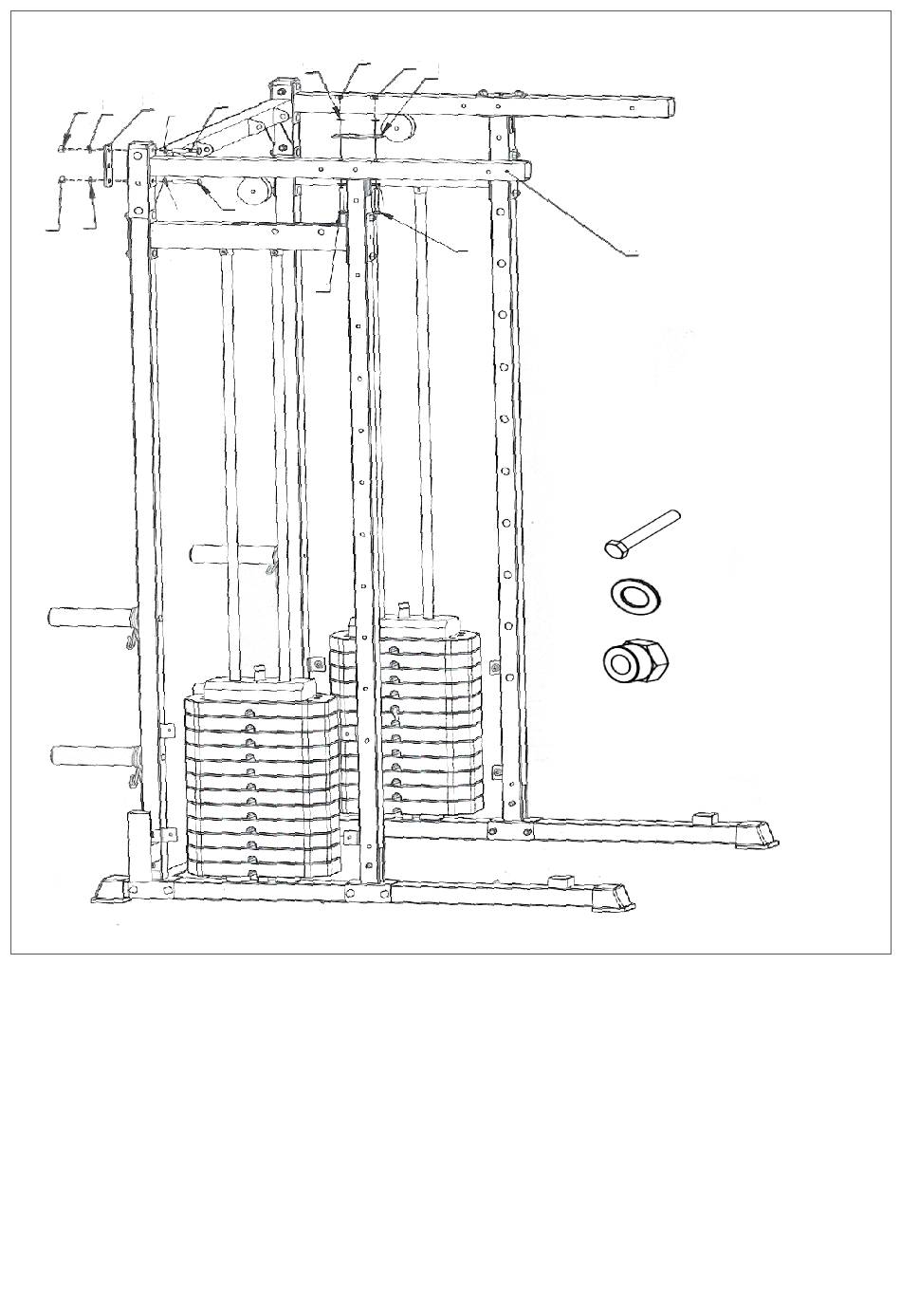

STEP 8
1. Secure part 11 into part 7 using:
- 1x part 22 - 2x part 74
- 4x part 85 - 2x part 83
2. Secure part 11 to part 4 using:
- 1x part 22 - 2x part 74
- 4x part 85 - 2x part 83
3. Repeat steps 1 and 2 for the other side.
83
85
74
74
85
74
83
22
74
74
85
83
11
M10 x 70mm
Φ 10
M10
ASSEMBLY INSTRUCTIONS |
8pcs
16pcs
8pcs
15
