Cortex Multi Gym SM25 User Manual page 23

79 M10 x 15mm
Φ 10
85

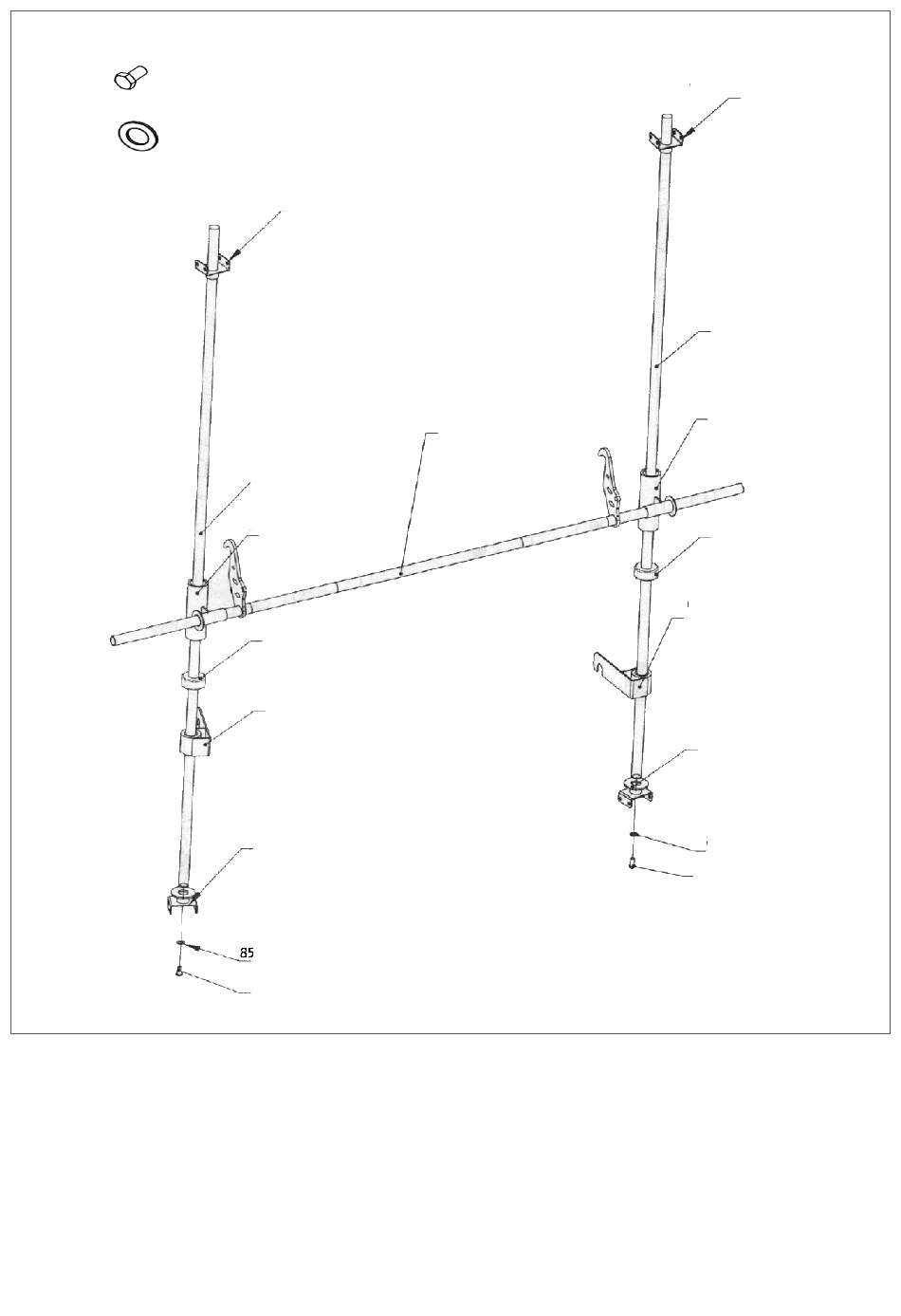

STEP 15
1. Place part 26 tube into 2x part 27.
2. Place the 2x part 27 onto the 2x part 90 as pictured.
3. Place 2x part 92 as pictured on part 90.
2pcs
2pcs
92
90
27
47
28
91
79
26
4. Place 2x part 47 onto part 90.
5. Place 2x part 28 onto part 90.
6. Place 2x part 91 onto 2x part 90 and secure using:
- 2x part 85
92
90
27
47
29
91
85
79
- 2x part 79
ASSEMBLY INSTRUCTIONS | 23
