Cortex Multi Gym SM25 User Manual page 24

81 M8 x 80mm
Φ 8
86
84 M8
STEP 16

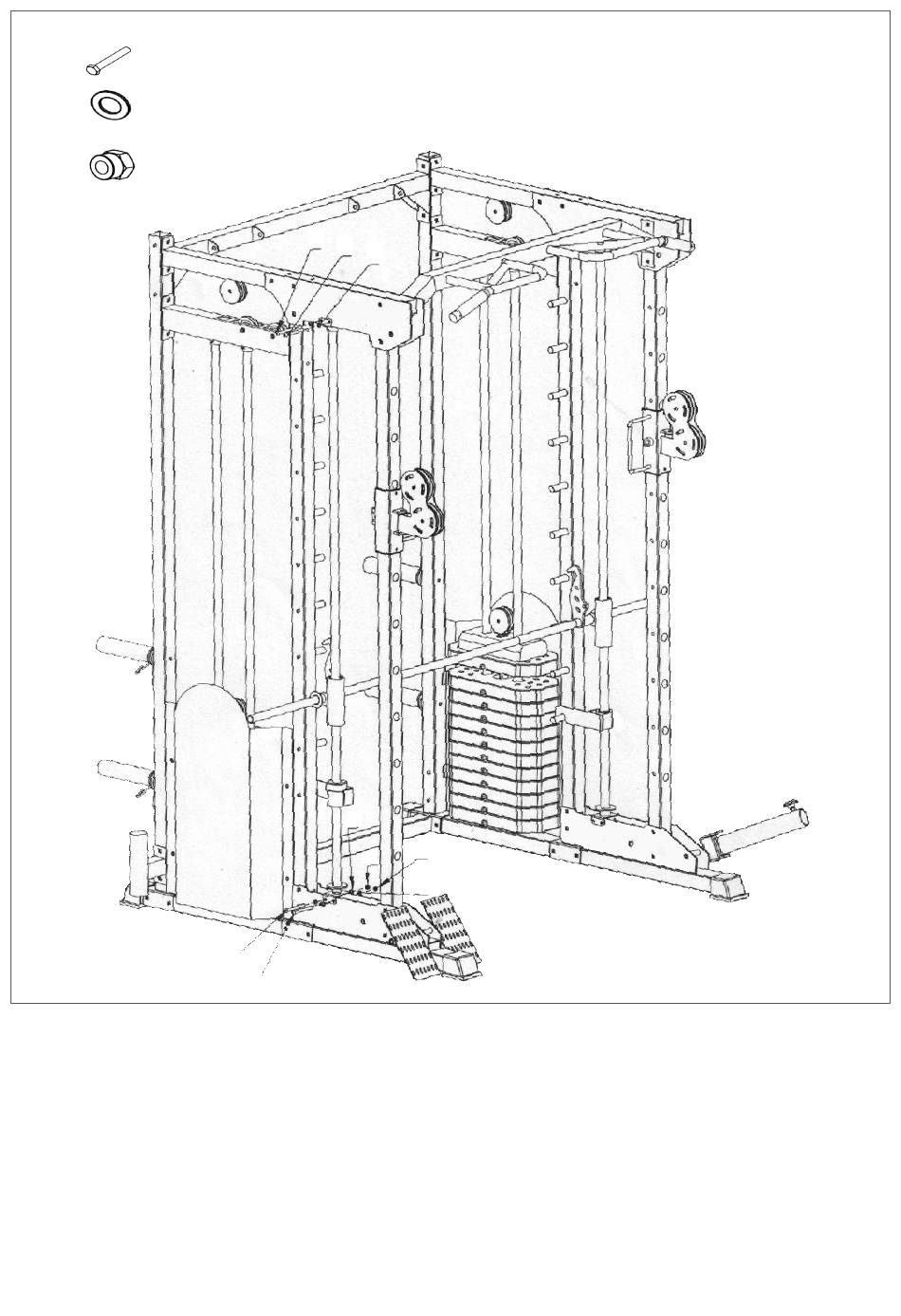

1. Secure the Smith bar you just assembled onto the rack part 17 and 18 using:
- 8x part 81
- 16x part 86
- 8x part 84
Ensure to fully tighten all screws.
24 | ASSEMBLY INSTRUCTIONS
8pcs
16pcs
8pcs
81
81
86
86
84
81
81
84
86
