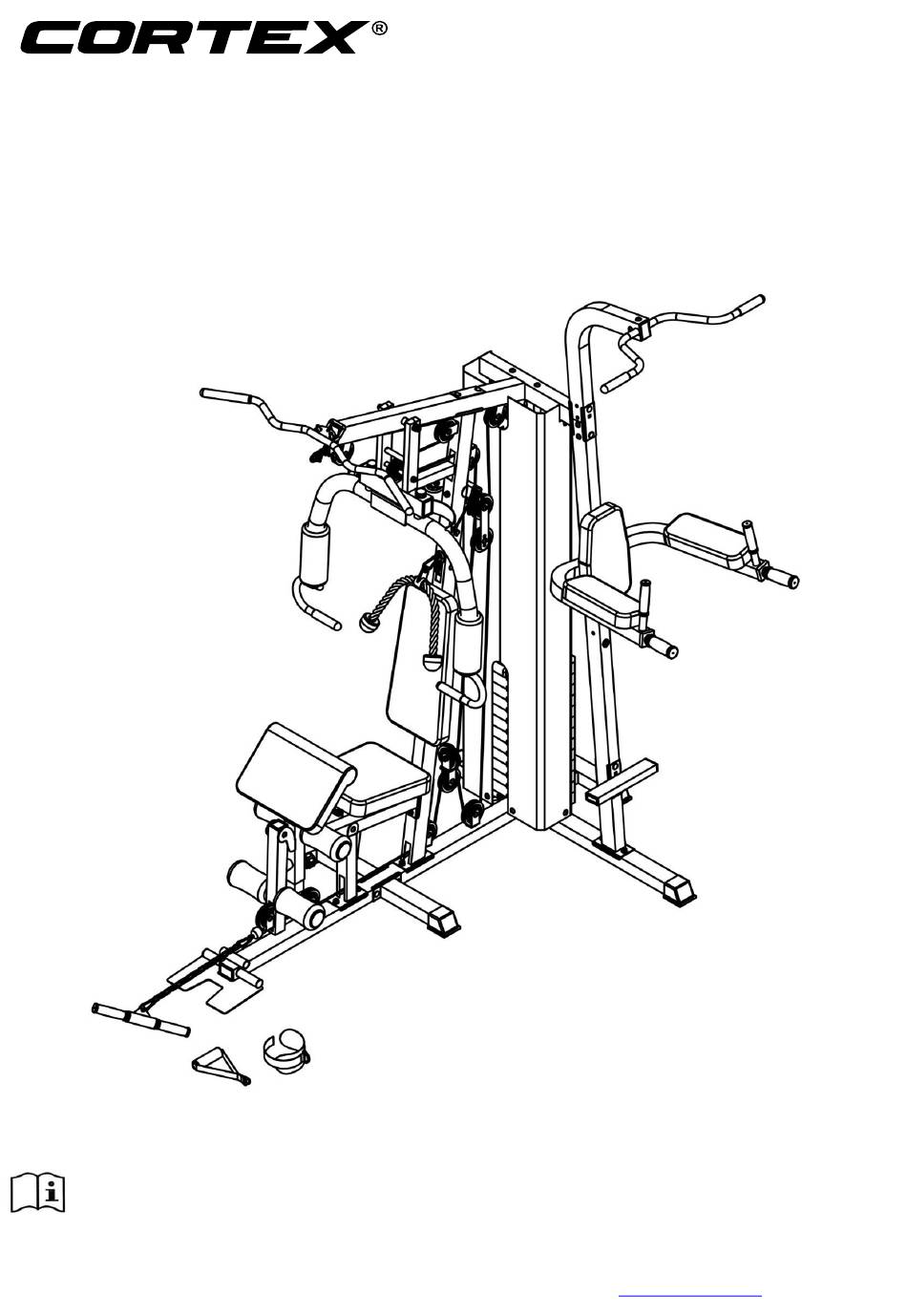

GS6 MULTI STATION OWNER'S
MANUAL

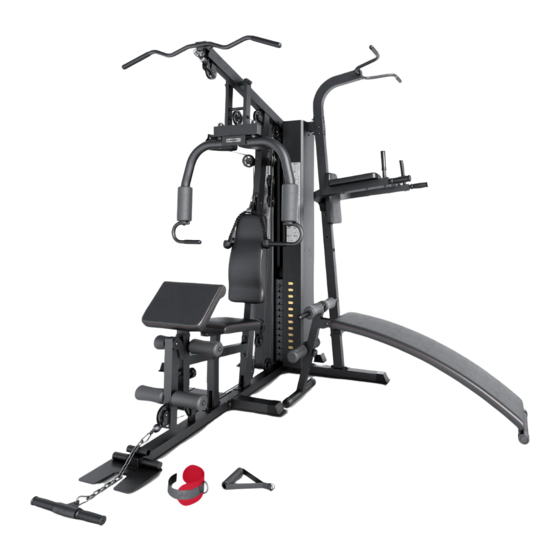

Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for future
reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at
www.lifespanfitness.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cortex GS6

Summary of Contents for Cortex GS6

  • Page 1 GS6 MULTI STATION OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at...
  • Page 2 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PARTS LIST ASSEMBLY INSTRUCTIONS WARRANTY GS6 MULTI STATION...

  • Page 3: Important Safety Instructions

    Do not place any sharp objects around the machine.  Disabled person should not use the machine without a qualified person or physician in attendance.  Never operate the machine if the machine is not functioning properly.  A spotter is recommended during exercise. GS6 MULTI STATION...
  • Page 4 2. PARTS LIST GS6 MULTI STATION...
  • Page 5 GS6 MULTI STATION...
  • Page 6 GS6 MULTI STATION...
  • Page 7 Arm Pad Parallel Support Hex Bolt M8x20 Lat Bar Tube Cover Left Support Tube Leg Developer Right Support Tube Vertical Tube Bar Tube Plug 口 50 Axle Bushing Pipe Grip Bummper Φ45xΦ35x33 Hex Bolt M10x20 Arm Cushion GS6 MULTI STATION...
  • Page 8 Foam Tube Pull Handle Foam Back Pad Foam Cover Hex Bolt M8x90 Back Pad Hex Bolt M8x65 Hex Bolt M8x85 L-Pin Nut M12 Bummper Φ61xΦ58xΦ26x25 Weight Plates Hex Bolt M12x75 Selector Rod GS6 MULTI STATION...

  • Page 9: Support Tube 1

    2x Aircraft Nut M10mm (#20), 2x Carriage Bolt M10*70mm (#32). Attach the Left and Right Base Tube (#96) to the Front Base Frame (#89). Secure it with 2x Carriage Bolt M10*90mm (#31), 4x Washer Φ10 (#14) and 2x Aircraft Nut GS6 MULTI STATION...
  • Page 10 2x Allen Bolt M10*25mm (#30) and 2x Washer Φ10 (#14). 4. Secure the Upper Frame (#90) to the Front Vertical Frame (#2) with 2x Carriage Bolt M10*90mm (#31), 2x Washer Φ10 (#14), Bracket (#22) and 2x Aircraft Nut M10mm (#22). GS6 MULTI STATION...

  • Page 11: Front Press Base 1

    Aircraft Nut M10mm (#20). Attach the pulley bracket (#70) to the (#68), secure with Hex Bolt M10x65 (#67), Washer (#14) and Aircraft Nut M10mm (#20). 5. Attach the Back pad (#53) to the Front Vertical Frame (#2), secure with Hex Bolt M8x85 (#54), Φ8Washer (#39). GS6 MULTI STATION...
  • Page 12 3. Attach the Leg Developer (#45) to the Main Seat Support (#4). Secure it with a Leg Developer Axle (#47), Allen Bolt M10*20mm (#49) and Washer Φ10 (#14). 4. Attach Lock Knob (#34) to Main Seat Support (#4). Insert the Tube (#41). GS6 MULTI STATION...
  • Page 13 (#4), push Foam Rolls (#51) onto the Foam Tubes (#50) from both ends. Plug the 4x Foam Roll End Caps (#52) onto the ends. 4. Attach the Foot Plate (#93) to the Front Base Frame (#89), secure with Tube (#94), then plug the two Caps (#95). GS6 MULTI STATION...

  • Page 14: Hex Bolt M10X175 1

    1. Feed the Lat Cable (3450mm)(#75) through 7x Pulley (#63) as shown in image following, secure with 12 Washers Φ10 (#14), 6 Hex BoltsM10×45 (#59), 1 Hex Bolt M10x175(#21), 7 Nut M10 (#20), 2 Pulley plate (#65). Connect the end which is bolt to the (#57). GS6 MULTI STATION...
  • Page 15 1. Connect the Butterfly Cable (3020mm) (#76) to Right Butterfly (#16) and Left Butterfly (#15) as shown in image, secure with 1 Pulley Set(#64), 3 Pulley (#63), 3 Hex Bolts M10x45 (#59), 6 Φ10 washers (#14), 3 Nuts(#20). GS6 MULTI STATION...
  • Page 16 STEP 8 1. Fix the Triceps Cable (4040mm) (#74) as shown in image, secure with 2 Pulley Set(#66), 8 Pulley (#63), 7 Hex Bolts M10x45 (#59), 1 Hex Bolt M10x65 (#67), 16 Φ10 washers (#14), 8 Nuts(#20). GS6 MULTI STATION...
  • Page 17 2. Attach Lat Bar (#80) to the Lat Cable (3450mm) (#75) though 6 Chains (#34) with 2 C-clip (#77). 3. Attach Small Bar Set (#80) to the Triceps Cable (4040mm) (#74) though 15 Chains (#82) with 2 C- clip (#77). GS6 MULTI STATION...

  • Page 18: Hex Bolt M10X25 6

    (#109), 2x Washer Ф8 (#39). 5. Attach the Foot Stand (#97) to the Vertical Frame (#91). Secure it with 2x Carriage Bolt M10 x 90mm (#31), bracket (#22), 2x Washer Φ10 (#14), 2x Aircraft Nuts M10 (#20). GS6 MULTI STATION...

  • Page 19: Base Frame

    3. Push 4x Foam Rolls (#8) onto Long Foam Tube (#7) and Adjustable Position Foam Tube (#10). 4. Put Plus (#9) onto the two ends of Long Foam Tube (#7) and Adjustable Positional Foam Tube (#10). 5. Check that all the parts is tight. GS6 MULTI STATION...
  • Page 20 For all warranty or support related enquiries an email must be sent to lodge a support case in our system. Head Office and Customer Service: Global Fitness and Leisure Pty Ltd 17 Fordson Rd Campbellfield VIC, 3061 Australia PH: 03 9357 2166 GS6 MULTI STATION...
